OSL-3500 Series LED Surgical Lighting Systems - OSL-3535 / OSL-3533 / OSL-3555 / OSL-3505 / OSL-3503
AADCO Medical

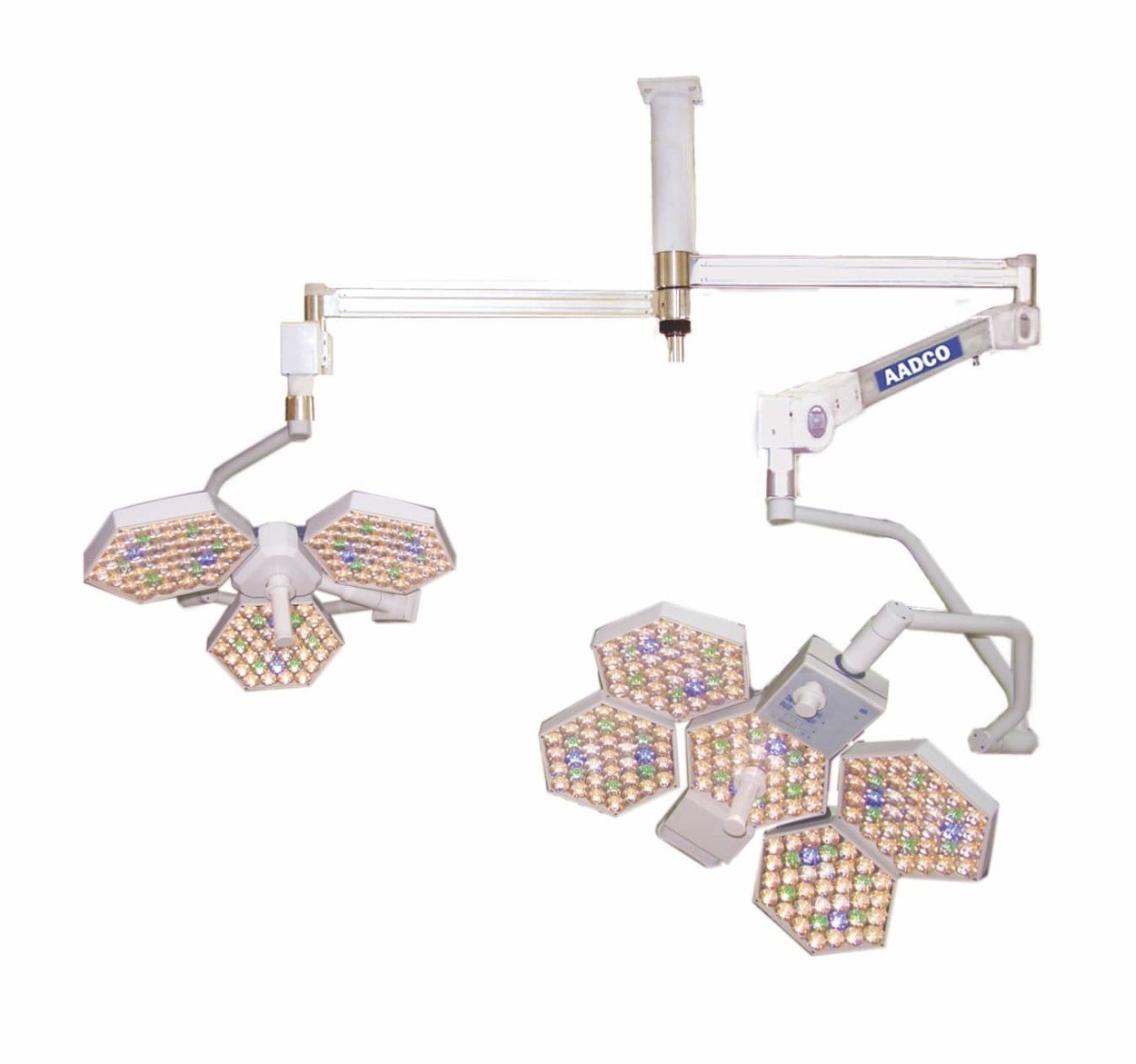

The OSL-3500 LED surgical lighting family includes overhead suspension and selectable lamp-head combinations.

OSL-3500 Series LED Surgical Lighting Systems
Click the image to enlarge it.

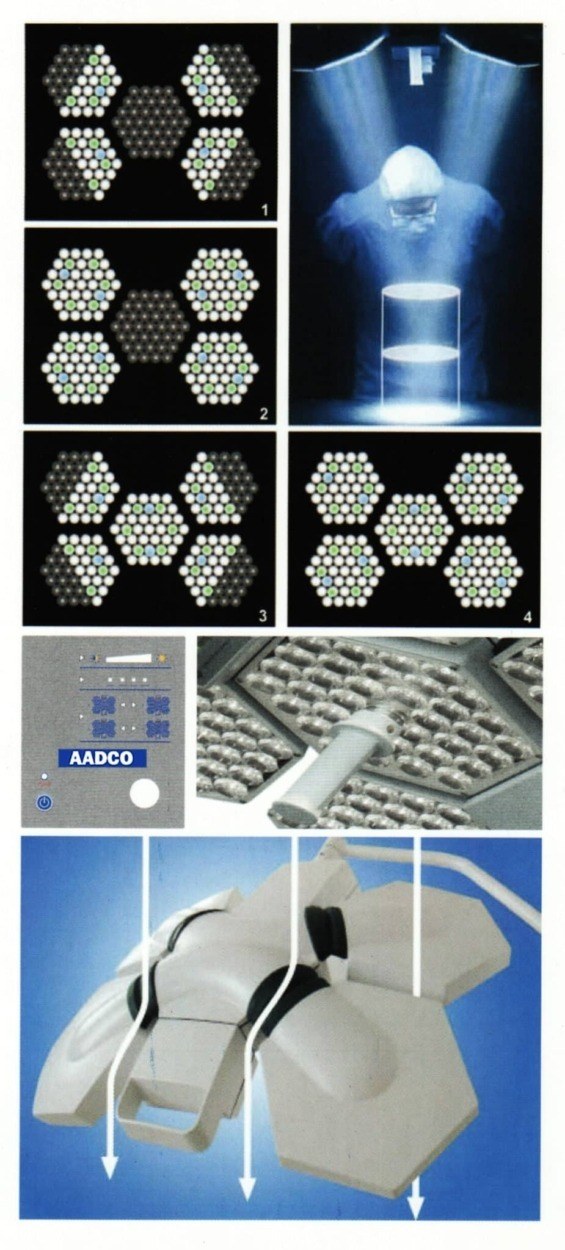

  • Adjustable color temperature and overlapping light fields support surgical and deep-cavity illumination.
  • Sterile controls provide on/off, dimming and shadow-management functions.
  • Five system configurations combine 130,000-lux triple heads and 160,000-lux five heads.
Item / specificationDetails
Model / item numbersOSL-3535 / OSL-3533 / OSL-3555 / OSL-3505 / OSL-3503
System modelIncluded lamp heads
OSL-3535One OSPL-3 triple head plus one OSPL-5 five head
OSL-3533Two OSPL-3 triple heads
OSL-3555Two OSPL-5 five heads
OSL-3505One OSPL-5 five head
OSL-3503One OSPL-3 triple head

OSPL-5 and OSPL-3 LED Surgical Lamp Heads - OSPL-3 / OSPL-5

OSPL-3 and OSPL-5 lamp heads are separately listed for the OSL-3500 lighting family.

OSPL-5 and OSPL-3 LED Surgical Lamp Heads
Click the image to enlarge it.
  • OSPL-3: triple-head configuration, at least 130,000 lux at one meter.
  • OSPL-5: five-head configuration, at least 160,000 lux at one meter.
  • Both offer 3500, 4000, 4500 and 5000 K color temperatures; 200 to 350 mm spots; and color rendering index of at least 96.
Item / specificationDetails
Model / item numbersOSPL-3 / OSPL-5
SPECIFICATIONOSPL-3 SPECIFICATIONSOSPL-5 SPECIFICATIONS
Light intensity at one meter≥130,000 Lux≥ 160,000 Lux
Color Temperature Adjustment3,500K/4,000K/4,500K/5,000K3,500K/4,000K/4,500K/5,000K
Spot Diameter200mm-350mm200mm-350mm
Color Rendering Index≥96≥ 96
Total Irradiance460W/m2510W/m2
Service life of Illuminant30 h30 h
Six-dimensional Joint360°360°
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
