Angiographic CT Head Phantom ACS Kyoto Kagaku - 41309-100
Kyoto Kagaku's best-selling CT head phantom

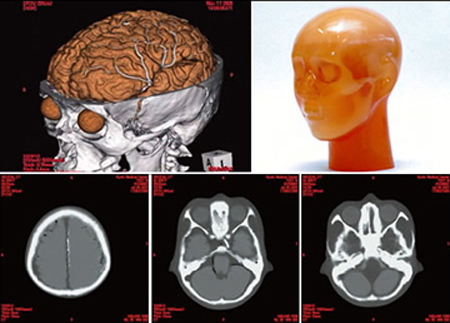

The ACS head phantom is designed for image evaluation in CT angiography scanning and can be used as an educational tool for medical image interpretation. The head phantom includes a synthetic skull, cervical vertebrae (C1-C7), brain and arteries, along with arteries with contrast medium embedded in the left half of the head.
The anterior cerebral artery and middle cerebral artery are three-dimensionally disposed. Diameters of simulated arteries range from approx. 0.5 mm to 4.0 mm.
A new variation added: Head Phantom for MECT, which contains arteries of innovative water equivalent material
Features:- Three variations of head phantoms with different features for arteries to meet your requirements:
- CT
- Angiography
- Multienergy CT
- Contrast-enhanced left cerebral arteries are three dimensionally embedded in the brain
- CT
- Angiography
- Multienergy CT
- 1 head phantom
- 1 storage case
- 1 set of sample X-ray data (DVD)
- manual
- W46 x D31 x H32cm
- W18.1 x D12.2 x H12.6in
- 5.25kg
- 11.57lb
- 8kg
- 17.6lb
- Soft tissue: urethane-based resin
- Cervical vertebrae (C1–C7): epoxy resin
- A synthetic skull
- Soft tissue
- Simulated arteries with contrast medium
- Left anterior cerebral arteries
- Left middle cerebral arteries
- Internal carotid artery
- Diameters of simulated 0.5–4.0 mm
- *Arrangement of arteries are the same for all three types.
| Soft Tissue | Cerebrum | Mesencephalon | Cerebellum | Cerebral Ventricies | Eye Balls | |
| Houndsfield # | 0 | 40 | 40 | 40 | 10 | 20 |
| Models and Ordering | |
| 41309-100 | ACS for CT |
| 41309-200 | ACS for Plain Radiography |
| 41309-300 | CT head for MECT (Multienergy CT) |
