Lung Cancer Screening CT Phantom Kyoto Kagaku LSCT0001
LSCT0001 is a CT phantom developed to facilitate optimizing the radiation dose and other scanning conditions for Lung Cancer Screening CT examination with Helical CT or MDCT, which is aiming at early detection of lung cancers. As the screening is usually done on healthy people, the necessity of minimizing the exposure while maximizing the image quality is considered to be particularly high.
The phantom is designed to set conditions for detection of small early lung cancers such as GGA, which are difficult to be found by plain X-ray. Anthropologic structure of the phantom provides life-like images allowing operators visual evaluation, while quantitative evaluation on radiation dose and density curve of the image can be done stimulatory with a single scanning.
|
|
Set includes:
Phantom:

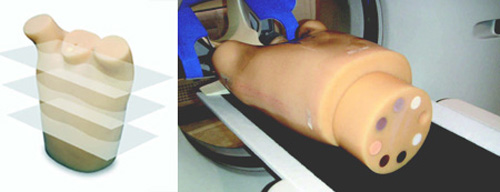

1 Chest Phantom: life size torso with arm up position
---Internal structures:
Bones
Simulated tumors on sections of three lung area
Apical portion of the lungs
Bifurcation of the trachea
Base of lungs
Dose meter hole (13 mm dia., on the central axis of the phantom)
1 8-step linearity phantom
8 steps of 30mm dia. density samples are embedded
1 adjustment base
Specifications:
Chest Phantom
Measurement around the chest 93 cm
Height 45 cm
Weight approx.18 kg
Linearity phantom
Diameter 200mm
Height 100 mm
