Dynamic Heart and Lung Phantom - PH-48 - Kyoto Kagaku
The motion of diaphragm and tumor, and the realistic heart motions provide various solutions for clinical research
Features
- The phantom represents movement of the heart, lungs, and pulmonary nodule
- The pulmonary nodule and diaphragm move independently with the respiratory cycle
- Three-dimensional movement of the pulmonary nodule (linearly and rotationally)
- Motion disc represents respiratory movement of the abdomen
- The elastic heart represents systolic and diastolic motion
Training skills / Applications
- Respiratory gating CT
- Dosimetry
- Radiation therapy
Case / Pathology
- Pulmonary nodule
- Stenosis of coronary arteries

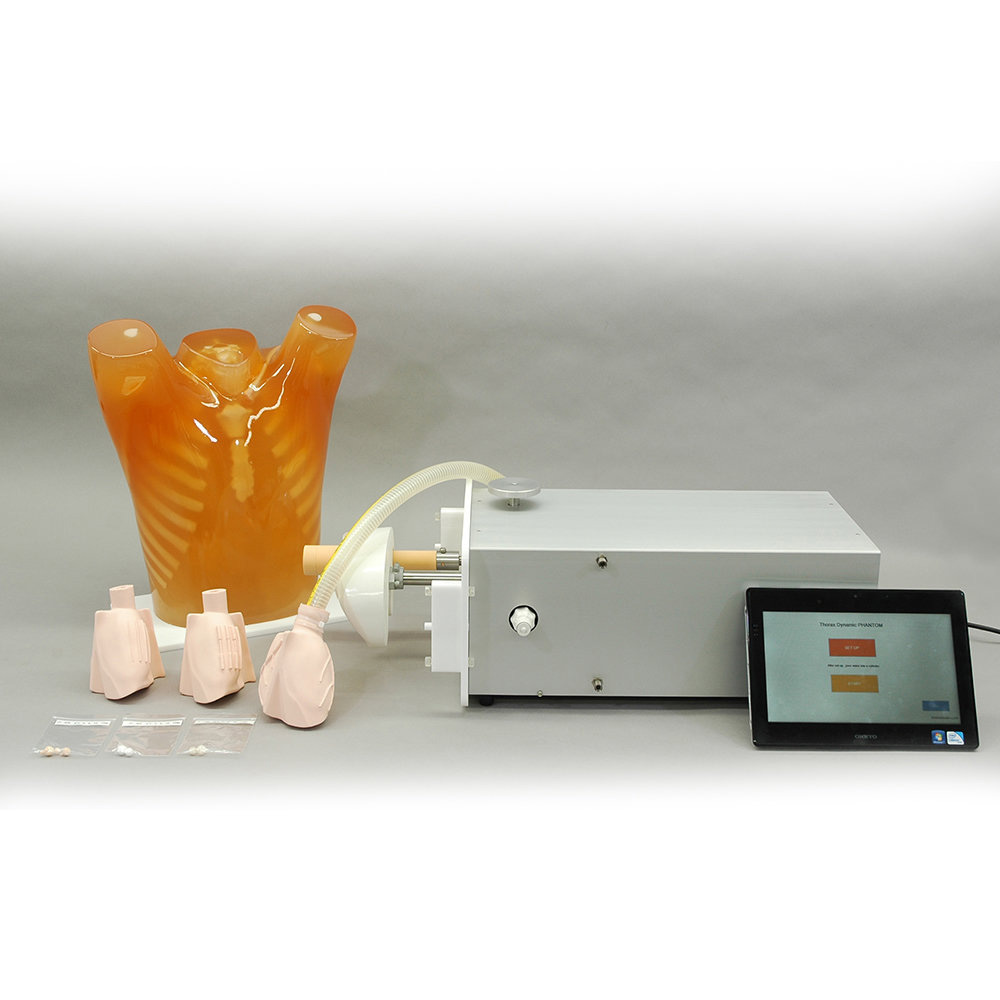

Set includes

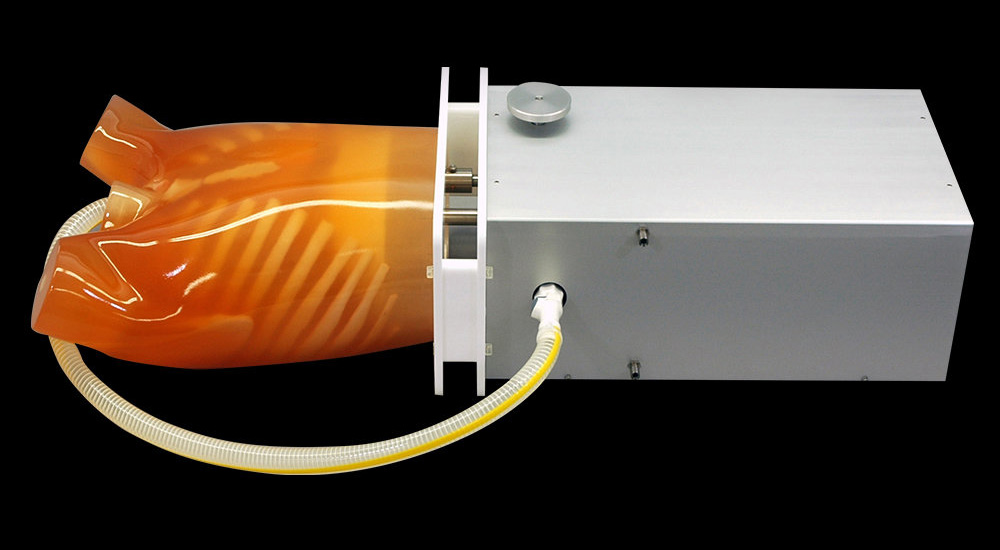

- 1 drive unit
- 1 nodule rotation unit
- 1 diaphragm block
- 1 chest phantom
- 3 types of heart unit
- 1 set of simulated tumors (15 types)
- 1 tablet PC
- 1 storage case
Packing size (approx.)
- W103xD70xH37 cm
- W40.6xD27.6xH14.7 in
Power source
Materials
- Chest phantom: Urethan resin
ANATOMY
- Synthetic bones of the chest
- Heart with coronary artery
- Diaphragm
CONTROLLABLE PARAMETERS
- Heart rate: 30-120 times/min
- Ejection volume: 60, 70, 80, 90, 100ml ef rate: 30%, 35%, 40%, 45%, 50%, 55%, 60%
- Respiratory rate: 6-24 cycles/min
- Linear movement of nodule unit: 8-64mm/ 0-1.5 in
- Rotation range of nodule unit: 50-70 degrees
Other features

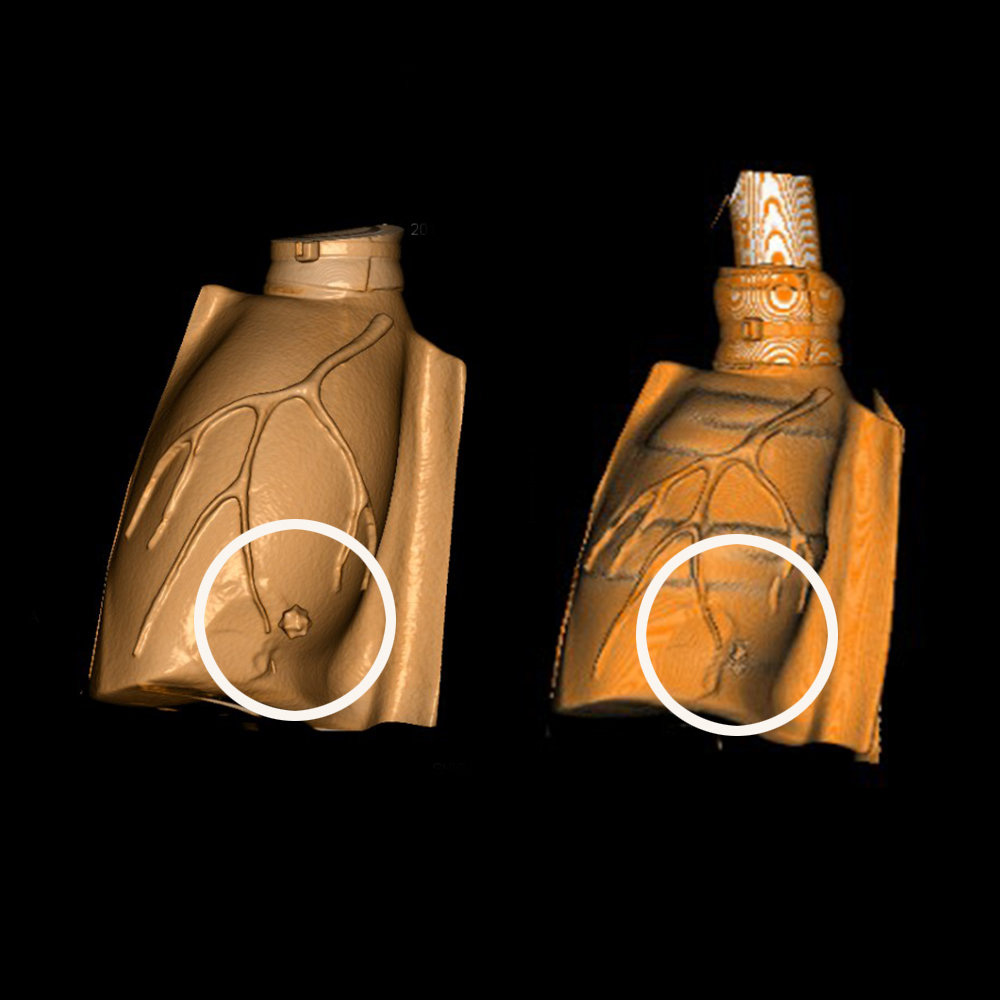

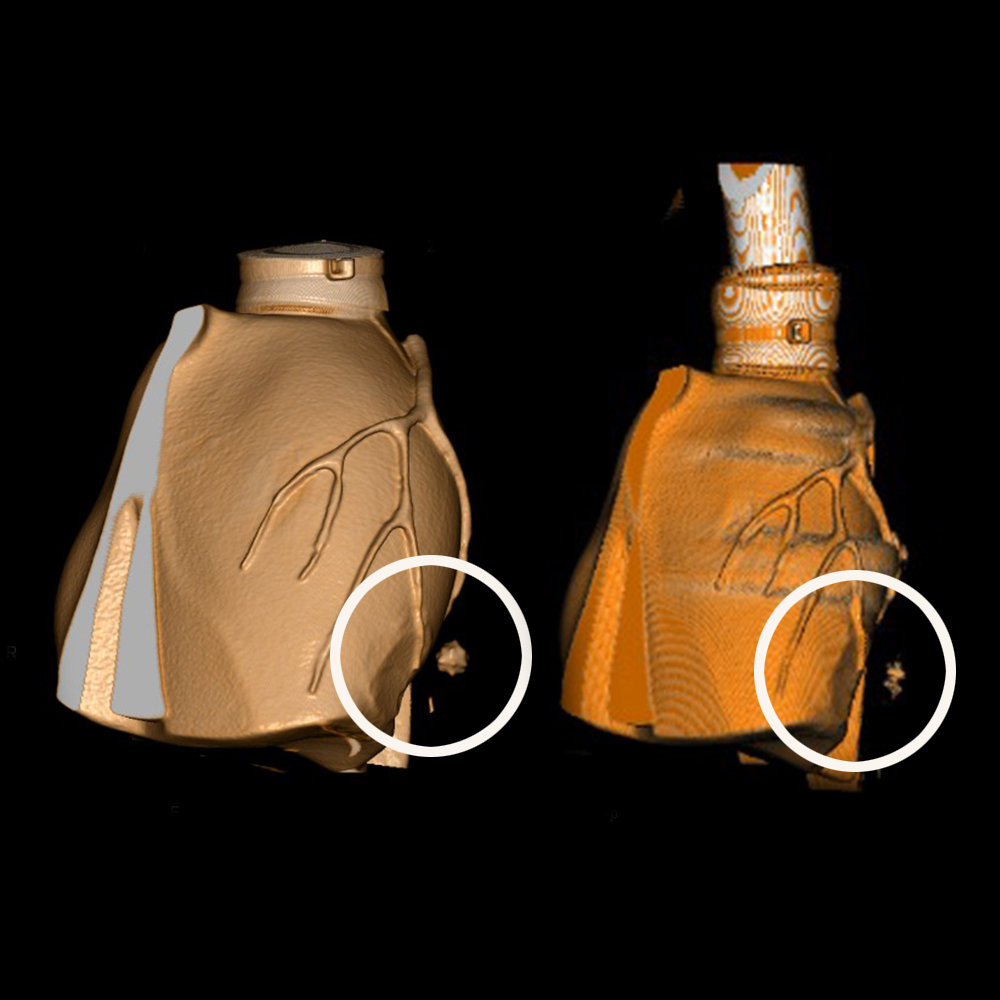

- The coronary arteries including stenotic examples are shown
- The phantom can be connected to ECG for ECG gating
CE certified/CE Certification?
