Whole Body Phantom Kyoto Kagaku PBU-50
Use for X-Ray training, disarticulates into 10 phantoms
Available in Semi-Transparant and Opaque

Whole Body Phantom Kyoto Kagaku PBU-50

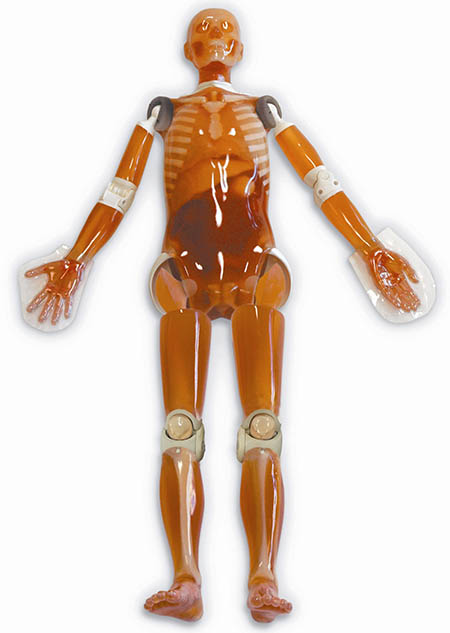

Improved PBU Knee Design
Improved Knee Design

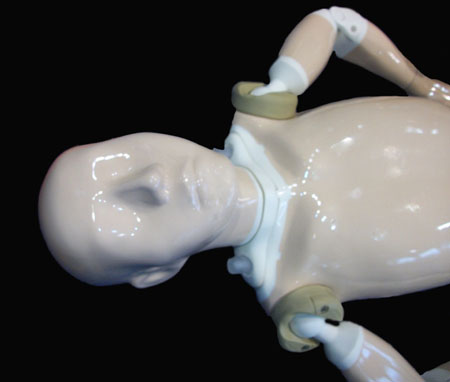

Whole Body Phantom Kyoto Kagaku PBU-50 Opaque
PBU-50 Opaque

The Whole body phantom PBU-50 is a life-size, full body anthropomorphic phantom with a state-of-the-art synthetic skeleton, lungs, liver, mediastinum and kidneys embedded in Kyoto Kagaku original soft tissue substitute. Movable joints allow basic positioning for plain X-ray and training/research applications can be enriched by disassembling the phantom into 10 individual parts (head, limbs and trunk). There are no metal parts or liquid structures. Available in Semi-transparent.

Features

Patient positioning:

Right shoulder rotates side ways, abducting to a horizontal position. Left shoulder rotates forward, up to a horizontal position. Elbows bend inward to approx. 90 degrees. Hip joints rotate forward up to 90 degrees, then rotate outward up to 45 degrees, respectively.
Knees bend to approx. 90 degrees.

Anatomy:
PBU-50 laying down




Original phantom materials:
Radiology absorption approximate to human body.

Materials and features:
Soft tissue and organs: Urethane base resin (SZ-50)
Synthetic bones: Epoxy base resin
Joint attachments: Epoxy, urethane with carbon fiber
Screws: Polycarbonate

Prolong the life of your PBU

Soft tissue (SZ-50) material

Material Density g/cm3 Effective Atomic Number Electron Density x10~23e/g Elemental Composition (wt%)
H C N O
Water 1.000 7.417 3.343 11.19     88.81
SZ-50 1.061 6.14 3.258 8.41 72.25 4.61 14.73


Radiographic Techniques for PBU-50
Region Voltage Current Time Distance
Front of Chest High Voltage 120kv 100mA 0.022s 200cm P(-)
Front of Chest Low Voltage 70kv 100mA 0.140s 200cm Lith(+)
Side of Chest High Voltage 120kv 200mA 0.040s 200cm P(-)
Front of Abdomen 75kv 320mA 0.125s 150cm
Front of Head 75kv 320mA 0.071s 120cm
Side of Head 75kv 320mA 0.071s 120cm
Front of Brachium 55kv 160mA 0.063s 120cm
Front of  Antebrachium 50kv 100mA 0.036s 120cm
Front of Femur 60kv 200mA 0.071s 120cm
Front of Curs 55kv 160mA 0.071s 120cm
Kneecap 55kv 160mA 0.040s 120cm
Hand 48kv 100mA 0.045s 120cm

Specifications


Set includes: Phantom size: approx. 165 cm height, 65 inches
Phantom weight: approx. 50 kg, 110 lbs
Width of chest at thickest spot: 24 cm, 9.5 in
Width of chest at thickest spot + arms: 49 cm, 19 in
Thickness of chest front to back: 19 cm, 7.5 in
Packing size: approx. 85 x 60 x 44 cm
Packing weight: approx. 80 kg, 177 lbs
Storage Temperature Range: 20-25°C (68-77°F)
Avoid Storing in Direct Sunlight or High Humidity

PBU Image PBU-50 Separated

Click For More X-Ray Images

PBU-50 Components
PH-2B -4R Whole Body Phantom
Forearm-hand Right
Whole Body Phantom Forearm-hand Right
PH-2B -4L Whole Body Phantom
Forearm-hand Left
Whole Body Phantom Forearm-hand Left
PH-2B -3R Whole Body Phantom Arm Right Whole Body Phantom Arm Right
PH-2B -3L Whole Body Phantom Arm Left Whole Body Phantom Arm Left
PH-2B -5R Whole Body Phantom Thigh Right Whole Body Phantom Thigh Right
PH-2B -5L Whole Body Phantom Thigh Left Whole Body Phantom Thigh Left
PH-2B -6R Whole Body Phantom Leg/Foot Right Whole Body Phantom Leg/Foot Right
PH-2B -6L Whole Body Phantom Leg/Foot Left Whole Body Phantom Leg/Foot Left
PH-2 -2 Whole Body Phantom PBU-50 Trunk Whole Body Phantom Trunk
PH-2 -1 Whole Body PhantomPBU-50 Head & Stand Whole Body Phantom Head & Stand
Optional Accessories
41350-200-17 BMI 32 Plates
41350-200-18 BMI 40 Plates
41350-000-11 Fractured Hand/Forearm Phantom

Set includes:
  • 1 fractured hand/forearm phantom
Packing size (approx.):
  • W47 x D35 x H24cm / W18.5 x D13.8 x H9.4inch
Materials:
  • Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31)

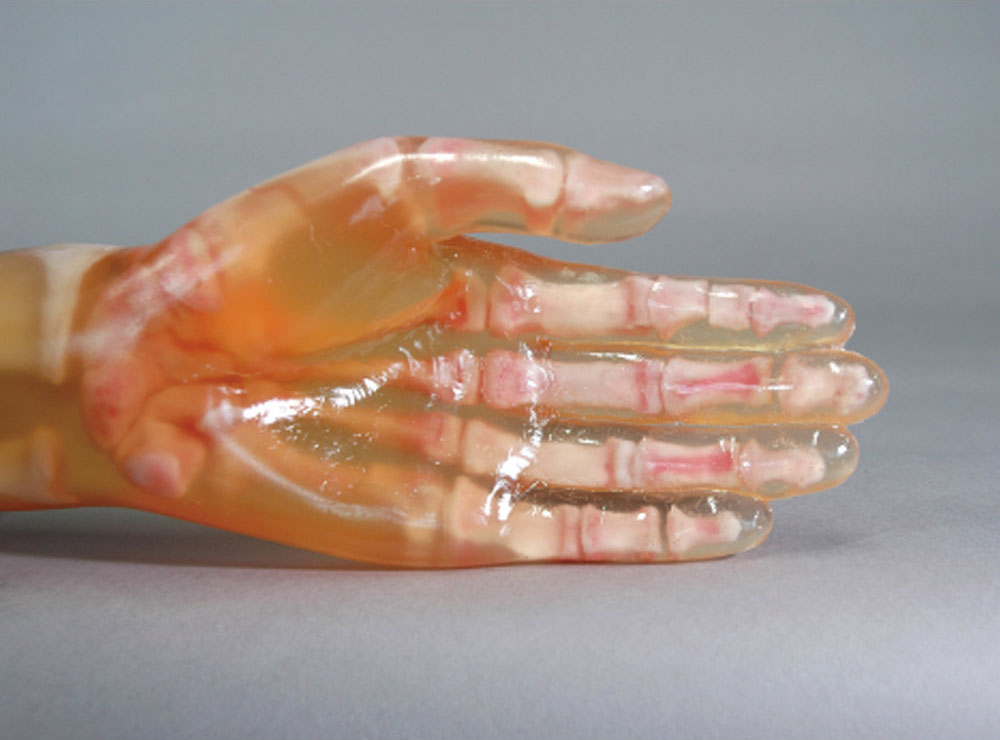

Fractured hand and forearm 1

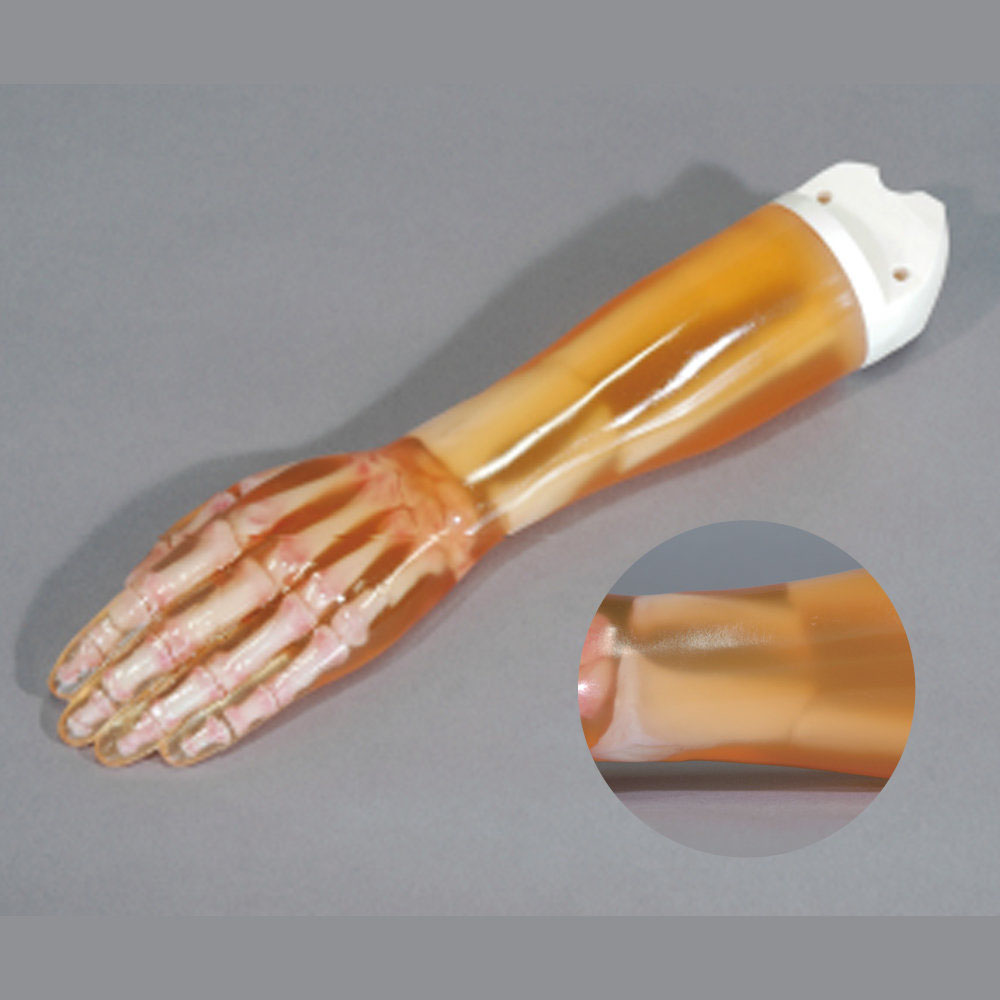

Fractured hand and forearm 2

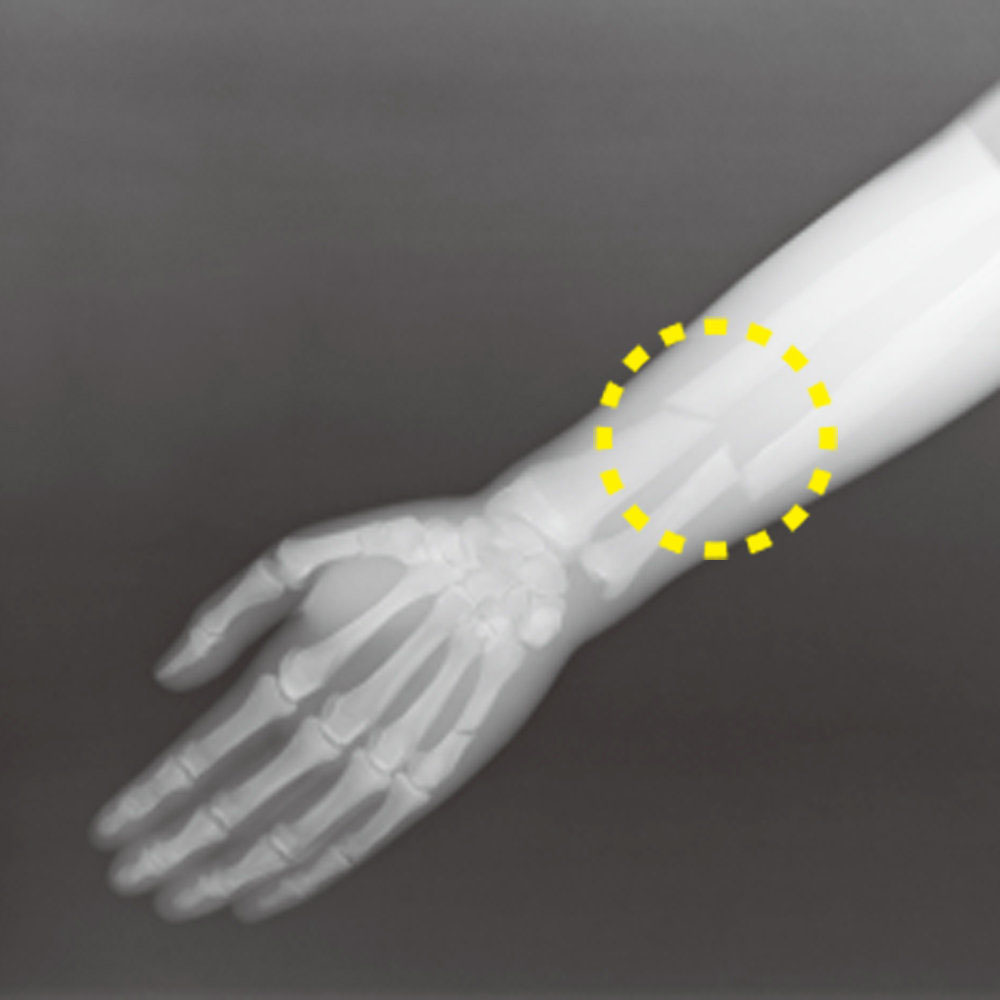

Fractured hand and forearm x-ray 1

Fractured hand and forearm x-ray 2
