Whole Body Phantom Kyoto Kagaku PBU-60
Use for CT & X-Ray training, disarticulates into 10 phantoms
Available in Semi-Transparant and Opaque

Whole Body Phantom Kyoto Kagaku PBU-60 CT

PBU-60 Opaque

Improved Knee Design

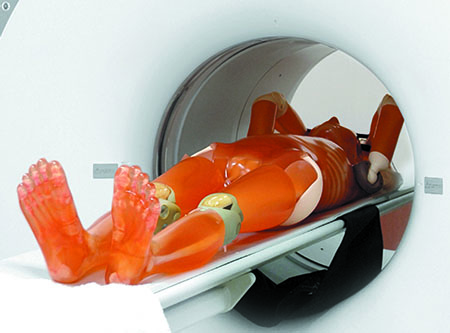

A unique, life size whole body phantom for CT provides a variety of educational application as well as visual evaluation in finding out optimal scanning conditions. The phantom can also be used for plain X-ray, showing life-like images. No metal parts or liquid structure are used.

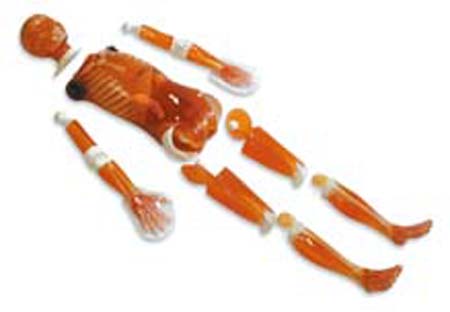

Main joints have close-to human articulation, allowing various positioning for training. The phantom can be disassembled into 10 parts. Improved shoulder joint system enables PBU-60 to take arm-up position. Organs are anatomically correct and have appropriate HU numbers. Available in Semi-transparent.

Features
Patient positioning:
Shoulders: rotate through a full 360 degrees in the sagittal plane, approx. 180 degrees to side-ways.
Hip joints: rotate forward up to approx. 90 degrees, then abduct up to 45 degrees each.
Knees: bend up to approx. 90 degrees.

Internal Organs:
Head and Trunk

Synthetic skull	Liver with portal and hepatic veins
Cervical vertebrae	Pancreas
Brain	Kidneys
Vertebrae	Gallbladder
Clavicles	Spleen
Ribs	Aorta
Sternum	Cava
Scapula	Ureter
Coxal bones	Urinary bladder
Femurs	Prostate
Lungs with pulmonary vessels	Rectum
Trachea	Sigmond Colon

Elbows: bend up to approx. 90 degrees.

The phantom can be held in the supine frog leg position.

The limbs and head are detachable at joints and neck for wider applications.

The head supporter facilitates various head positions.

Original phantom materials:
Radiology absorption and Hounsfield number approximate to human body.

Materials and features:
Soft tissue and organs: Approximates a mix of adipose and muscles. Urethane base resin (SZ-50)
Synthetic bones: Epoxy base resin
Joint attachments: Epoxy, urethane with carbon fiber
Screws: Polycarbonate

Prolong the life of your PBU

Download the PBU-60 Instruction Manual (PDF)

Soft tissue (SZ-50) material

Material	Density g/cm³	Effective Atomic Number	Electron Density x10~23e/g	Elemental Composition (wt%)
Material	Density g/cm³	Effective Atomic Number	Electron Density x10~23e/g	H	C	N	O
Water	1.000	7.417	3.343	11.19			88.81
SZ-50	1.061	6.14	3.258	8.41	72.25	4.61	14.73

	Soft tissue	Liver	Kidneys
Houndsfield Number (Approximation)	-7	70	30
Density g/cm3	1.061	1.089	1.075

Radiographic Techniques for PBU-60

Region		Voltage	Current	Time	Distance
Front of Chest	High Voltage	120kv	100mA	0.022s	200cm	P(-)
Front of Chest	Low Voltage	70kv	100mA	0.140s	200cm	Lith(+)
Side of Chest	High Voltage	120kv	200mA	0.040s	200cm	P(-)
Front of Abdomen		75kv	320mA	0.125s	150cm
Front of Head		75kv	320mA	0.071s	120cm
Side of Head		75kv	320mA	0.071s	120cm
Front of Brachium		55kv	160mA	0.063s	120cm
Front of Antebrachium		50kv	100mA	0.036s	120cm
Front of Femur		60kv	200mA	0.071s	120cm
Front of Curs		55kv	160mA	0.071s	120cm
Kneecap		55kv	160mA	0.040s	120cm
Hand		48kv	100mA	0.045s	120cm

Specifications

Set includes:

1 whole body phantom PBU-60
(separable into 10 parts)
Synthetic skull, Cervical vertebrae, Brain, Vertebrae, Clavicles, Ribs, Sternum, Scapula, Coxal bones, Femurs, Lungs with pulmonary vessels, Trachea, liver with portal and hepatic veins, Kidneys, Gallbladder, Spleen, Aorta, Cava, Ureter, Urinary bladder, Prostate, Rectum, Sigmoid Colon are embedded.
1 head supporter
1 set of replacement joint connectors and screws
(1 piece for each)
1 flat head screwdriver
1 set of sample X-ray films

Phantom size: approx. 165 cm height, 65 inches
Phantom weight: approx. 50 kg, 110 lbs
Width of chest at thickest spot: 24 cm, 9.5 in
Width of chest at thickest spot + arms: 49 cm, 19 in
Thickness of chest front to back: 19 cm, 7.5 in
Packing size: approx. 85 x 60 x 44 cm
Packing weight: approx. 80 kg, 177 lbs
Storage Temperature Range: 20-25°C (68-77°F)
Avoid Storing in Direct Sunlight or High Humidity

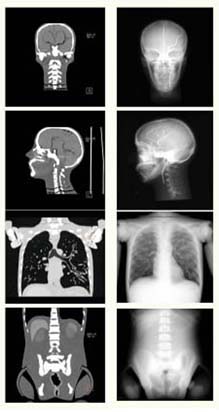

Click For More X-Ray Images Click For More CT Images

PBU-60 Components
PH-2B -4R	Whole Body Phantom Forearm-hand Right
PH-2B -4L	Whole Body Phantom Forearm-hand Left
PH-2B -3R	Whole Body Phantom Arm Right
PH-2B -3L	Whole Body Phantom Arm Left
PH-2B -5R	Whole Body Phantom Thigh Right
PH-2B -5L	Whole Body Phantom Thigh Left
PH-2B -6R	Whole Body Phantom Leg/Foot Right
PH-2B -6L	Whole Body Phantom Leg/Foot Left
PH-2B -2	Whole Body Phantom PBU-60 Trunk
PH-2B -1	Whole Body PhantomPBU-60 Head & Stand
Optional Accessories
41363-070	PH-2 Storage Case (Optional Accessory) Comes with handles and castors for easy movement. Set includes: 2 storage cases (a pair). Size (approx.): W60 x D39 x H102 cm / W23.6 x D15 x H40 in W60 x D31 x H102 cm / W23.6 x D12 x H40 in Weight (approx.): 11.5 kg / 25 lb (for parts) 9.5 kg / 21 lb (for body)
41350-200-16	PH-2B Body Plates - BMI 32 (Optional Accessory) Body plates that simulate a patient with a BMI of 32 for studying the effect of patient size on radiation dose and image quality. Set includes: 1 front body plate, 1 back body plate and 2 belts Plate size (approx.): Front: W67 x D37 x H26 cm Back: W66 x D36 x H12 cm Packing size (approx.): W77 x D48 x H40 cm x 2 boxes / W30.3 x D18.9 x H15.7 in. x 2 boxes Packing weight (approx.): 21 kg / 46.3 lb Material: Urethane-based resin, density 1.06 Download the PH-2B Body Plates Catalog (PDF)
41350-200-17	PH-2B Body Plates - BMI 40 (Optional Accessory) Body plates that simulate a patient with a BMI of 40 for studying the effect of patient size on radiation dose and image quality. Set includes: 1 front body plate, 1 back body plate and 2 belts Plate size (approx.): Front: W67 x D43 x H27 cm Back: W67 x D36 x H11 cm Packing size (approx.): W77 x D48 x H40 cm x 2 boxes / W30.3 x D18.9 x H15.7 in. x 2 boxes Packing weight (approx.): 34.5 kg / 76 lb Material: Urethane-based resin, density 1.06 Download the PH-2B Body Plates Catalog (PDF)
41350-000-11	Fractured Hand/Forearm Phantom Set includes: 1 fractured hand/forearm phantom Packing size (approx.): W47 x D35 x H24cm / W18.5 x D13.8 x H9.4inch Materials: Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31)
