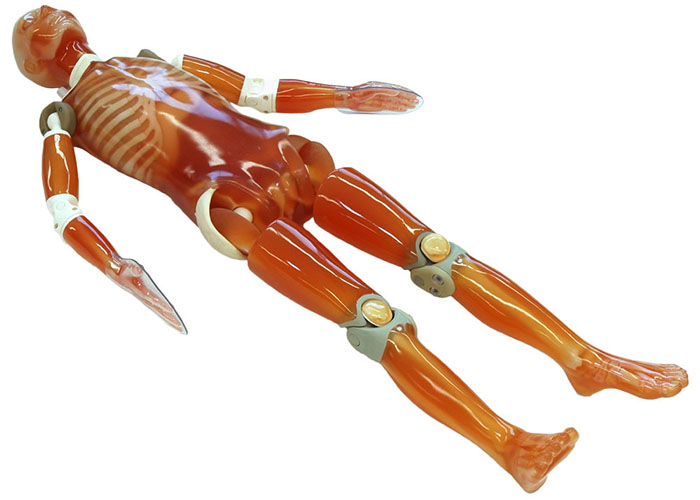

CT Whole Body Phantom with Pathologies - PH-2E - Kyoto Kagaku
Implement theory with practice with pathological findings in this hands-on training phantom
Features:
- Radiology absorption and HU number approximate to human body
- Main joints have close-to human articulation
- Phantom can be disassembled into 10 individual parts
Training skills / Applications:
- Plain X-ray
- CT
- Basic patient positioning
Set includes:
- 1 whole body phantom
- 1 head supporter
- 1 flat head screwdriver
- 1 set of sample X-ray
- manual
Height (approx.):
Packing size (approx.):
- W92 x D57 x H38cm, W37 x D23 x H15in
- W90 x D63 x H22cm, W36 x D25 x H9in
- W89 x D57 x H16cm, W35 x D23 x H6in
Weight (approx.):
Packing weight (approx.):
Materials:
- Soft tissue: urethane based resin (density: 1.06)
- Synthetic bone: epoxy resin (density: 1.31)
- Skull: epoxy resin (density: 1.11)
- *Phantom has no metal parts or liquid structure
Replacement parts:
- 41350-200-02 right hand for PH-2＆2B
- 45350-200-03 left hand PH-2＆2B
- 41350-200-04 right upper arm for PH-2&2B
- 41350-200-05 left upper arm for PH2&2B
- 41350-200-12 right thigh for PH2&2B
- 41350-200-13 left thigh for PH2&2B
- 41350-200-14 right foot for PH2&2B
- 41350-200-15 left foot for PH2&2B
Optional parts:
- 41363-070 storage cases (consist of 2 boxes)
- 41350-200-16 body plates for PH-2/2B (BMI 32)
- 41350-200-17 body plates for PH-2/2B (BMI 40)
Publication references:
- Kim, S., & Jung, H. (2013). A Study on Performance of Low-Dose Medical Radiation Shielding Fiber (RSF) in CT Scans. International Journal Of Technology, 4(2),
178-187. doi:10.14716/ijtech.v4i2.107

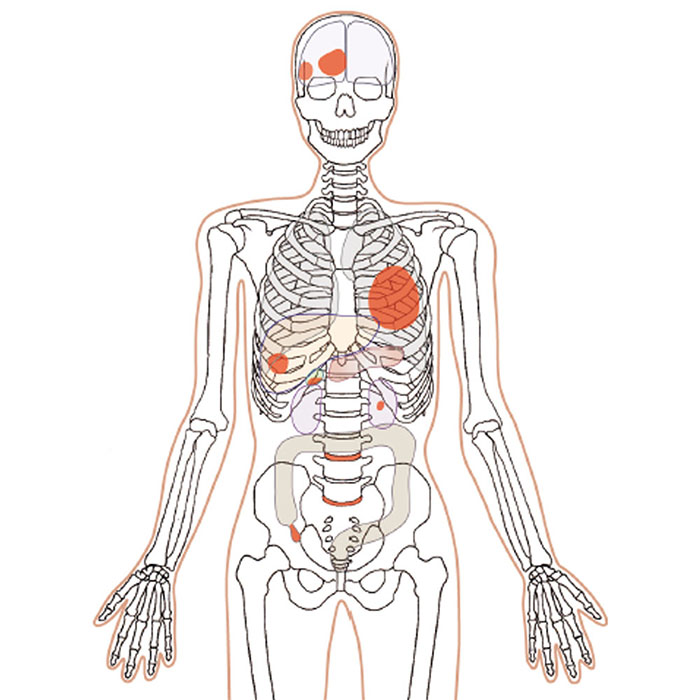

Anatomy and Pathology
| Bony structure |
|
Synthetic skull
|
|
Cervical vertebrae
|
|
Vertebrae
|
|
Clavicles
|
|
Ribs
|
|
Sternum
|
|
Scapula
|
|
Coxal bones
|
|
Femurs
|
|
|
Cases
|
HU number at 80 KeV
|
|
Brain tumor
|
130
|
|

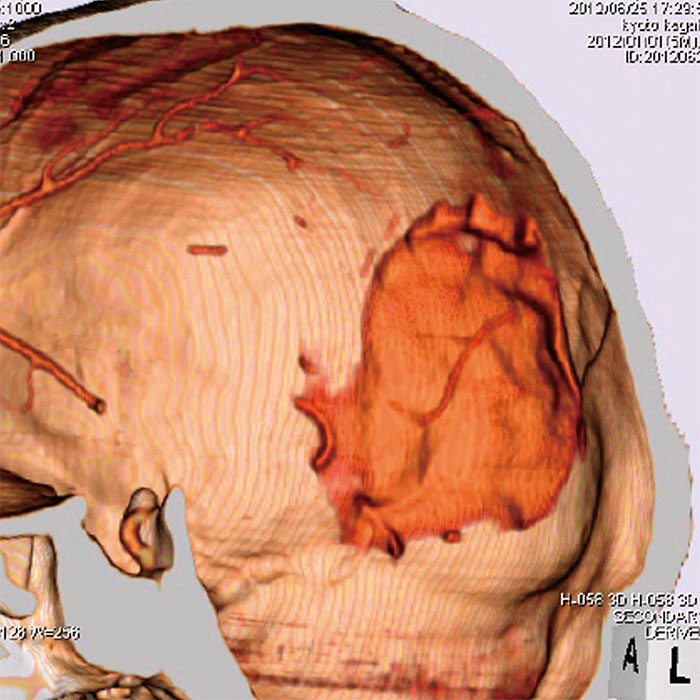

Subarachnoid hemorrha
|
90
|
|

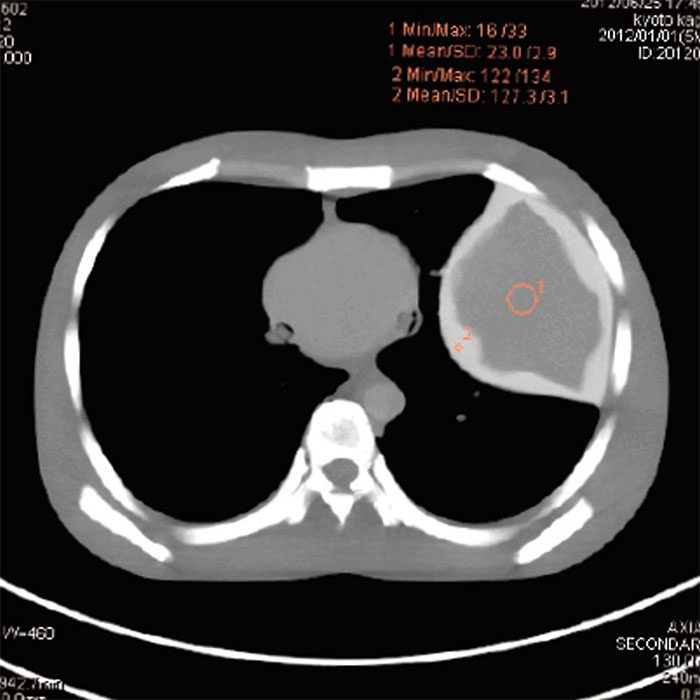

Pulmonary tumor
|
inside: 30 / outside: 130
|
|
Hepatic tumor
|
10
|
|
Pancreatitis
|
30
|
|
Gall stone
|
170
|
|
Kidney stone
|
170
|
|

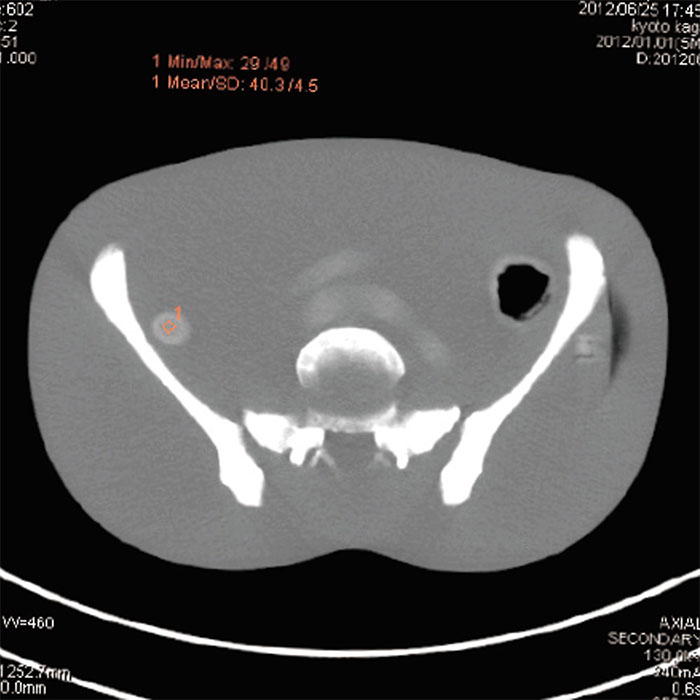

Appendicitis
|
inside: 30 / outside: 40
|
|
Spondylolisthesis
|
-
|
|
Full Internal Organs
|
Internal organs
|
HU number at 80 KeV
|
|
Brain
|
|
|
Cerebrum
|
40
|
|
Mesencephalon
|
40
|
|
Cerebellum
|
40
|
|
Cerebral ventricles
|
10
|
|
Eye balls
|
20
|
|
Arteries with contrast medium (left half only)
|
250
|
|
Lungs
|
-1000
|
|
Pulmonary vessels
|
8
|
|
Trachea
|
trachea wall: 8 / inside: -1000
|
|
Heart
|
PBU-50: 8 / PBU-60: 40
|
|
Liver
|
70
|
|
Portal and hepatic veins
|
40
|
|
Pancreas
|
30
|
|
Kidneys
|
30
|
|
Gallbladder
|
20
|
|
Spleen
|
50
|
|
Seminal Vesicle
|
25
|
|
Aorta
|
40
|
|
Cava
|
70
|
|
Ureter
|
ureteral wall: 30 / inside: 10
|
|
Urinary bladder
|
10
|
|
Prostate
|
50
|
|
Rectum
|
rectum wall: 70 / inside: -800
|
|
Sigmoid colon
|
colon wall: 70 / inside: -800
|
