Multipurpose Chest Phantom Kyoto Kagaku N1 LUNGMAN
This is a multipurpose phantom which is applicable for both plain radiography and CT scanning. The inner components consisting of mediastinum, pulmonary vasculature and an abdomen block are easily detachable, allowing insertion of mimic tumors or other lesions. The unique radiological substitute material and the elaborate three-dimensional modeling of pulmonary vessels offer the most life-like X-ray and CT images. A combination of various approaches will enrich the training opportunities.
Production Supervision:Kiyoshi Murata, Ph. D Professor
Norihisa Nitta, Ph.D
Shiga University of Medical Science
Features
Multipurpose
Applicable for both plain radiography and CT scanning. Wide variety of uses in interpretation training, anatomical education, evaluation and assessment of devices and other research.
Accurate anatomy and high quality substitute materials
The phantom is an accurate life-size anatomical model of a human torso. The thickness of the chest wall is based on measurement of clinical data. The soft tissue substitute material and synthetic bones have x-ray absorption rates very close to those of human tissues.
X-ray
The phantom provides life-like radiographs very close to actual clinical images. The three-dimensional structure allows both PA and LATERAL images to be obtained. The phantom bones and vessels show life-like contrast gradations on the image along with tube voltages.
Computed tomography

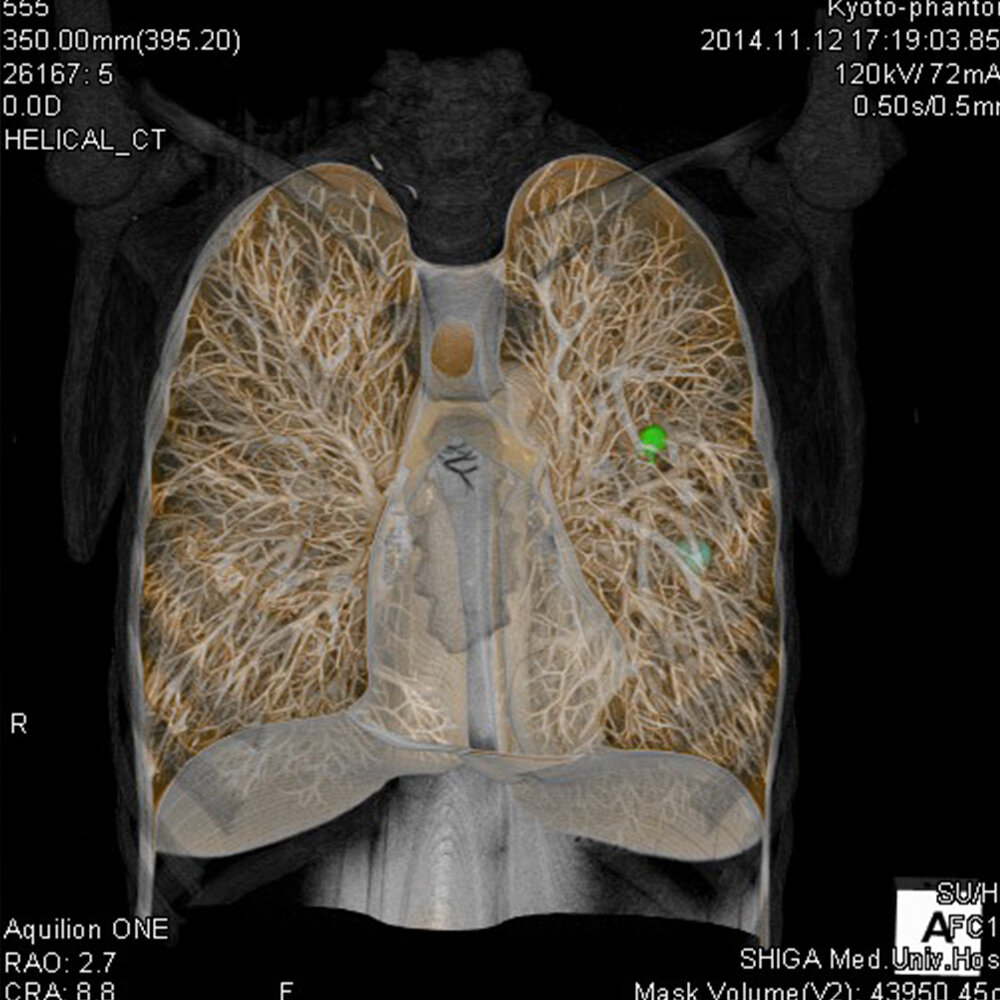

Arms-abducted position of the torso suits the CT scanning. The pulmonary vessels are spatially traceable. Assessment of computer-aided detection systems is possible.
Skills, Trainings & Applications
Plain radiography
Radiograph training
Interpretation training
Assessment of tube voltages, films and other devices
Optional Bariatric Chest Plates and Urethane Foam Lungs
Optional Carrying Case

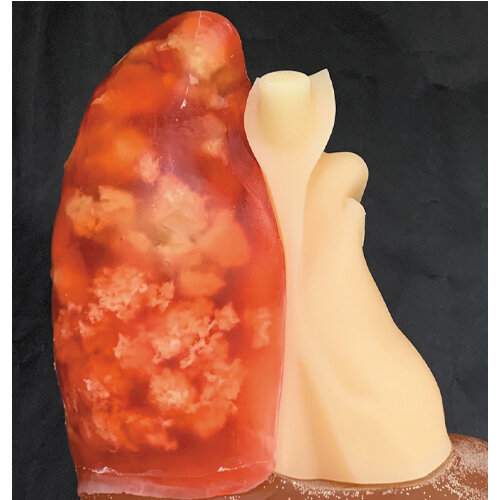

Optional Pneumonia Insert Kit

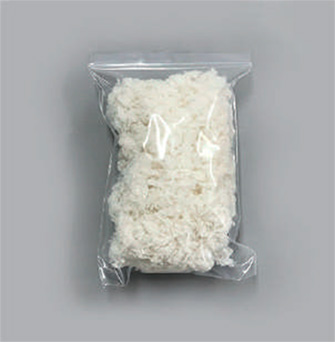

Store the insert tissue in the included bag or similar in a dark, cool and dry place. |

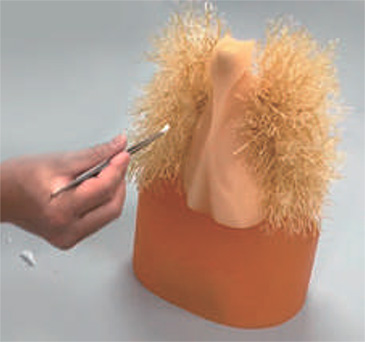

Using the tweezers place the teared pieces of tissue in the capillary vessel densely. |
Optional Breast plate for Chest Phantom N-1 "LUNGMAN".
This plate simulates the absorption of breast in female chest
X-ray, and the influence of nipple on image quality.
Optional Breast Plate
Optional Breast Plate X-ray
Features:

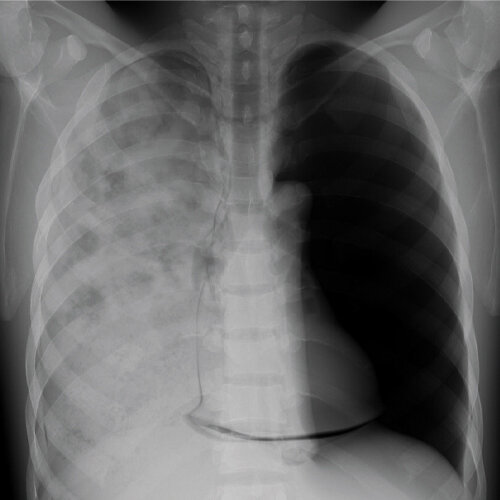

- Chest radiography training simulating a case of pulmonary inflammation.
- It can be an attachment to the Lung Field you already have.
- No adhesion required
- No adhesion required
Computed tomography
CT scan training
Interpretation training
Assessment of "computer-aided detection systems"
Chest Plate
Optional chest plates to simulate a larger body type and X-ray absorption.
Differences in X-ray absorption depending on body volume can be observed.
Using 60mm thick plates, 30mm is added to the front and to the back of the N1 chest.
Components for Radioisotope
Image fusion experiment with CT & RI can be performed.
Specifications
Set includes:
1 male chest torso
Main body: synthetic bones are embedded
Internal parts: separates into four parts Mediastinum: heart, trachea Pulmonary vessels (right and left) Abdomen (diaphragm) block: no internal structure
15 simulated tumors
3 varieties of Hounsfield number: approx -800, -630,+100
5 sizes for each type: diameters 3, 5, 8, 10, 12 mm
Materials:
Soft tissue: polyurethane (gravity 1.06)Synthetic bones: epoxy resin
Phantom size: 43 x 40 x 48H cm, chest girth 94 cm weight: approx.18 kg , 39.6 lbs
Packing size: 59 x 52 x 30 cm, 25 kg, 55 lbs
Optional parts
41337-010 Chest plates for N1 (a set of anterior and posterior plates)
41337-020 Urethane foam lungs
41337-030 Liver RI container for N1
41337-040 Gall Bladder RI container for N1
41337-050 Pulmonary nodule RI container for N1
41337-060 Mediastinum with left myocardium RI container for N1
41337-070 Replacement Simulated Tumors
41337-070-1 Star shaped tumors

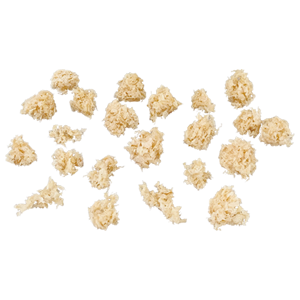

41337-080 Pneumonia Insert Kit
41337-090 Breast Plate

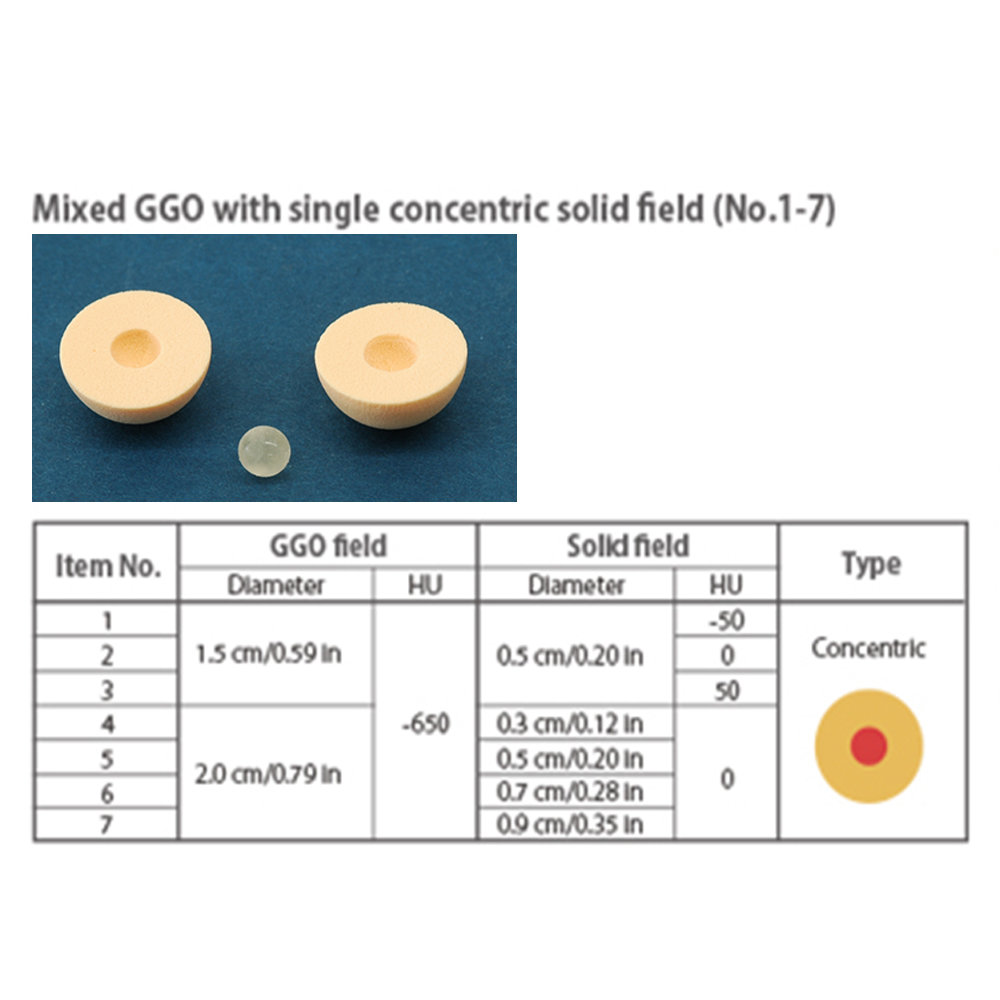

41923-000 Mixed GGO with single concentric solid field set (No 1 – 7)
41923-100 Mixed GGO with single concentric solid field set (No 8 – 10)
41923-200 Mixed GGO with single concentric solid field set (No 11 – 12)
41923-300 Pure GGO set (No a – h)
41923-400 3D GGO
PH-1CASE – Aluminum Storage Case With Wheels to hold PH-1.*
Please note - this case does not accommodate any optional items*
