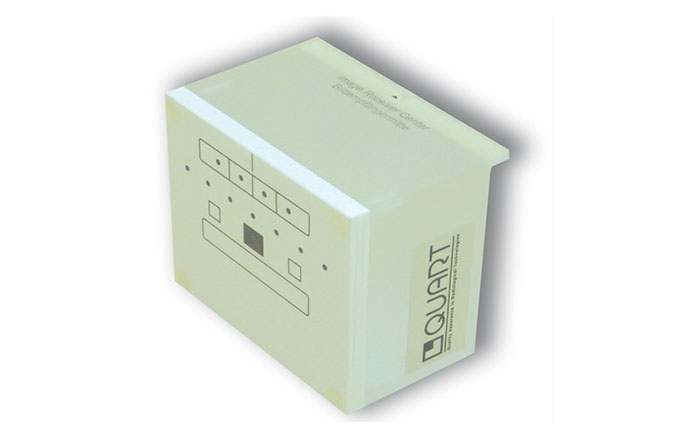

QUART Biopsy Phantom - 12311
Stereotactic Mammography Test Phantom
The QUART Biopsy Phantom is designed for QA/QC at stereotactic biopsy systems in digital and analog mammography.
Its design is optimised for all common image formats and fields-of-view (FoV) from 4 x 4 cm. The phantom's integrated test objects enable comprehensive QA/QC testing.

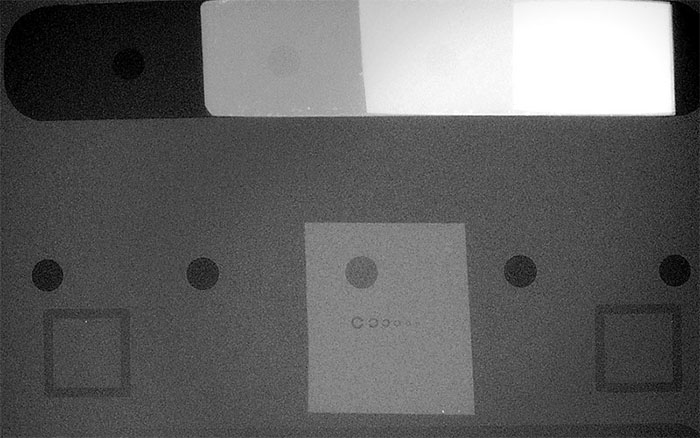

The Biopsy Phantom allows checks on actual low-contrast properties. Low-contrast resolution can be verified to the perceptibility limit, thus providing a solid base for precise equipment calibration.One exposure is sufficient to acquire all test parameters. The phantom is required to test equipment used in National mammography screening programmes.
Technical Specifications- INTERNAL FILTRATION: 46 mm PMMA
- SPATIAL RESOLUTION: 6 Landolt objects in 1 group
- DYNAMIC STEP: 4 steps
- CONTRAST DETAIL: 4 object details in the step
- VISIBILITY THRESHOLD: Low-contrast wedge w/ pre-defined constant
- HOMOGENEITY: 2 fields for pixel value measurement
- GEOMETRIC ACCURACY: Horizontal ruler; 10 mm division
- SIZE: 80 x 70 x 46 mm (L x W x T)
- Visual Spatial Resolution
- Low-Contrast
- Minimum Contrast (Perceptibility Limit)
- Lateral Homogeneity
- X-Ray Field Collimation
- Artefacts / Image Flaws
