QUART mamFS - 12303

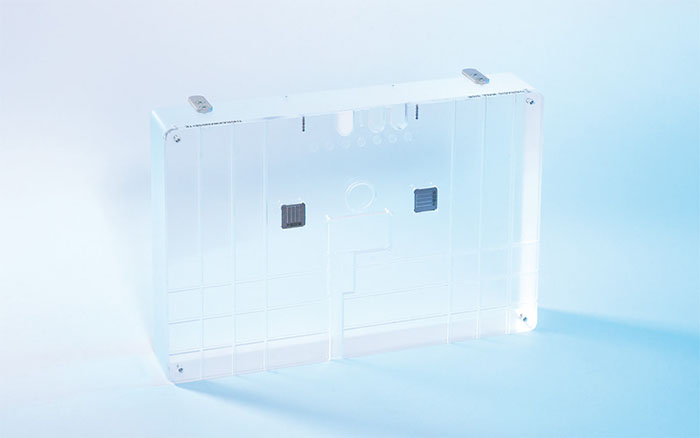

Universal Mammography Test Phantom
The QUART mam FS phantom is designed to be used for QA/QC testing in conventional mammography applications according DIN/IEC requirements.
Only one exposure is required to collect all parameters to determine the imaging quality of the x-ray system. After the exposure, the test image is evaluated visually.
The QUART mam FS phantom complies with IEC 61223-3-2, DIN 6868-7 and DIN 6868-152, as well as the "European Guidelines for Quality Assurance in Mammography Screening" (EPQC), Part 1.
MODE OF OPERATIONQC tests are carried out at initial equipment installation to establish a visual reference. On a regular routine basis, they are meant to ensure the constancy of the system's imaging capabilities.
Any deterioration in imaging performance is revealed by the visual evaluation of the test images. The evaluation of grey values, as traditionally required for conventional x-ray technology, is carried out using a densitometer.
A simple assessment of image quality for digital mammography systems is also possible.
Technical Specifications- INTERNAL FILTRATION: 45 mm PMMA
- SPATIAL RESOLUTION: Circular line pair test object (5/6/7/8/10 Lp/mm; for 0°/45°/90° arrangement; 0.05 mm Pb
- or alternatively: 6/8/10/12/16 Lp/mm; for 0°/45°/90° arrangement; 0.05 mm Pb)
- REFERENCE MARK: 60 mm from thorax wall side
- LOW-CONTRAST: 7 objects
- DENSITOMETRY: 3 objects for densitometric evaluation
- DOSIMETRY: Insert area for QUART dosemeter detector
- FIELD ALIGNMENT: 2 rows of radiopaque balls to check field alignment at thorax wall side
- GEOMETRIC ACCURACY: Various structures for field geometry evaluation
- ADDED ATTENUATION OPTIONS: Additional 20 mm PMMA slab available on request
- SIZE: 240 x 180 x 45 mm (L x W x H)
- Spatial Resolution
- Low-Contrast Resolution
- Radiation Field Alignment
- Image Homogeneity / Uniformity
- Dose Equivalent Value
- Artefacts, Image Flaws, etc.
