Pro-CT Dose - Pro-Project
04-203 - Pro-CT Dose Head and Body Nested Set
04-204 - Pro-CT Dose Adult and Paediatric Nested Set
|
|
|
|
|
|
|
|
|
|
Set of homogenous cylinders designed to image paediatric and adult head and body.
Used for CTDI measurement and to separate dose information for each. When performing dose profile measurements, dose phantoms allow to collect information for the maximum, minimum and mid-range value of the nominal tomographic section thickness.

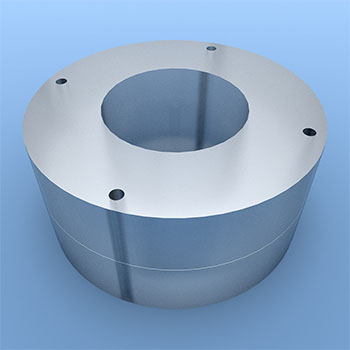

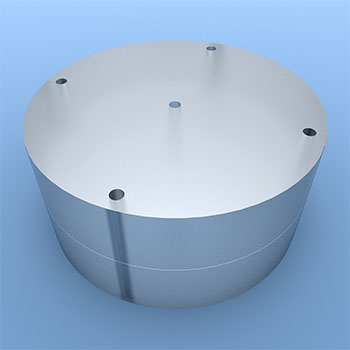

Technical data (can be modified to customer specifications):- Pro-CT Dose L (adult body) - 150mm thick homogenous PMMA cylinder, diameter: 320mm, with five Ø13.1mm CT probe holes (one in the middle and 4 around the perimeter, 90° apart and 10mm from the edge)

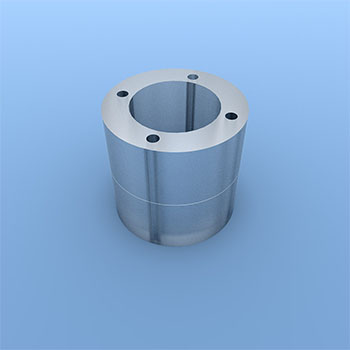

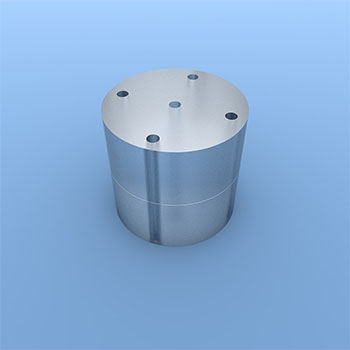

- Pro-CT Dose M (adult head / paediatric body) – 150mm thick homogenous cylinder, diameter: 160mm, with five Ø13.1mm CT probe holes (one in the middle and 4 around the perimeter, 90° apart and 10mm from the edge)

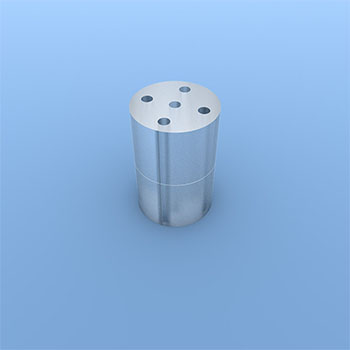

- Pro-CT Dose S (paediatric head) – 150mm thick homogenous cylinder, diameter: 100mm, with five Ø13.1mm CT probe holes (one in the middle and 4 around the perimeter, 90° apart and 10mm from the edge)
- Engraved crosshair markings on phantoms for easier positioning

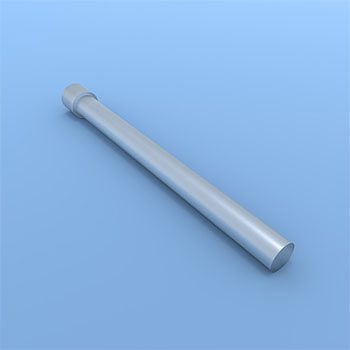

- Acrylic rods for plugging all holes in the phantoms
- Nested versions of above phantoms are also available, where smaller cylinders can be inserted into larger ones together creating one solid cylinder
- Carrying case, also with a trolley option
- Complies with:
- Report no. 1 of the AAPM (American Association of Physicists in Medicine)
- IEC 61223-3-5
- IEC 61223-2-6
- CE certified
- The manual provides detailed guidelines for carrying out each test, results assessment and registration
| Item Number | Description |
| 04-203 |

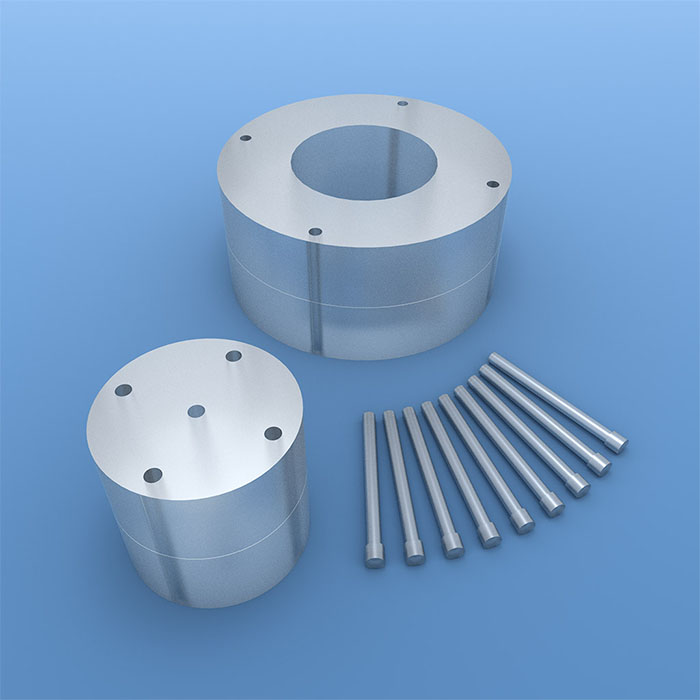

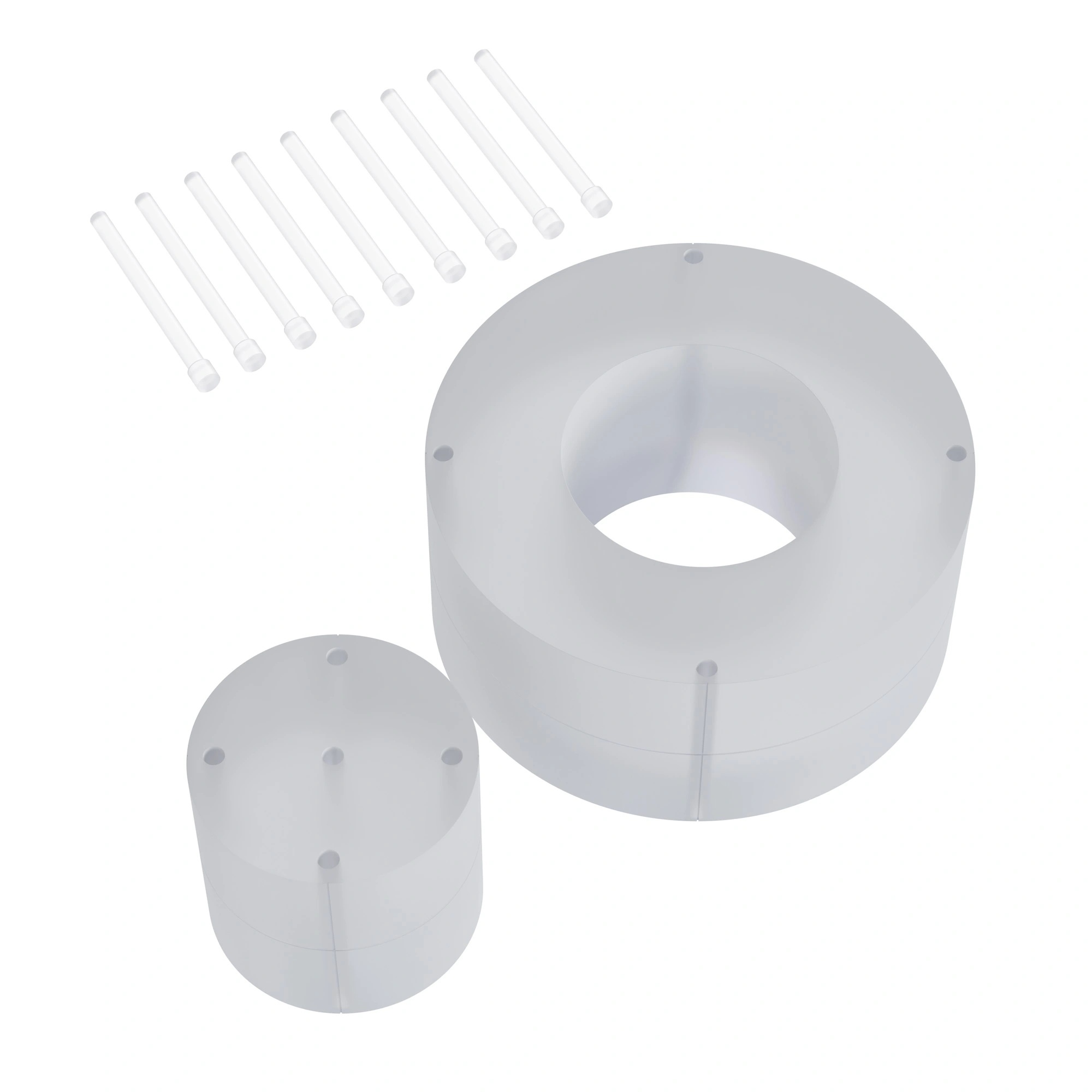

Pro-CT Dose Head and Body nested set - L and M phantoms with 9 plugs and a case with a trolley (matte finish) |
| 04-204 |

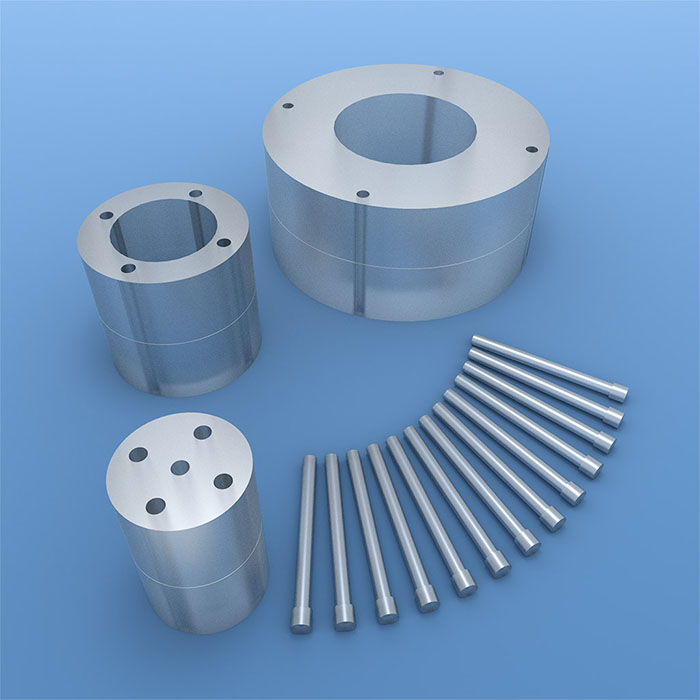

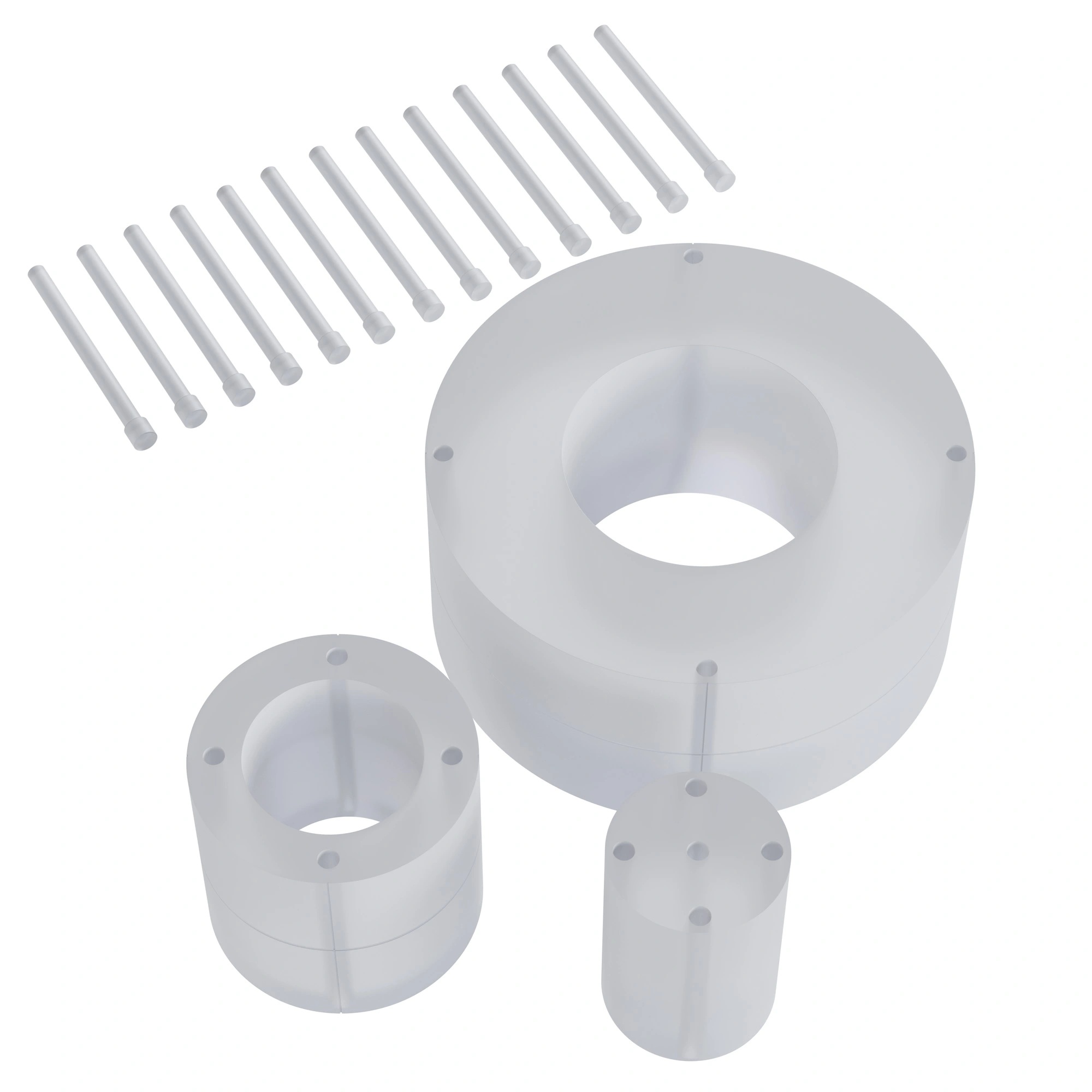

Pro-CT Dose Adult and Paediatric nested set - L, M and S phantoms with 13 plugs and a case with a trolley (matte finish) |
