Octostop® Arm Ridges®
Filter & Positioner for Digital Arteriography / Venogram of the Upper Extremities
Main Features:
- Three tailored silicone rubber filters eliminate halation over a 15-cm width, down to the finger; subtraction is this facilitated.

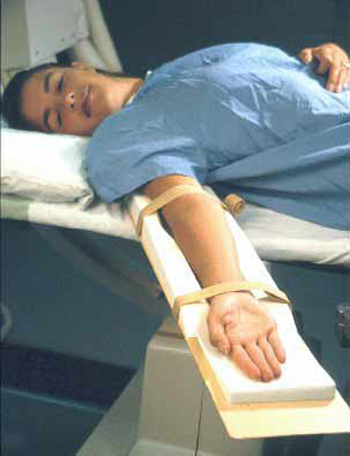

- The arm lies comfortably on a wood board slipped under the shoulder.
- The table is rotated (or a stretcher is used) to position the extremity
along the path of the
X-RAYS - Supplied Velcro® straps and ridges provide exxcellent immobilization.
- The diaphragms are easier to adjust along the surface of the arm for right and left sides.
- Localization and measurements of lesions with incorporated ruler.
- Also used for venography / venogram
MATERIAL : silicone rubber ABSORPTION : twice that of water WEDGE : approx. 30° and 60° COMPONENTS : three (3) L x W x H in cm Two RIDGES, each : 62.3 x 6.5 to 7.5 x 5 to 2.5 One split GENTLE SLOPE for the hand: 14 x 16 x 2 OPAQUE RULER : 30 cm in one RIDGE WOOD BOARD : 100 x 16.25 x 1.25 VELCRO® STRAPS : two 5 x 30 SHIPPING WEIGHT : 3.3 kg INSTRUCTIONAL VIDEO : on CD-ROM. *Subject to change without notice. |
WARNING
Must be used only by qualified personnel, according to appropriate procedures, and under the responsibility of a physician.
OCTOSTOP® Inc. and its personnel do not assume any liability regarding the use, indications, consequences, or any situation directly or indirectly related to its products.
