Labmate
Trivitron Healthcare

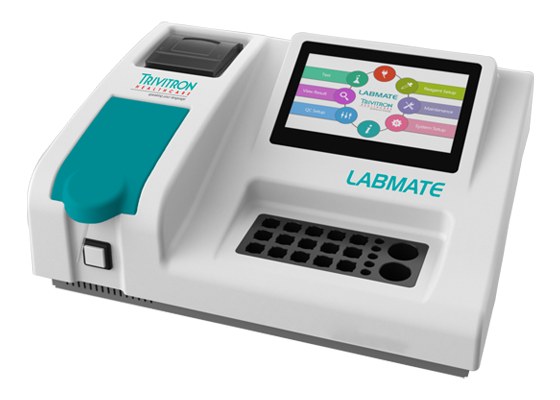

Labmate is a semi-automated clinical chemistry analyzer supporting clinical chemistry, turbidimetry and coagulation assays with flow-cell, cuvette and tube reading modes.
- Multi-Mode Operation : Supports clinical chemistry, turbidimetry, and coagulation analysis.
- Integrated Temperature Control : Peltier-controlled system maintains stable temperatures at 25°C, 30°C, 37°C, and room temperature.
- 7-inch colour touch display with mouse, keyboard, and barcode reader support.
- High-performance optical unit with 8 interference filters (340–670 nm) and silicon photodiode detector.
- Built-in Multipurpose Incubator : 26-position incubator maintained at 37°C for consistent reaction conditions.
- Minimal Sample Requirement : Operates with a minimum aspiration volume of 200 μL using a peristaltic pump.
- Supports flow-cell, cuvette and tube reading modes.
| Specification | Details |
|---|---|
| Model / series | Labmate |
| Optical Unit | Interference filters at 340, 405, 450, 505, 546, 578, 630 & 670 nm |
| Detector | Silicon photodiode |
| Photometric Range | 0 to 3.0 OD |
| Resolution | 0.0001 A |
| Light Source | Halogen lamp |
| Measuring Unit | Triple cuvette system – 18 μL quartz flow cell, 10 mm square cuvette, 6 mm round tube with adaptor |
| Temperature Control | Peltier system at 25°C, 30°C, 37°C, and RT |
| Aspiration Volume | Minimum 200 μL (peristaltic pump) |
| Incubator | 26-position multipurpose incubator at 37°C |
| Analysis Methods | End-point with reagent blank, Two-point end, Kinetic, Fixed time, Turbidimetry, Coagulation, Absorbance |
