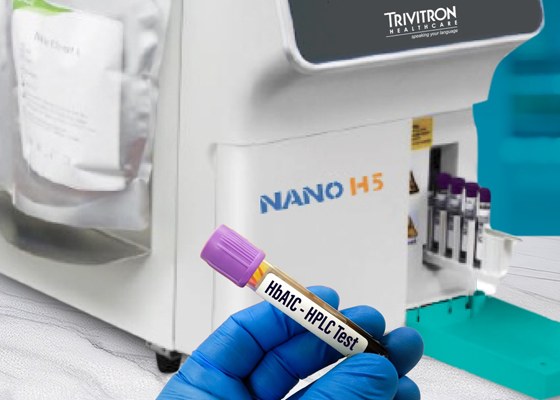

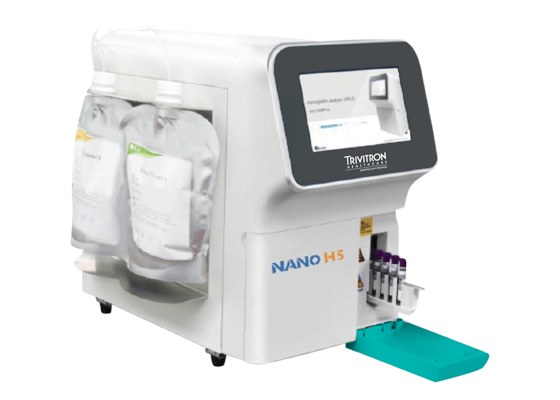

NANO H5
Trivitron Healthcare
NANO H5 is a fully automated HPLC analyzer for glycated hemoglobin measurement in human whole blood using ion-exchange liquid chromatography.
- Compact, automated High Performance Liquid Chromatography (HPLC) analyzer.
- Ion exchange liquid chromatography for precise HbA1c measurement.
- Fast turnaround: results in under 130 seconds.
- Fully automated 5-position sample loader.
- Barcode scanner for accurate sample identification.
- NGSP & IFCC preferred methodology.
| Specification | Details |
|---|---|
| Model / series | NANO H5 |
| Methodology | High Performance Liquid Chromatography (HPLC) |
| Test Modes | Fast mode, Variant mode |
| Sample Type | Whole blood or diluted samples |
| Matched Reagents | Eluents A & B, hemolytic agent L |
| Power Supply | AC 100–240V, 50–60Hz, Input power 120VA |
| Operating Environment | Ambient temperature: 10–30°C Relative humidity: ≤80% (no condensation) Atmospheric pressure: 75–106 kPa Conditions: No frost, condensation, water seepage, moisture, or direct sunlight |
