Nanolab 200
Trivitron Healthcare

Nanolab 200 is a fully automated clinical chemistry analyzer with an open reagent system and a manufacturer-listed throughput of up to 200 tests per hour.

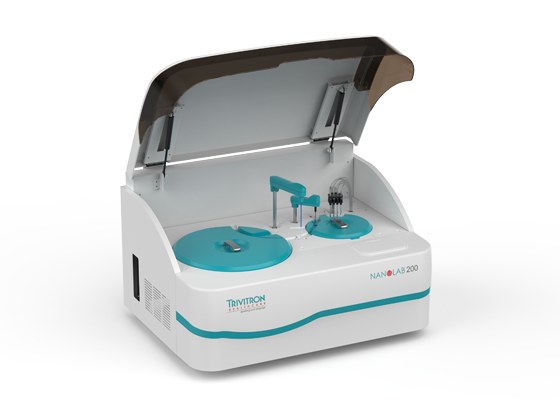

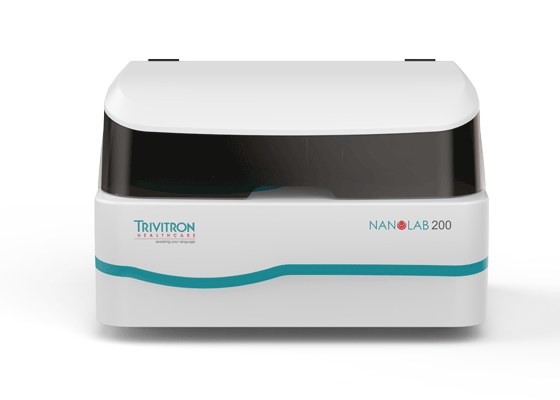

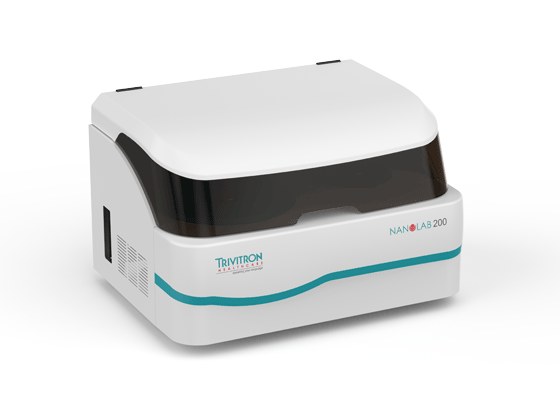

View all 3 product images

• Throughput : Performs up to 200 tests per hour for consistent and timely results.
• High Capacity : 40 reagent and 40 sample positions to support varying volumes.
• Open System : Compatible with reagents from multiple manufacturers, providing flexibility in operations.
• Efficient Sample Handling : Multifunctional probe with liquid level detection and collision protection for precision and safety.
• Mixing Arm : Dedicated Teflon-coated mixing arm with adjustable speeds for improved assay consistency.
• User Interface : Simple, Windows-based operation with data management, automatic calibration, and customizable reports.
• Real-time sample level detection and collision avoidance.
• Continuous cooling system (2°C–14°C).
• Open reagent system; volume 20–300 µL (1 µL step).
• Real-time reagent level detection and collision avoidance.
• Compatible with Windows XP, 7, 8, 10.
• Automatic calibration, data processing, reagent tracking, and patient data management.
• TCP/IP network interface and report printing (6 customizable formats).

Configuration choices

• Optional reagent barcode support.

Optional accessories

• Optional sample barcode reader.
• Four additional optical filters are listed as optional.
