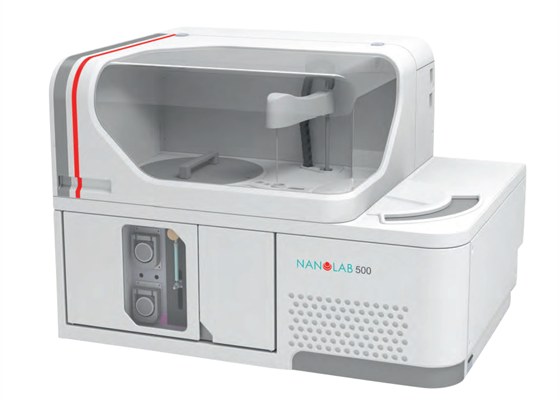

Nanolab 500
Trivitron Healthcare
Nanolab 500 is a fully automated random-access clinical chemistry analyzer with a manufacturer-listed throughput of up to 300 photometric tests per hour, or 480 tests per hour with an optional ISE module.
- Continuous Sample Loading : Direct access to sample sectors without opening the analyzer.
- Software : Intelligent operating system with automatic reflex testing, QC scheduling, and method calibration.
- Integrated Barcode Scanning : For both samples and reagents, ensuring traceability and reduced manual error.
- Safety : Clot detection and probe collision prevention for safe, reliable operation.
- Optimized Cooling : 72-position reagent tray with onboard refrigeration.
- Flexible Sample Handling : 95-position sample tray supporting primary tubes and pediatric vials.
- Shared Components : Compatible software and hardware with Nanolab 700 for simplified service and maintenance.
- Up to 300 photometric tests/hour.
- Single arm for sample and reagent handling.
- Reaction preheater, capacitive level sensor, collision protection.
- Internal and external probe cleaning.
- UV quartz halogen lamp.
- Supports single/double wavelength readings.
- Full random access or batch operation.
- STAT sample priority.
- End point, kinetic, coagulation, turbidimetry, enzyme, and DOA assays.
- Automatic sample dilution and reflex testing.
- Levy–Jennings and Twin plots.
- Westgard rules compliance.
- Bidirectional LIS interface (RS232C, ASTM E1381).
- Compatible with Windows 8 or higher.
- 91 cm (W) × 68 cm (D) × 65 cm (H).
| Specification | Details |
|---|---|
| Model / series | Nanolab 500 |
| Sample volume | 2–100 µl (1 µl increments) |
| Sample tray | 95 positions (5 racks x 19) |
| Reagent tray | Up to 72 single reagents |
| Refrigerated compartment | 8°C ±1°C |
| Reaction cuvettes | 80 reusable plastic cuvettes (6 mm optical length) |
| Reaction volume | 180–500 µl |
| Incubator | 37°C with warm air circulation |
| Reaction time | 0–10 minutes |
| Washing station | 6 stages |
| Water consumption | 1.5 L/hour (deionized) |
| Photometric range | 0.1–3 Abs |
| Wavelengths | 340–750 nm (12 filters) |
| Calibration | Linear, multilinear, sigmoid, logit-log (4/5 point), spline |
| Power | 110–230 VAC, 50/60 Hz, 550 VA |
| Temperature | 18–30°C |
| Humidity | 35–80% |
| Weight | 110 kg |
| Photometric throughput | Up to 300 tests/hour |
| Throughput with optional ISE | Up to 480 tests/hour |
| Dimensions (W × D × H) | 91 × 68 × 65 cm |
| Weight | 110 kg |
Configuration choices
- Optional ISE configuration: Li+, Na+, K+ and Cl− electrodes for serum and urine samples.
Optional accessories
- Optional MEDICA ISE module.
