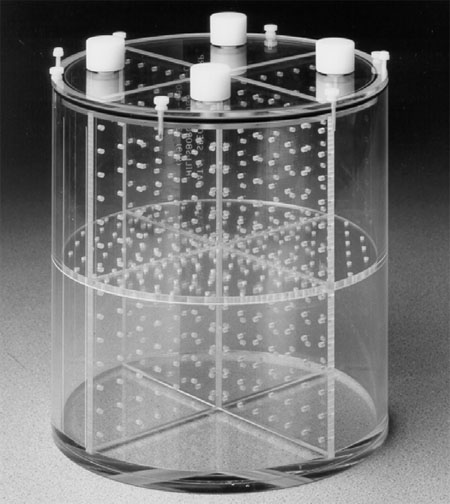

3D Geometry Phantom™
- The phantom can be utilized to evaluate linearity and FOV accuracy in three dimensions.
- Leak-proof design allows filling of desired background material.
- High quality, precision, and accurate construction used throughout.
- The phantom physical specifications re-described below including the registration lines.
Cylinder inside diameter: 21 cm
Cylinder outside diameter: 22.2cm
Flooded height inside: 21 cm
Cylinder outside Height: 23.4 cm
Hole spacing: 1.5 cm
Hole diameter: 0.3 cm
Plate thickness: 0.64 cm
# holes in X plate: 196
# holes in Y plate: 196
# holes in Z plate: 140
Registration lines: 15° intervals 0° to 75°
