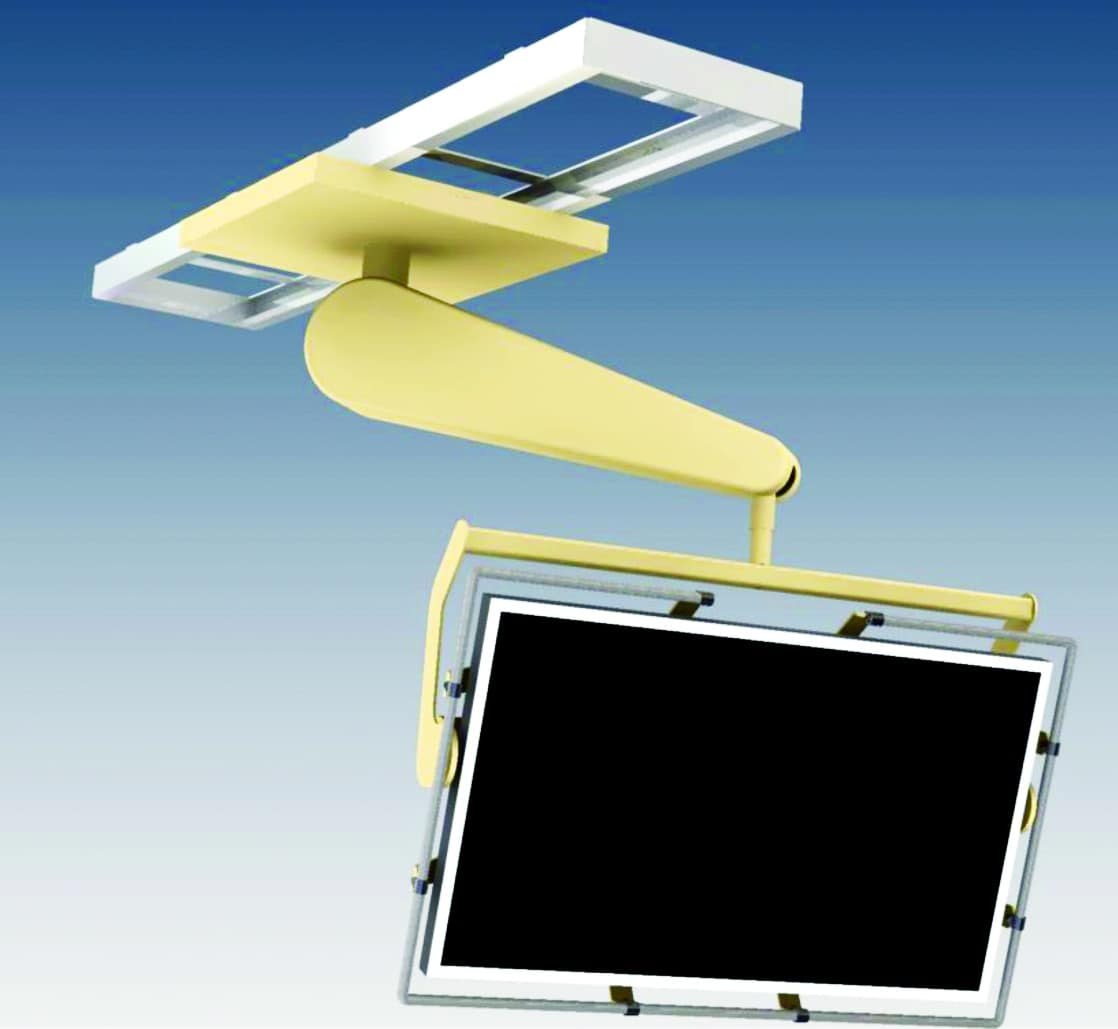

Hercules Super Heavy Duty Monitor and Equipment Suspension System - OS-80
AADCO Medical
The Hercules OS-80 supports large monitors, multiple displays or other equipment on a ceiling track or fixed column.
- Supports loads up to 265 lb (120 kg).
- Manufacturer describes use with a display up to 60 inches or several smaller displays.
- Custom configurations and custom trolleys can be discussed for the installation.
| Item / specification | Details |
|---|---|
| Model / item number | OS-80 |
| Horizontal rotation | 330 degrees |
| Equipment extension arm | 40 inches |
| Spring-arm vertical movement | 45 degrees |
| Spring-arm rotation | 350 degrees |
| Display-mount vertical tilt | 15 degrees |
| Existing-track requirement | Manufacturer specifies an existing track rated for loads of at least 510 lb |
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
