Pro-NDT DuplexWireIQI D15 - Pro-Project - 10-202
This Image Quality Indicator is especially made for digital X-ray applications. It may be used to evaluate image unsharpness (film and digital images) and basic spatial resolution in digital images according to EN 13068 (Radioscopy), EN 14784 and ISO 13671 (CR - Computed Radiography with imaging plates), ISO 17636-2 (digital radiography of welds - flat panel detectors) or ASTM E 2597 (characterization of digital detector arrays). It may also be used to determine focal spot sizes.
Technical data (can be modified to customer specifications):- Dimensions of the entire test tool: 415 x 250 x 110 mm
- Tool contains following test objects:
- Dimensions: 15 x 78.5 x 4 mm

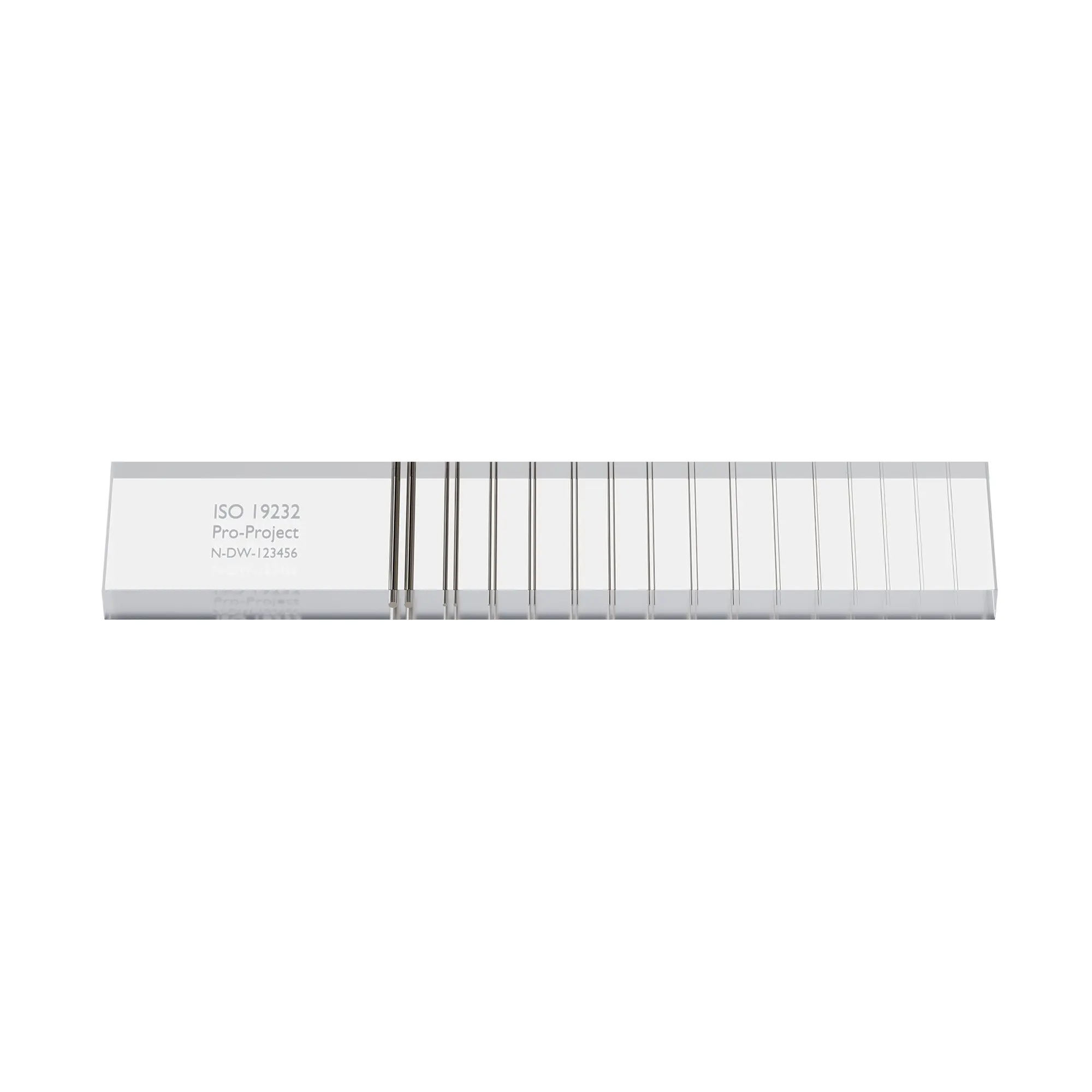

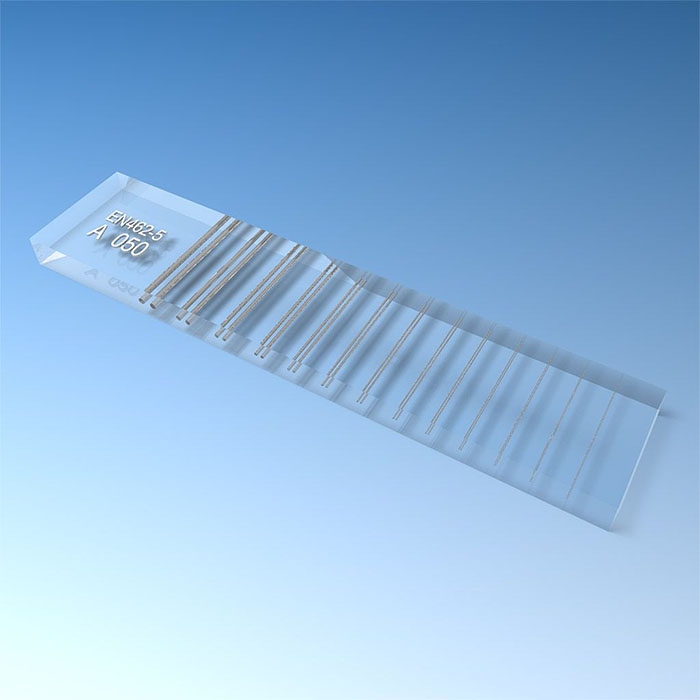

- 15 groups of wire pairs (from 1D to 15D) embedded in PMMA
- Groups 1D - 3D made of tungsten
- Groups 4D - 15D made of platinum
- Diameter of wires / spacing between wires ranges from 0.032 to 0.800mm
- Calibration / test certificate according to ASTM E 2002 and ISO 19232-5
- Complies with:
- ISO 19232-5
- EN 462-5
- ASTM E2002-99 Duplex IQI
- CE certified (declaration of conformity according to ISO/IEC 17050-1)
- The manual provides guidelines for carrying out each test, results assessment and registration
Item Number Description 10-202 Pro-NDT DuplexWireIQI D15
