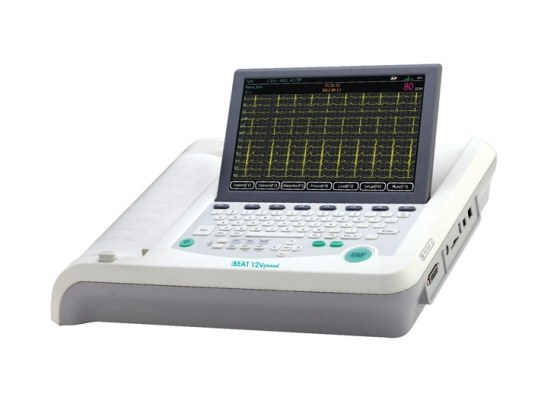

iBeat 12V Grand 12 Channel ECG
Trivitron Healthcare
iBeat 12V Grand is a 12-channel ECG recorder with simultaneous 12-lead acquisition, a 10-inch display and built-in thermal printing.
- 12-channel ECG recording with simultaneous acquisition of all leads.
- 10-inch TFT color LCD for clear ECG display.
- Built-in thermal matrix printer for immediate 12-lead printing.
- Pacemaker detection and precise auto interpretation program.
| Specification | Details |
|---|---|
| Model / series | iBeat 12V Grand |
| ECG Acquisition | Simultaneous 12 leads |
| Printing | 210–213 mm thermal paper, Roll or Z-fold |
| Display | 10-inch, 800x480 TFT color LCD |
| Keyboard | Alphanumeric for patient data entry |
| Storage | Built-in SD card, up to 10,000 ECG reports (XML, PDF, BMP) |
| Battery | Rechargeable lithium, up to 360 ECG prints |
Configuration choices
- Optional PC-ECG software connection, external PCL6-compatible USB printer connection and network transmission configurations.
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, item number and configuration required.
