iVita K Series Patient Monitors — K10, K12, K15 and K12-M Trivitron Healthcare
The iVita K Series includes K10, K12, K15 and K12-M patient-monitoring systems. Each model documents standard ECG, blood-pressure, respiration, pulse-rate, oxygen-saturation and temperature monitoring; displays and upgrade configurations differ by model.
Click the image to enlarge it.

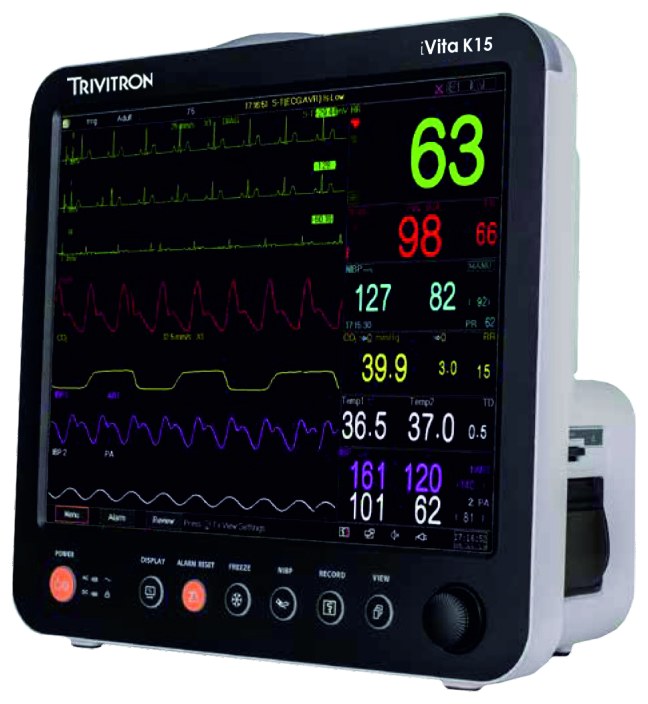

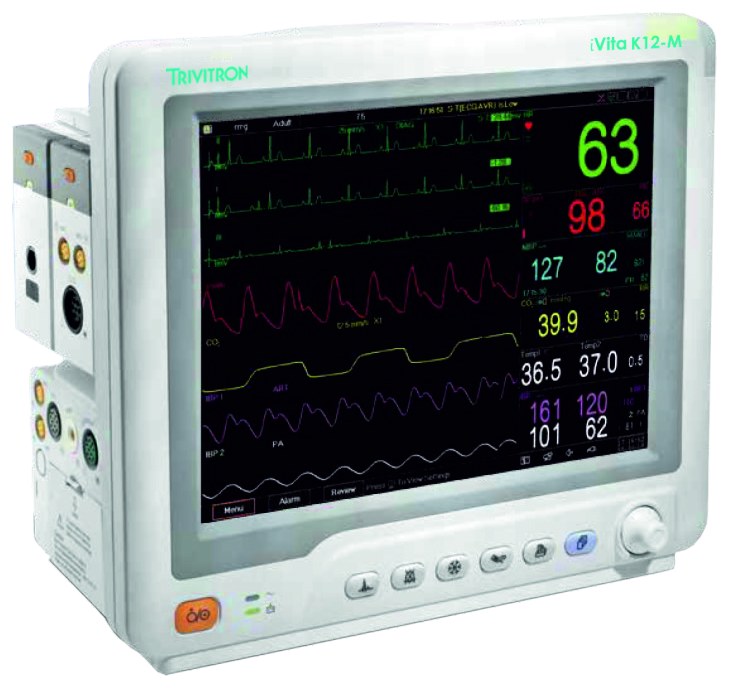

Distinct models and display sizes are shown below.
Standard monitoring parameters: ECG, NIBP, respiration, pulse rate, SpO2 and temperature.
Specification
Details
Model / series
iVita K10 / K12 / K15 / K12-M

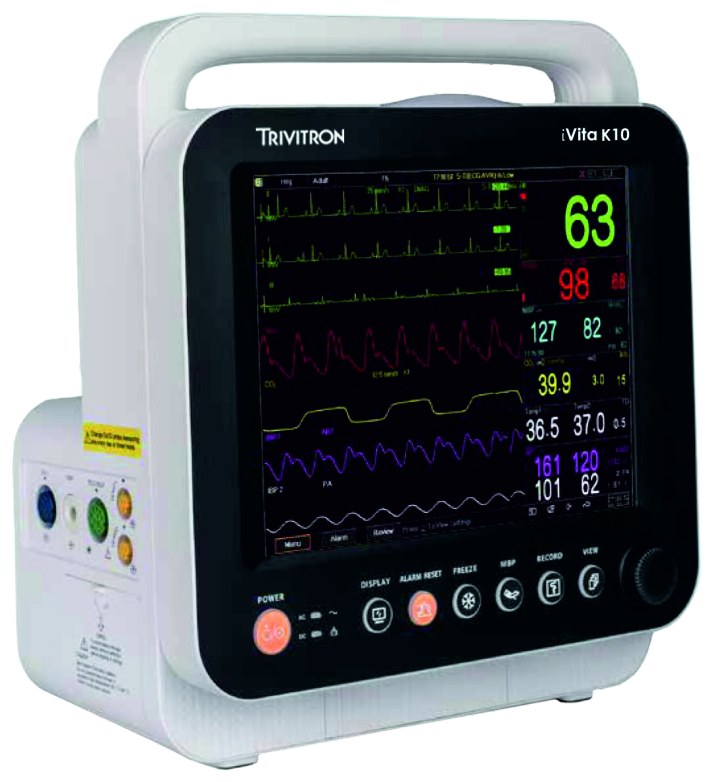

iVita K10
Specification
Details
Standard monitoring parameters
ECG, NIBP, respiration, pulse rate, SpO2 and temperature
Display
10.4-inch touchscreen
NIBP cycles
User-configurable, up to five phases
Waveform display
Nine traces; up to 13
Connectivity functions
HL7 protocol and bed-to-bed view

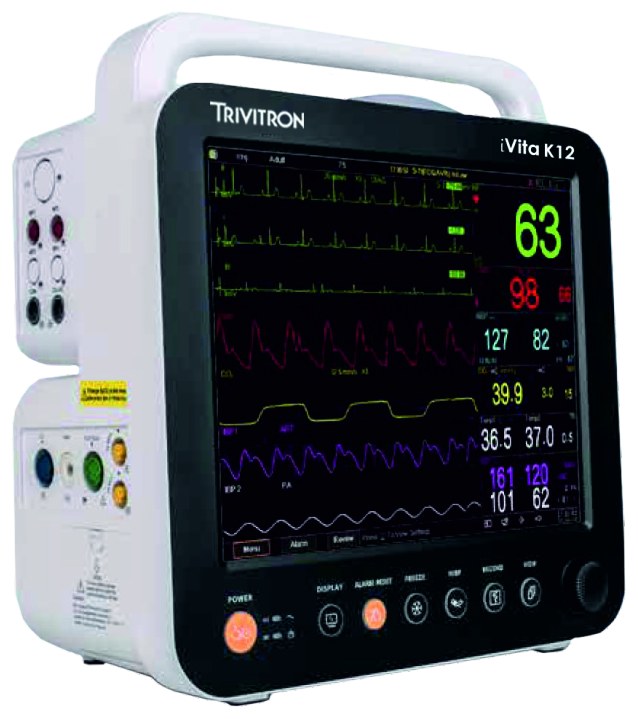

iVita K12
Specification
Details
Standard monitoring parameters
ECG, NIBP, respiration, pulse rate, SpO2 and temperature
ECG, NIBP, respiration, pulse rate, SpO2 and temperature
Display
12.1-inch display
Architecture
Modular design with on-site upgrades
Measurement modes
Adult, pediatric and neonatal
Trend review
2,000 hours
Optional upgrades
Dual IBP, sidestream or mainstream ETCO2, cerebral-state monitoring, CMS
Request product information or a quote Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, item number and configuration required.
