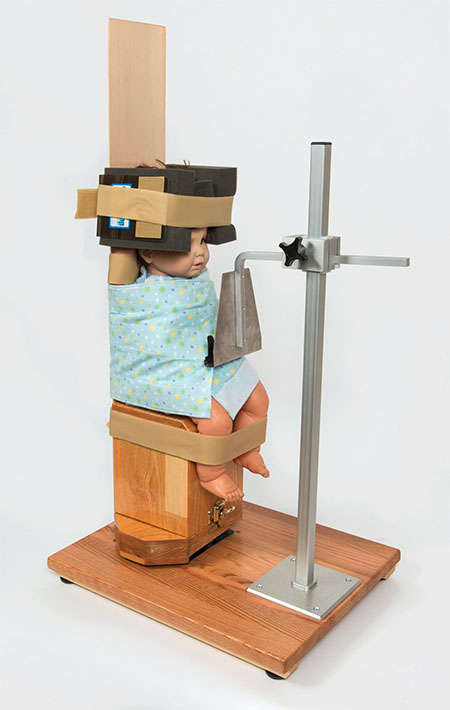

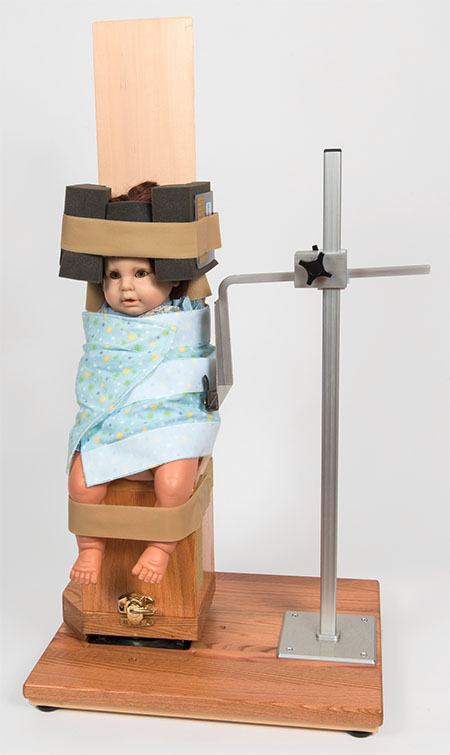

Octostop The Chair® - Pediatric Positioner

Features:

A unique pediatric immobilization solution that takes into accounts the best possible comfort of the young patients undergoing X-Rays and radio-graphic examinations. The Chair rotates 360° and reclines to horizontal if needed. A strong latch holds securely the chair in an upright position.

The Chair must be used only by qualified personnel, according to appropriate procedures, and under the responsibility of a physician. OCTOSTOP® Inc. and its personnel do not assume any liability regarding the use, indications, consequences, or any situation directly or indirectly related to its products. For hygiene purposes, OCTOSTOP recommends the use of disposable nurses' caps after each patient.

Installation Baby Child
Octostop The Chair® - Pediatric Positioner 3


Specifications
CH-01
(chair only)
Base :
  • Length : 52.5 cm – Width : 43.3 cm – Height : 5 cm
Stool :
  • Length : 25.5 cm – Width : 23 cm – Height : 27.5 cm
Board (above stool):
  • Length : 91.2 cm – Width : 16 cm – Thickness : 0.6 cm
Aluminum Cassette post :
  • Height : 76 cm – Width : 32 cm
Cassette holder :
  • Dimensions : 1.6 cm deep and 15 cm wide.
Nuts (4)

Washers (4)

Bolts (4)

The total weight of The Chair is approximately 12 kg.
CH-02
(Complete Kit)
Includes all optional accessories listed below
CH-03
(complete kit without the vertical pole)
Includes all optional accessories listed below. The vertical pole is not included.
Optional Accessories
CO-03 Pair of "L", and forehead cushions for arms and head.
CO-01 "U" Large head cushion set: 6 to 60 months.
ST-04 Velcro® straps set: forehead, arms and feet.
ST-07 Blankets with incorporated Velcro® #ST-07: large and small.
