Step Platform for U-Arm Systems
U-Arm Step Radiographic Positioner
NOT RETURNABLE

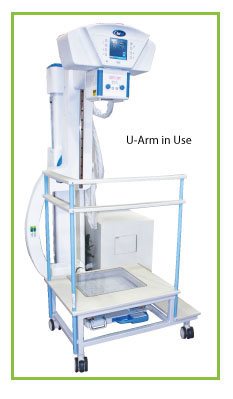

The design of the 2-Step Platform for U-Arm radiography permits patients to be positioned over a variety of U-Arm and fixed bucky digital radiography systems, including those made by Swissray, Sedical, IMIX, IDC and more.

This unit is also available as a special order, customized to work with your CR cassettes and DR panels - request a quote for this customization.

The U-Arm Step from Clear Image Devices is designed for easy capture of the highest quality weight-bearing lateral and AP foot images. This positioning device is ideal to satisfy the imaging needs of orthopaedic surgeons, sports medicine clinics, and general orthopedic practices. Optimal patient positioning also helps you acquire better diagnostic images for professional and collegiate sports physicians with fewer re-takes, thus reducing exposures to radiation.

Step Platform for U-Arm Systems - 1 Step Platform for U-Arm Systems - 2
Step Platform for U-Arm Systems - 3 Step Platform for U-Arm Systems - 4
Step Platform for U-Arm Systems - 5 Step Platform for U-Arm Systems - 6
Step Platform for U-Arm Systems - 7 Step Platform for U-Arm Systems - 8
Features
Dimensions
Length 32 in. / 81 cm
Width 28 in. / 71 cm

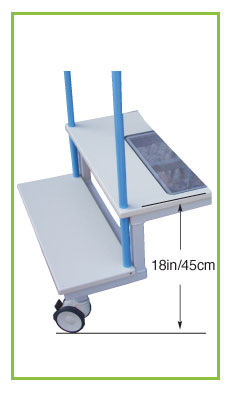

Height 18 in. / 45 cm
Handle Height 53 in. / 135 cm

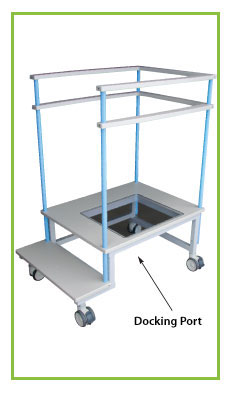

U-Arm Docking Space
Height 15.5 in. / 39 cm
Width 28.25 in. / 71.8 cm


Item # Description
24701 500 lb Capacity: Sedical, Swissray, IMIX, IDC and other U-Arm Systems
When using CR cassettes or DR panels, please request a custom quote.
Be sure to include dimensions of the Image Receptor, Length, Width and Thickness with quote request.
