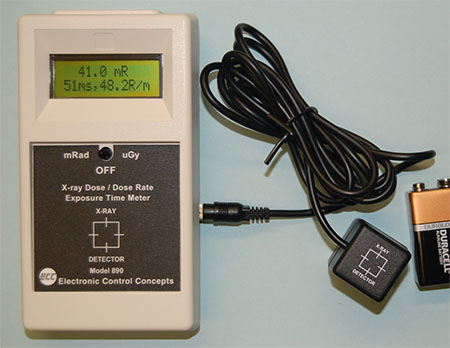

X-ray Dose Meter - ECC 890
The 890 is a meter that measures the dose and dose rate of an x-ray beam.
This unit measures in mRads and micro Greys.
This unit has an optional remote sensor that can be placed in a phantom to interpolate an accurate radiation dose from within a patient.
Features- Measures x-ray dose
- Measures dose rate
- Measures exposure time
- Selectable English and metric units
- Easy to use
- Works with AC or DC x-rays
- No need to set for AC/DC
- High accuracy
- Battery operated
- One year warranty
- Custom carrying case option
- Solid state digital design
- Durable ABS plastic case
- Measure effective dose
- Test mA and mAs linearity
- Verify mAs reproducibility
- Measure patient equivalent dose
- Calibration of x-ray
- Quality assurance
- Measurement of exposure time
- Radiation safety measurement
- Troubleshooting and repair of x-rays
- Maintain quality of x-ray
- Measure Half Value Layer
| Specifications | |
| Dose Specifications | ECC 890 |
| Range (mRad/min,µGy/min) | 2R/min - 630R/min (20µGy/min - 6,300µGy/min) |
| Accuracy | 5%±1mR |
| Exposure Time Accuracy | 1%±1ms(Min:5ms,Max:60s) |
| General Specifications | ECC 890 |
| Display | 0.21" (5.5mm) LCD 2 × 12 Character Alphanumeric |
| Power | 9V Battery |
| Battery Life | 120+hrs Continuous use |
| Size | (80 × 147 × 40)mm, (3.15 × 5.8 × 1.6)inches |
| Weight | 350 g, (0.81 lb) |
| Models and Ordering | |
| Model | Description |
| 890 | X-Ray Meter Dose/Rate/Exposure Time |
| Optional Accessories | |
| 890RS | Remote Sensor - Allows operation of the dose meter up to 6 feet away from the x-ray head. This small sensor is connected to 890 through a cable. Great feature when working with phantoms. |
| 870HC | Hard Carrying Case |
