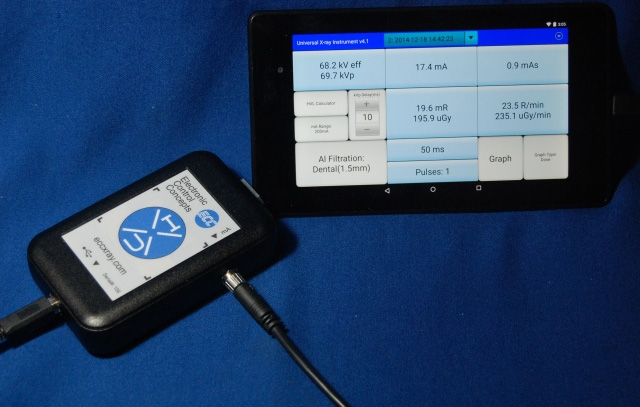

ECC Universal X-ray Intrument (UXI) All-purpose Meter
Compatible with Standard X-Ray and Intra-Oral Dental Equipment
Measures kV (effective and peak), mA, mAs, dose, dose rate, exposure time, pulses.
Includes a built in HVL Calculator, waveform graphing, and data export.
You can now save 1000 readings into an excel file at any given time, as well as scroll through previous readings.
Features
- Combines several instruments
- kVp
- mA and mAs
- dose
- x-ray detector and oscilloscope
- Easy to use
- No need to set for AC / DC
- Permits short exposure times
- Measures kVp, mA, mAs, dose and exposure time simultaneously
- kVp is noninvasive
- AC and DC x-rays
- High accuracy
- Battery operated
- One year warranty
- Compact size
- Durable ABS plastic case
- Hard carrying case included
Typical Applications
- Measurement of exposure
- Verification of peak x-ray voltage
- Constancy checks
- X-ray calibration
- Quality assurance
- Measurement of X-ray exposure time
- Half Value Layer determination
- Troubleshooting and repair of X-rays
|
kVp/kVe Specifications
|
UXI
|
UXI-L
|
|
Range |
45kVp=125kVp |
400kVp-120kVp |
|
Accuracy |
2%±kVp@25-100mA |
2%±kVp@10-50mA |
|
Recommended Minimum Exposure |
15ms |
15ms |
|
Current Specifications (mA/mAs) |
200mA Range |
2A Range |
|
Range |
0mA-200mA |
200mA-2A |
|
Accuracy |
2%±1mA |
2%±1mA |
|
Resolution |
0.1 mA/mAs |
1mA/mAs |
|
Minimum Exposure Time |
1ms |
1ms |
|
Input Impedance |
1Ω |
10Ω
|
|
Connector |
5m cable (Alligator Clips) |
5m cable |
|
Dose Specifications |
UXI/UXI-L |
|
Range (mRad/min, µGy/min) |
10R/min - 990R/min, 100mGy/min - 9900mGy/min |
|
Accuracy |
5%±1mR |
|
Exposure Time Accuracy |
1%±2ms(Min:1ms) |
|
General Specifications |
UXI/UXI-L |
|
Display |
7 inch (177.8 mm) Nexus Tablet |
|
Connection |
14 ft (4m) USB Cable |
|
Power |
Tablet Powered (5V) |
|
Battery Life |
5+hrs Continuous Use |
|
Size |
(150 x 120 x 58.8)mm, (5.9 x 4.7 x 2.3)inches |
|
Weight |
227g (0.5 lb) |
