Pro-Pinhole - Pro Project
05-701 - 0.010mm size
05-702 - 0.030mm size
05-703 - 0.075mm size
05-704 - 0.100mm size
The Pro-Pinhole phantom is the so called pinhole camera for accurate measurement of the focal spot size according to IEC 60336:2005. Its main advantages are repeatability, accuracy and possibility to measure the size of different focal spots.

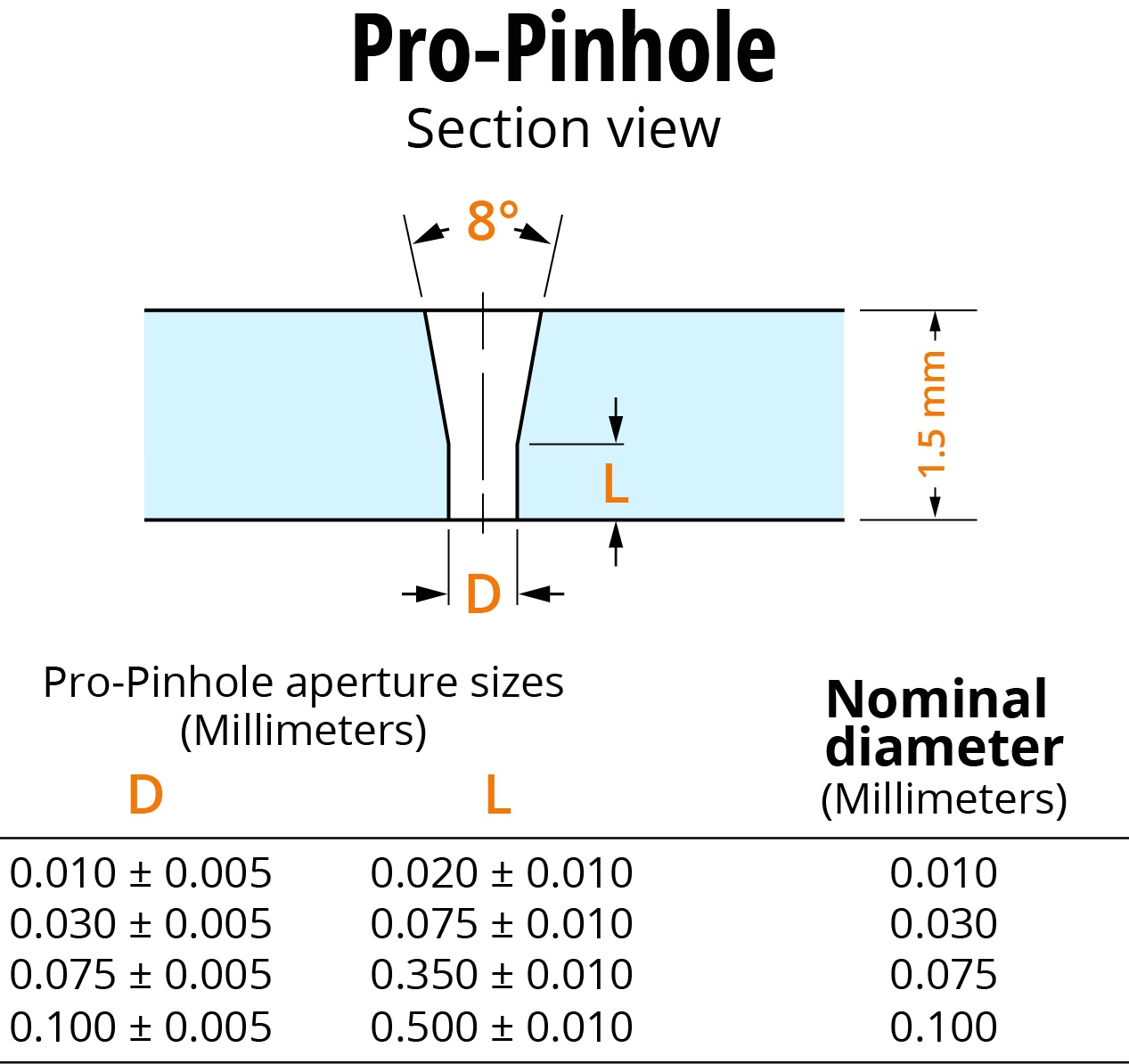

Technical data (can be modified to customer specifications):- diaphragm dimensions: Ø 5 x 1.5 mm
- diaphragm made from a 90:10 gold-platinum alloy
- four different pinhole diameters available (Choose one):
- 0.010 mm for focal spot sizes from 0.1 to 0.5 mm
- 0.030 mm for focal spot sizes from 0.5 to 1.0 mm
- 0.075 mm for focal spot sizes from 1.0 to 2.5 mm
- 0.100 mm for focal spot sizes above 2.5 mm

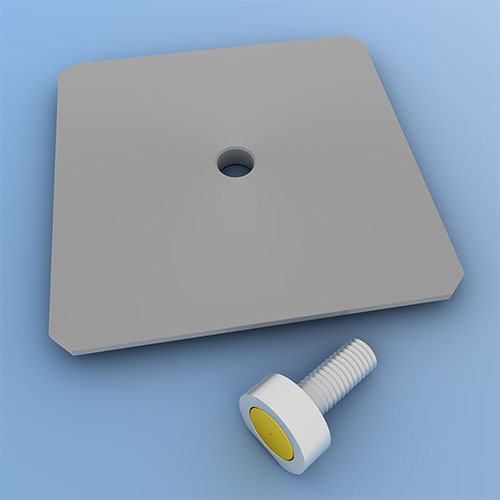

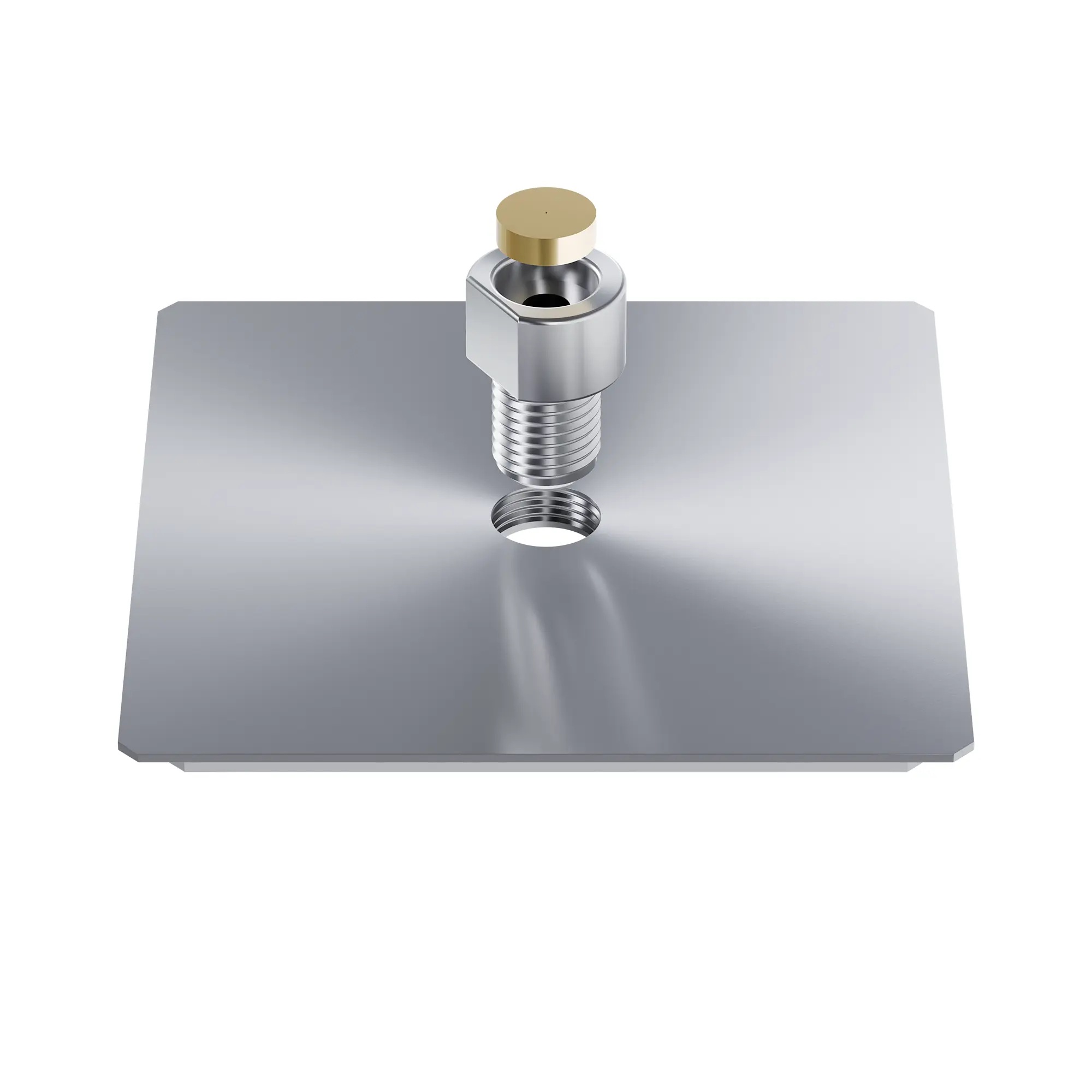

- Mounting screw
- Stainless steel mounting frame for Pro-Stand
- Optional Pro-Stand in a heavy duty carrying case with two layer foam inly
- Complies with:
- IEC 60336:2005
- IEC 61223-3-1, 2, 4
- EN 12543-2:2008
- CE certified
- The manual provides detailed guidelines for carrying out each test, results assessment and registration
| Models and Ordering | ||
| Item Number | Item Name | Item Description |
| 05-701 | Pro-Pinhole | Pinhole camera - 0.010mm |
| 05-702 | Pro-Pinhole | Pinhole camera - 0.030mm |
| 05-703 | Pro-Pinhole | Pinhole camera - 0.075mm |
| 05-704 | Pro-Pinhole | Pinhole camera - 0.100mm |
| Optional Accessories | ||
| 05-102 | Pro-Stand | Pro-Stand works with Pro-HVL, Pro-Slit, and Pro-Pinhole |
| 05-103 | Pro-Stand MAM | Slope adjustment piece to make Pro-Stand work for Mammography |
| 05-104 | Pro-Stand Align | Alignment Verification Tools for Pro-Stand |
| 05-105 | CASE for Pro-Stand | Optional Case for Pro-Stand |
