QUART Mammo Focal Spot Test Tool - 12301

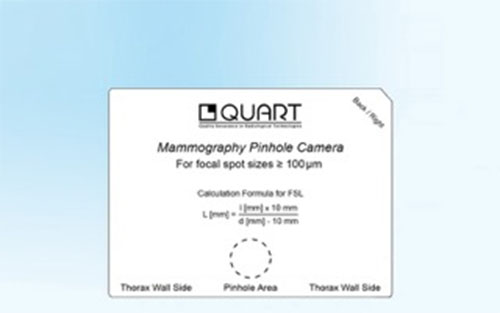

Pinhole Camera for Mammography
The QUART Pinhole Cameras are test tools designed to be used in conventional as well as digital mammographic x-ray applications for precise focal spot assessment.
The tools are designed to precisely measure both length and width of the effective focal spot size of x-ray equipment projected down the central ray in the x-ray field.
Contrary to a slit camera, both of these focal spot properties can be time-efficiently identified in only ONE exposure.
Technical Specifications- DIMENSION: 108 x 80 mm, marked pinhole area
- THICKNESS: 2.0 mm
- PINHOLE MASK: Metal foil w/ bead pattern
- Covered by 2 protective layers
- DETAILS: Can easily be fixed on the tube head due to light weight and compact size
