Pro-Fluo 150 - Pro-Project - 02-115

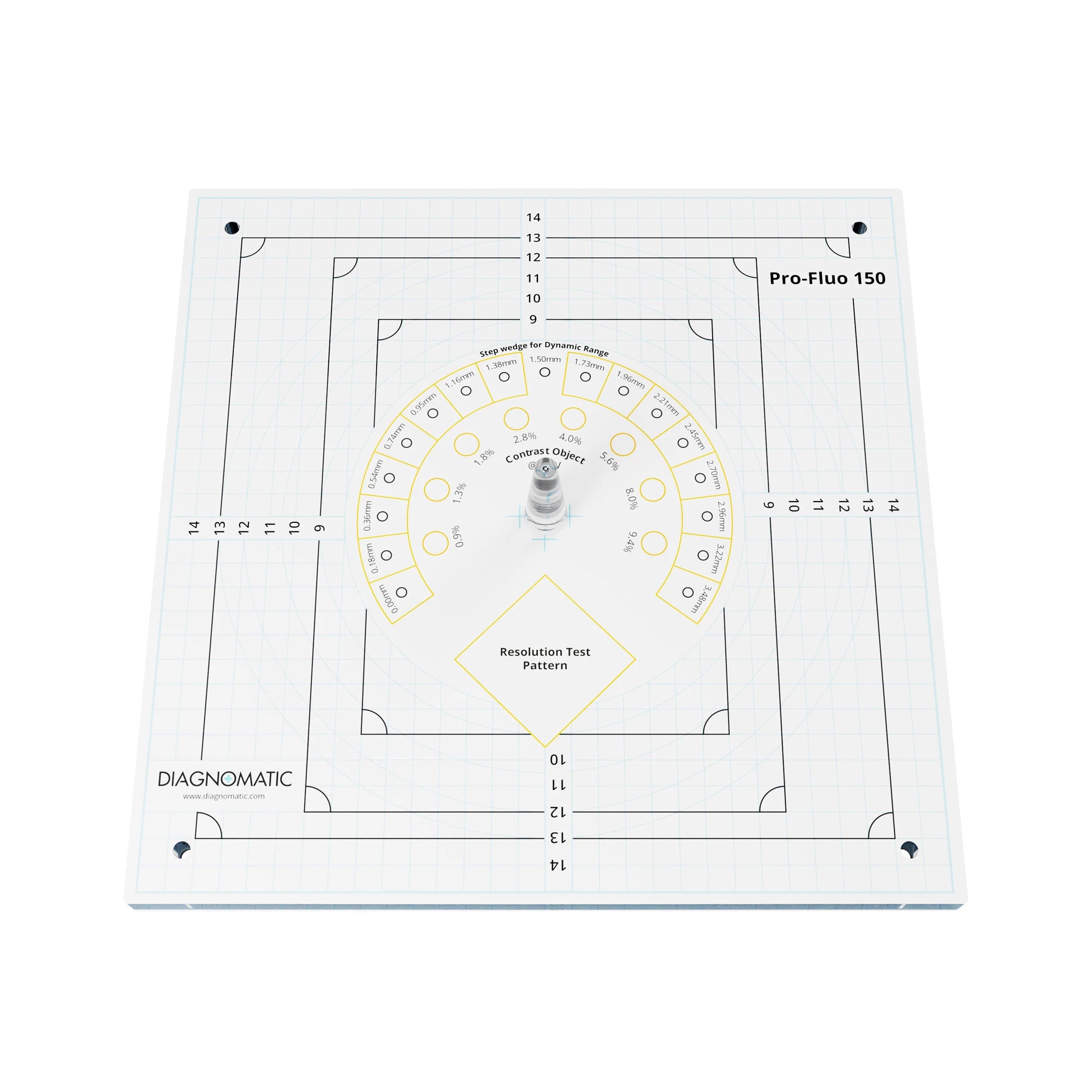

The Pro-Fluo 150 phantom is dedicated for acceptance and constancy tests of
radiography and fluoroscopy equipment according to the new DIN 6868-150 standard.
Works with Pro-Control.Online Software
The Pro-Fluo phantom measures:
- collimation / beam alignment
- position and size of the effective radiation field
- dynamic range
- spatial resolution
- contrast resolution
- homogeneity
- beam quality
- dimensions: 308 x 308 x 18.5mm
- 1.5mm thick copper plate with mesh pattern embedded in PMMA
- total PMMA thickness 17mm
- 17-step copper wedge (thickness 0.0mm to 3.48mm) with additional low contrast details (4mm diameter)
- 8 low contrast elements (10mm diameter)
- pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
- markings to determine the size and position of the effective radiation field
- optional cone for the perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
Product features:
- complies with:
- IEC 61223-3-1
- DIN 6868 – 150
- CE certified
- the Manual provides detailed guidelines for carrying out each test, results assessment and registration
Models and Ordering | ||
Item Number | Item Name | Item Description |
02-115 | Pro-Fluo 150 | Pro-Fluo 150 Square Test Object with Cone |
Optional Accessories | ||
02-301 | Pro-RF Rack | Phantom holder for Pro-Alpha, Pro-Digi and Pro-Fluo test phantoms |
Pro-Control.Online - Phantom Software |
