Pro-RF ChestCDRH - Pro-Project - 02-211
Compact and easy to use phantom designed to invoke a response of automatic-exposure. Follows the Center for Devices and Radiological Health (CDRH) specifications of a chest phantom and AAPM recommendations from Report No. 31 "Standardized Methods for Measuring Diagnostic X-Ray Exposure".
The adult chest phantom approximates a 173cm adult weighing approximately 165 lbs with an anterior-posterior (AP) thickness of about 23 cm. The anatomical region the phantom simulates is the lung field, and therefore contains an air gap within the center. The phantom is composed of polymethyl-methacrylate (PMMA).

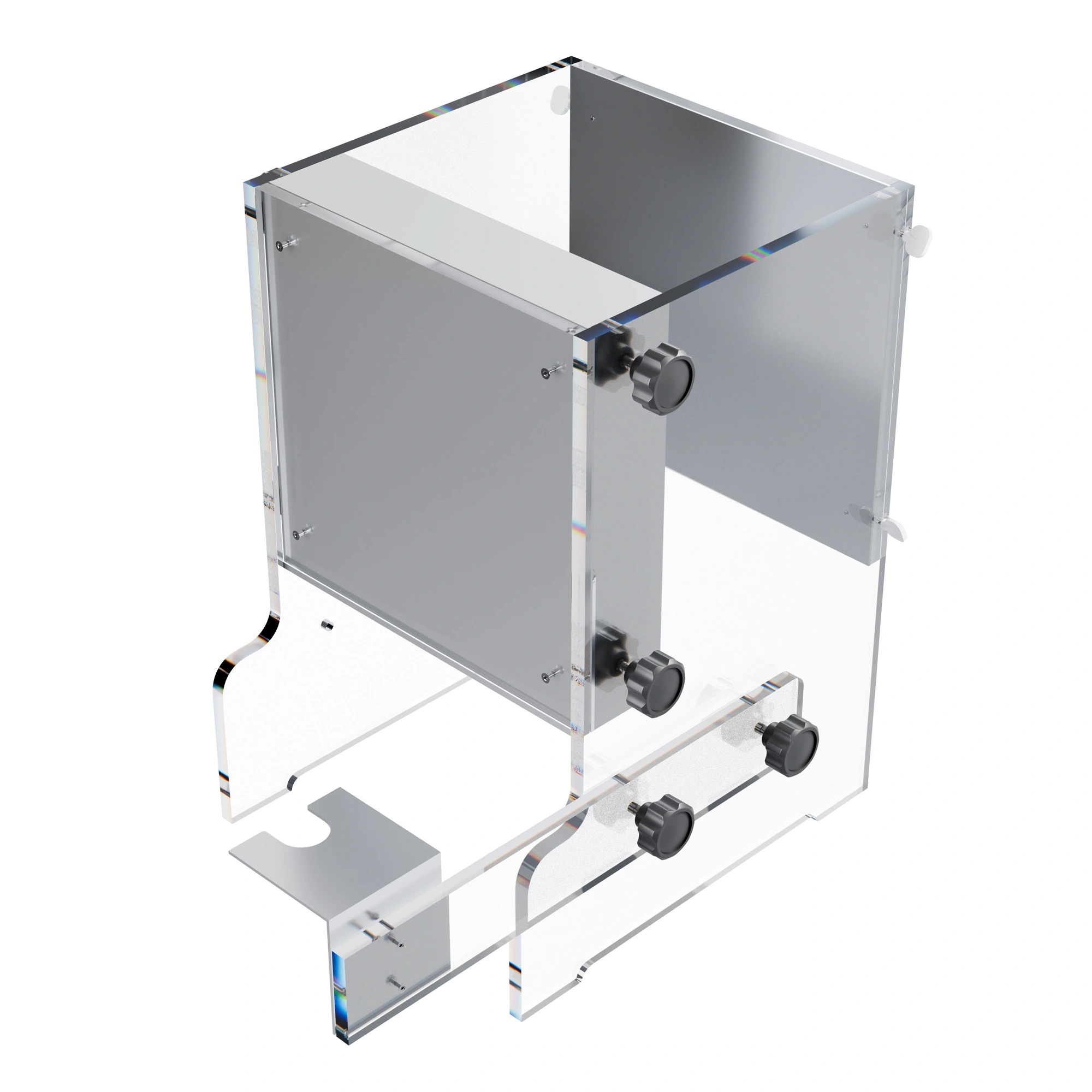

Technical data (can be modified to customer specifications):- set of acrylic and aluminium plates mounted on a frame with chamber holder
- approximates a 173cm adult weighing approximately 165 lbs with an anterior-posterior (AP) thickness of about 23cm
- 254x254mm pieces of 1100 alloy and clear PMMA with 19.0mm air gap
- the order of filters is: 9.5mm PMMA, 2.5mm Al, 54mm PMMA, 19.0mm Air, 1.6mm Al, 9.5mm PMMA
- heavy duty carrying case
- complies with:
- report No. 31 "Standardized Methods for Measuring Diagnostic X-Ray Exposure"
- CE certified
- the Manual provides detailed guidelines for carrying out each test, results assessment and registration
| Item Number | Description |
| 02-211 | Pro-RF ChestCDRH - Adult chest phantom |
