Pro-NM Performance SMALL - Pro-Project
08-111 - Standard
08-112 - With PET Lid

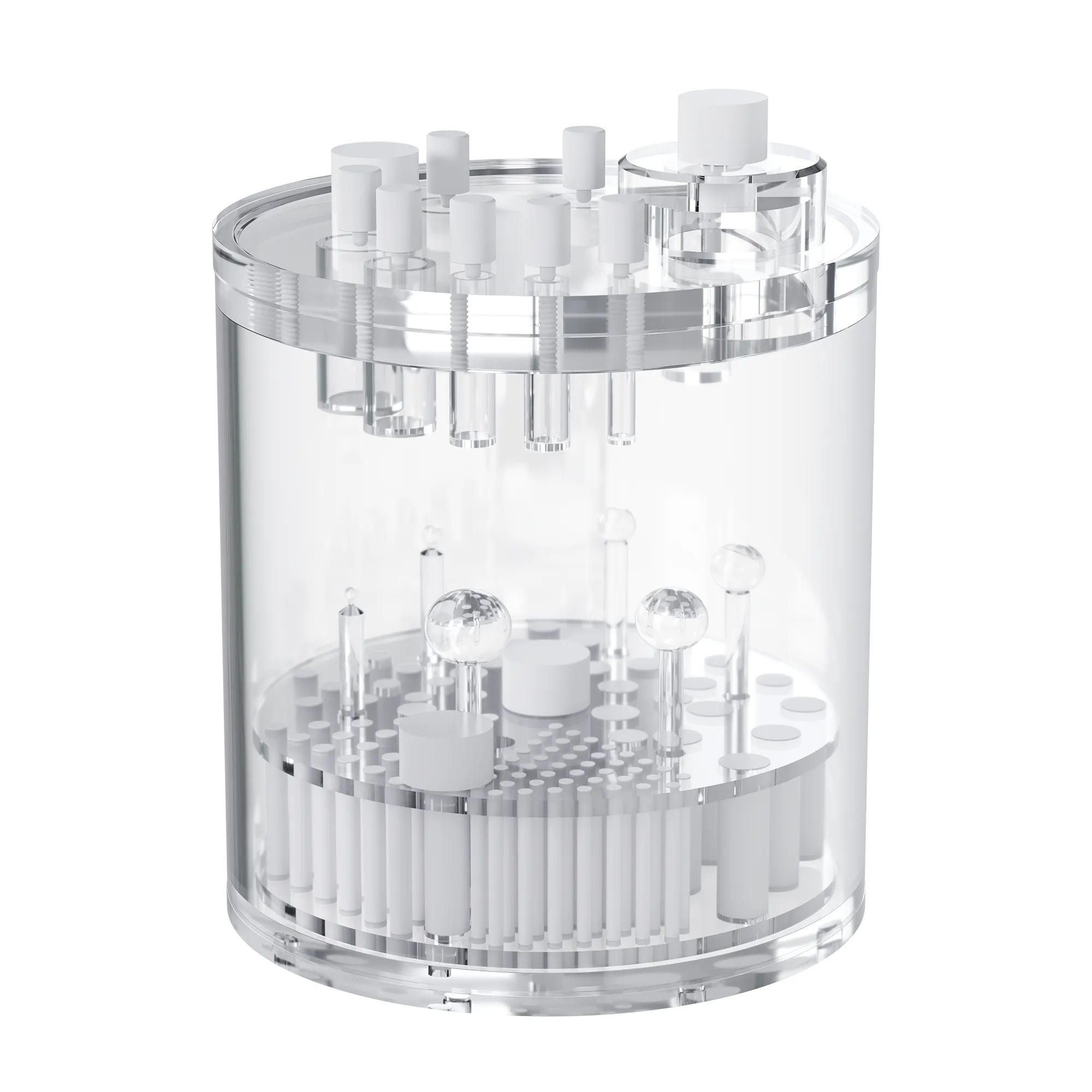

Phantom for small FOV NM and PET systems performance evaluation (collimator, artifacts, calibration, reconstruction parameters). Among other things, it can be used to evaluate: center-of-rotation error, non-uniformity artifacts, changes of radius-of-rotation on spatial resolution, reconstruction filters on spatial resolution, attenuation and scatter compensation.
Technical data (can be modified to customer specifications):- Main Cylinder:
- Inside cylinder diameter: 140 mm
- Inside cylinder height: 150 mm
- Cylinder wall thickness: 6 mm
- Cold Rods Insert:
- Rod diameters: 3.2, 4.8, 6.4, 7.9, 9.5 and 11.1mm
- Rod height: 40mm
- Cold Spheres:
- Solid sphere diameters: 3.2, 4.8, 9.5, 12.7, 15.9 and 19.1mm
- Height of the center of the spheres from the base plate: 78.5 mm
- Optional PET Lid with cylindrical samples:
- Refillable thin-walled cylinders, diameters: 4, 6, 8, 12, 16mm
- PTFE solid cylinder diameter: 16 mm
- Cylinder height: 25.4 mm
- Optional carrying case
- Complies with:
- NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
- AAPM Report No. 9 - Computer Aided Scintillation Camera Acceptance Testing
- AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
- ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
- CE certified
- The manual provides detailed guidelines for carrying out each test, results assessment and registration
| Item Number | Description |
| 08-111 | Pro-NM Performance SMALL - STANDARD |
| 08-112 | Pro-NM Performance SMALL - WITH PET LID |
