Pro-NM ResL
Gamma Camera Bar Phantom - Diagnomatic by Pro-Project - 08-303, 08-305

Pro-NM ResL from Diagnomatic by Pro-Project provides bar targets in two formats for scintillation camera resolution, linearity and field-size checks.

Click a photo or illustration to enlarge it.

Models and Ordering

• Four bar widths are combined in a single pattern, so all quadrants of the gamma camera are covered by one image per detector head
• Supports both extrinsic testing and intrinsic visual evaluation
• The pattern field covers the UFOV of large detectors
• Applicable to dual- and triple-head gamma cameras

Specifications

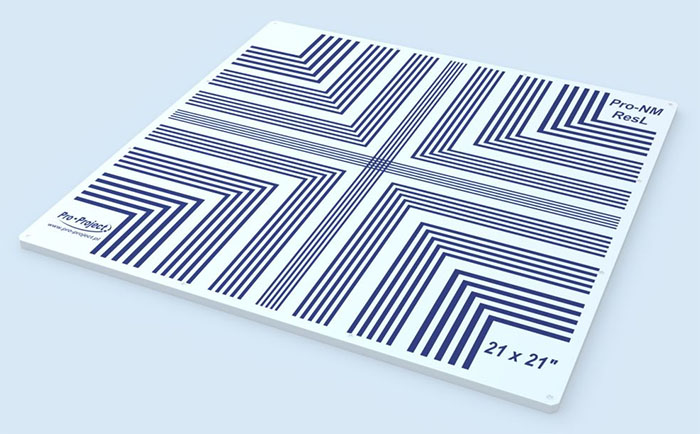

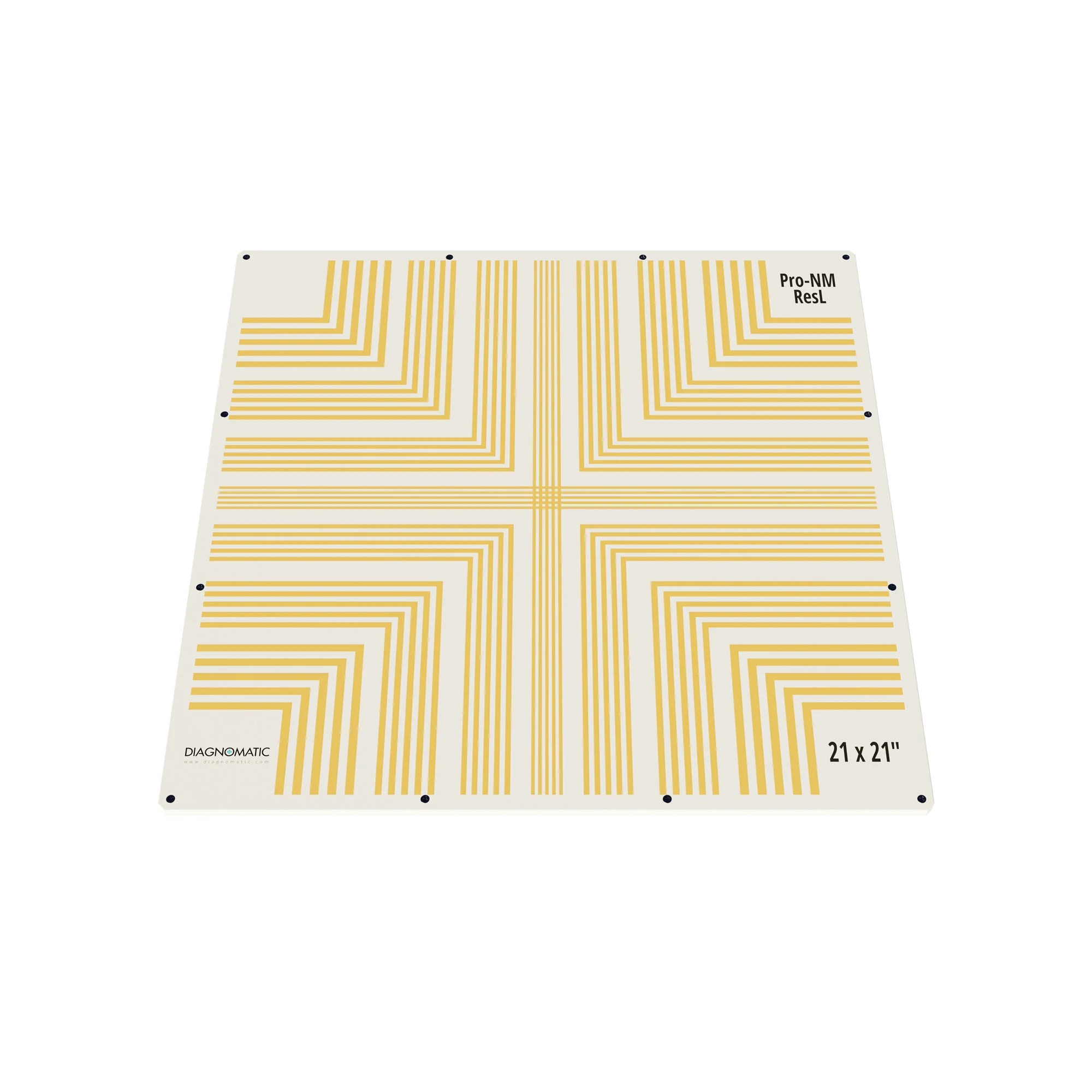

21” × 21”

• Outer dimensions: 553.4 × 553.4 × 15 mm
• Lead bar widths: 6.35 mm (1/4”), 4.763 mm (3/16”), 3.969 mm (5/32”), 2.54 mm (1/10”)
• Pattern field size: 533.2 mm (21”) × 533.2 mm (21”)

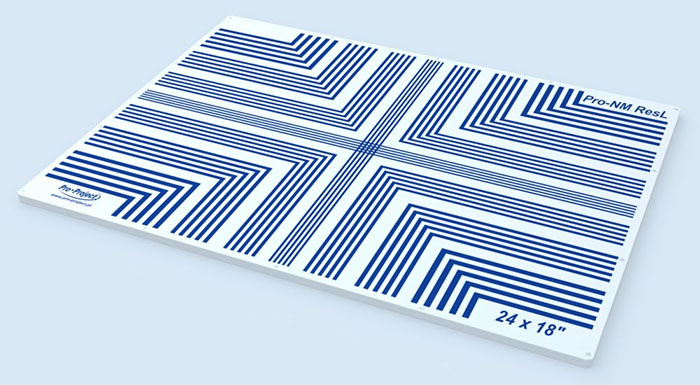

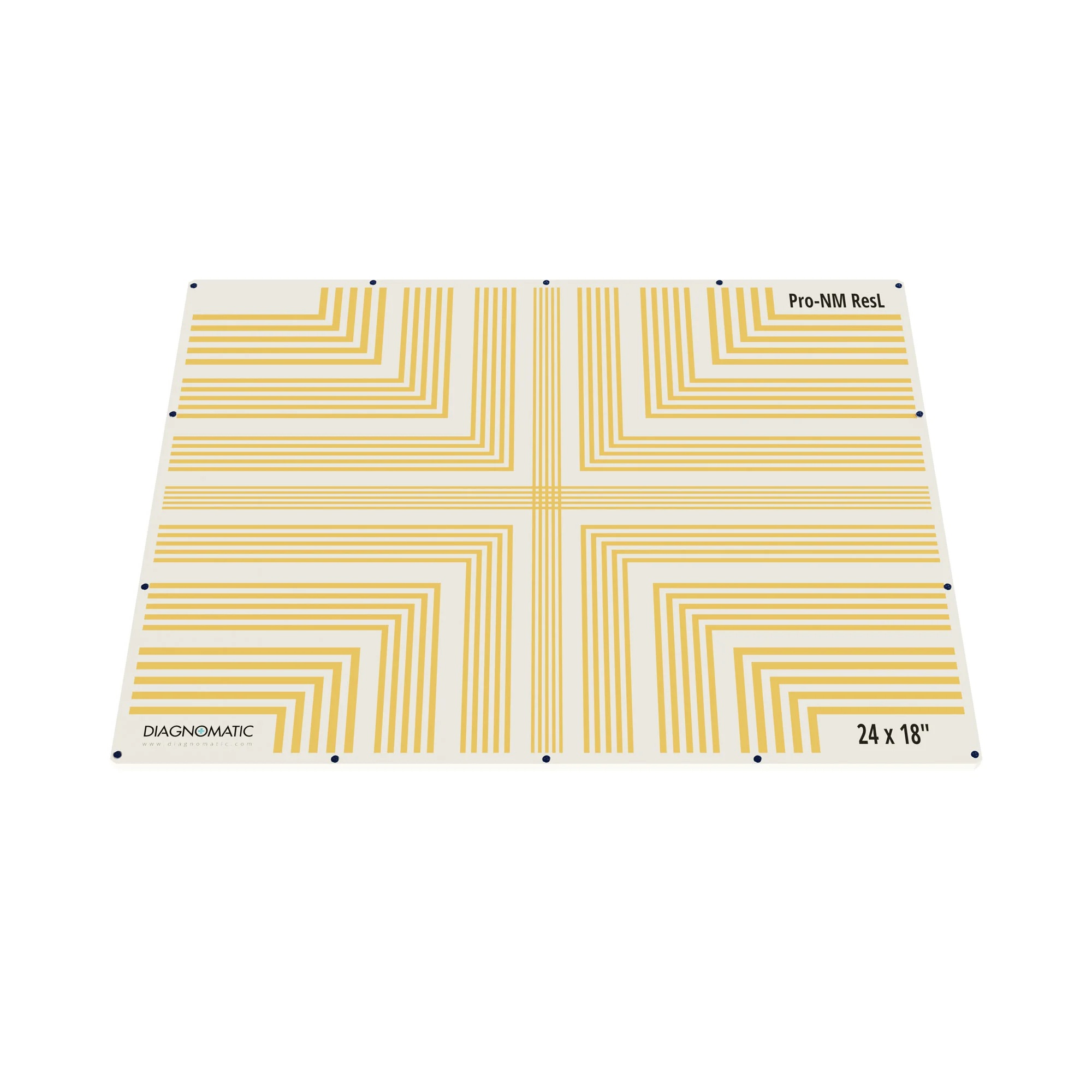

18” × 24”

• Outer dimensions: 629.6 × 477.2 × 15 mm
• Lead bar widths: 6.35 mm (1/4”), 4.763 mm (3/16”), 3.969 mm (5/32”), 2.54 mm (1/10”)
• Pattern field size: 447.2 mm (18”) × 609.6 mm (24”)

Other dimensions and configurations are available upon request.

Features and Test References

• complies with:
  - NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
  - AAPM Report No. 9 - Computer Aided Scintillation Camera Acceptance Testing
  - AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
  - ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
