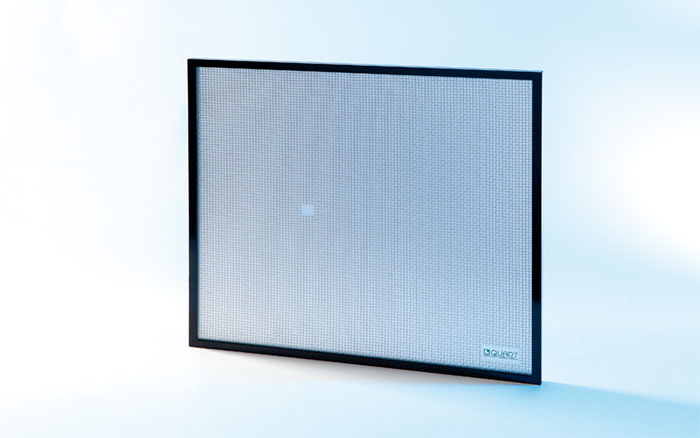

QUART KAT 43x45 - 13604
Screen Contact Test Tool
The QUART KAT 43 x 45 is used to check the screen contact at conventional radiography equipment with screen-film technology.
Poor screen contact would be revealed by variations in density on the developed film when evaluating the test image either visually or using a densitometer.
The test tools feature an open space to perform optical density (OD) measurements.
Technical Specifications- MESH DISTANCE: 3.2 mm
- WIRE: Ø 0.7 mm diameter
