QUART SFS Set - 12231
Test Set for Standard Fluoroscopy and Fluorography Systems
Six laminar test objects in a protective carrying case for image quality assessment of fluoroscopy and fluorography x-ray equipment according IPEM 91 regulations.

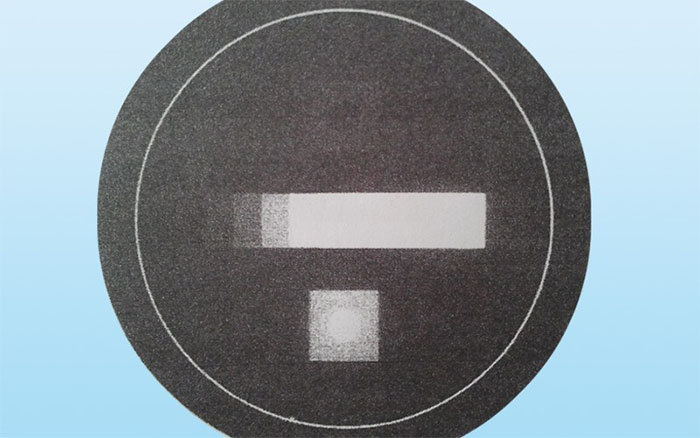

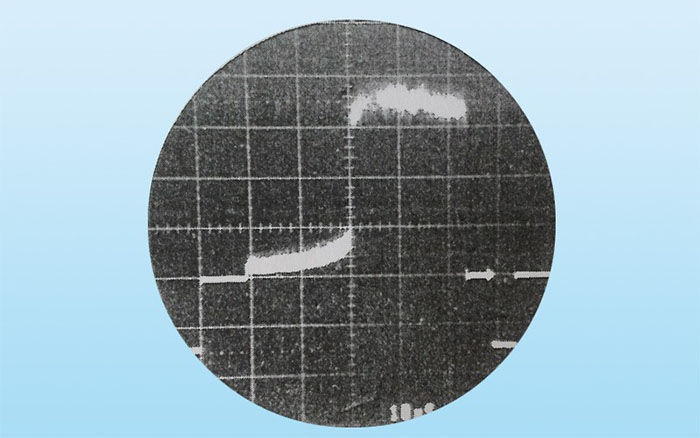

Technical Specifications- VS4 object to check peak white and black level in conjunction with an oscilloscope
- SW4 object for checking greyscale linearity (nominal 10% contrast steps), peak white and black level (2 detail objects) for adjustment of monitor brightness/contrast. Plus circular geometry test (for television scan linearity)

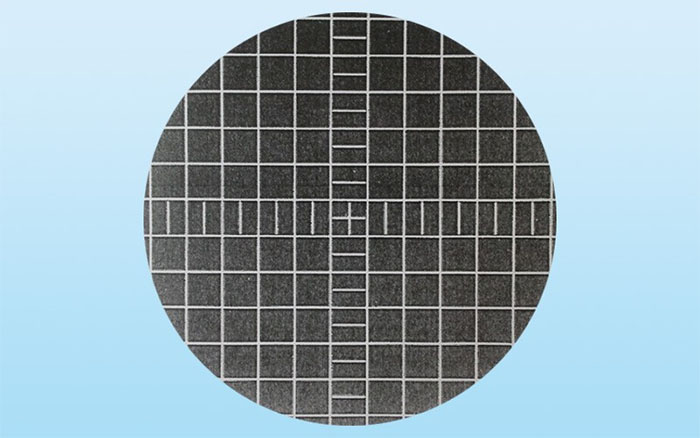

- FSG4 object for checking field size and geometry (10mm field size spacings, 20mm geometry spacings)
- Type 18 Line Pair Pattern (Resolution limit 0.5 to 5.0 lp/mm) to adjust electronic/optical focusing

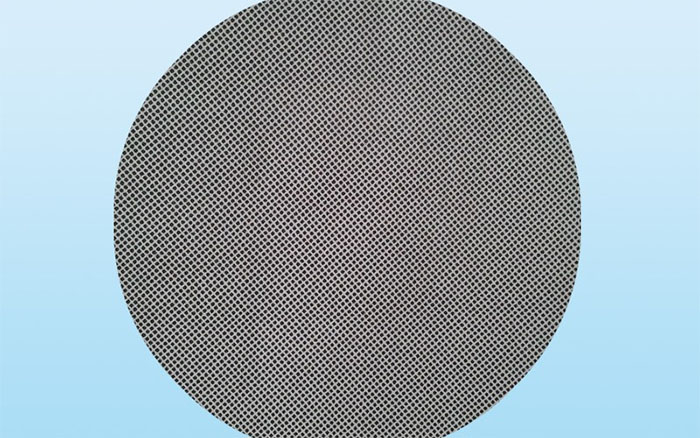

- SSM4 object for checking focal homogeneity over the image field (Spatial frequency 0.86 cycles mm-1)
- LCD4 object for checking low-contrast sensitivity (19 details, 11 mm in diameter, with a contrast range 14.8% to 0.42%) to quantify noise plus contrast loss
- TCD4 for threshold-contrast detail-detectability (108 details in 12 sizes, 9 contrasts) to plot the Contrast Detail Index for overall image quality
- Video cable with three connectors
- Additional Copper Filters (2x 0.5 mm, 1x 1.0 mm Cu) for beam calibration
- Peak White and Black Level
- Greyscale Linearity
- Monitor Brightness/Contrast
- Circular Geometry
- Field Size and Geometry
- High-Contrast Resolution
- Focal Homogeneity
- Low-Contrast Sensitivity
- Threshold-Contrast Detail-Detectability
- Beam Calibration
