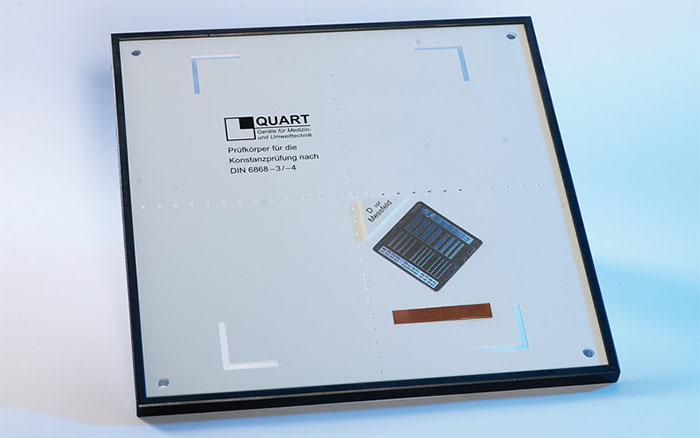

QUART SP vario - 12202
R+F Image QA Test Phantom
The QUART SP vario test phantom is designed for image QA/QC in film-screen based radiography.
It can also be used for basic resolution tests in digital x-ray imaging modalities using added filtration such as the QUART al25.0.
The phantom is free of planar grid structures, thus clearly revealing disturbing artefacts in the imaging chain.
The QUART SP vario complies with DIN 6868-3 and DIN 6868-4.
Technical Specifications- DYNAMIC STEP WEDGE: 7 Steps; thickness 0 – 1.6 mm.
- OPTICAL DENSITY: Test object in central position.
- HIGH-CONTRAST RESOLUTION: Line Pair Bar Pattern (Type 38 / Pb 0.05 mm / 45°).
- X-RAY FIELD ALIGNMENT: Field size markings for 24 x 18 cm standard FoV Flexible field size markings in 1.0 cm division.
- CENTER: Marker designed for use with QUART ZTB Beam Alignment tool.
- DESIGN: Plain structure for optimal artefact visibility.
- VERTICAL POSITIONING: Wire mount system available for tests of wall-mounted units.
- SIZE: 280 x 280 x 10 mm (L x W x H)
- Spatial Resolution
- Low-Contrast Resolution
- Radiation Field Alignment and Field Symmetry
- Image Homogeneity
- Optical Density
- Artefacts, Image Flaws, etc.
- Dose Indicator
