Resolution Test Patterns
Line Pair & Fan
Line-group tests have proven themselves in determining the visual resolution values. According to the system being proved, these tests are obtainable in various spatial frequency ranges and in different
steps.
For the testing of intensifying screens, tests are adequate whose line groups are arranged in only one direction: system errors in various directions are not to be expected, since the tests are laid
directly on the cassette, directional-dependent errors of geometry do not have an effect.
For image-transmission systems in which, because of the specific imaging errors different resolution values are to be expected in the tangential and meridional direction (for example in the I.I. systems),
it is advisable to use tests with line groups which lie close to one another and which are orientated perpendicular to one another.
To avoid false readings due to the so-called pseudo-sharpness, care must be taken that the recognizable number of test-group bars in the image agrees with that of the test. The besom test with its
continuously varying spatial frequency represents a special form of the group test. It advantage lies, above all, in the certain avoidance of reading errors as a consequence of pseudo- sharpness.
When using a scattered radiation grid, it must be taken into account that the line-groups are arranged, if possible, at an angle to the strips of the secondary radiation grid which is less than 45°, inorder to avoid moire effects.
We have highlighted the most popular models in yellow
Type 1
|
Overall Dimension:
|
110 x 40 mm
|
|
Resolution:
|
0.05 LP/mm - 4.86 LP/mm
|
|
Resolution Steps:
|
0.05 / 1.0 / 1.11 / 1.23 / 1.37 / 1.52 / 1.69 / 1.88 / 2.09 / 2.32 / 2.58 / 2.87 / 3.19 / 3.54 / 3.93 / 4.37 / 4.86
|
|
Number of Groups:
|
17
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
1-001
|
0.01
|
|
1-002
|
0.02
|
|
1-0025
|
0.025
|
|
1-003
|
0.03
|
|
1-005
|
0.05
|
|
1-008
|
0.08
|
1-010
(Formerly 07-501-1000)
|
0.1
|
|

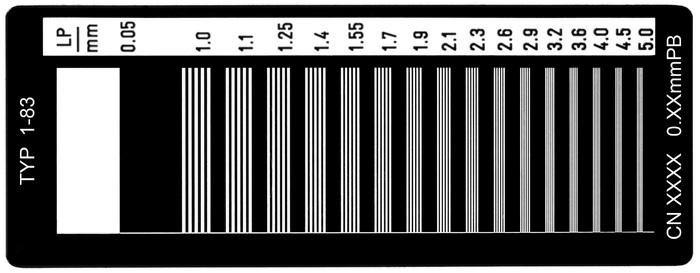

Type 1-83
|
Overall Dimension:
|
110 x 42 mm
|
|
Resolution:
|
0.05 LP/mm - 5 LP/mm
|
|
Resolution Steps:
|
0.05 / 1.0 / 1.1 / 1.25 / 1.4 / 1.55 / 1.7 / 1.9 / 2.1 / 2.3 / 2.6 / 2.9 / 3.2 / 3.6 / 4.0 / 4.5 / 5.0
|
|
Number of Groups:
|
17
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
1-83-001
|
0.01
|
|
1-83-002
|
0.02
|
|
1-83-0025
|
0.025
|
|
1-83-003
|
0.03
|
|
1-83-005
|
0.05
|
|
1-83-008
|
0.08
|
|
1-83-010
|
0.1
|
|

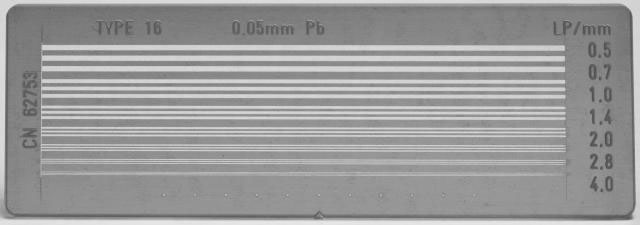

Type 16
|
Overall Dimension:
|
120 x 40 mm
|
|
Resolution:
|
0.05 LP/mm - 4.0 LP/mm
|
|
Resolution Steps:
|
0.5 / 0.7 / 1.0 / 1.4 / 2.0 / 2.8 / 4.0
|
|
Number of Groups:
|
7
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
16-001
|
0.01
|
|
16-002
|
0.02
|
|
16-0025
|
0.025
|
|
16-003
|
0.03
|
|
16-005
|
0.05
|
|
16-008
|
0.08
|
|
16-010
|
0.1
|
|
Type 17
|
Overall Dimension:
|
71 x 50 mm
|
|
Resolution:
|
0.177 LP/mm - 2 LP/mm
|
|
Resolution Steps:
|
0.177 / 0.21 / 0.25 / 0.30 / 0.35 / 0.42 / 0.5 / 0.6 / 0.71 / 0.84 / 1.0 / 2.0
|
|
Number of Groups:
|
12
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
17-001
|
0.01
|
|
17-002
|
0.02
|
|
17-0025
|
0.025
|
|
17-003
|
0.03
|
|
17-005
|
0.05
|
|
17-008
|
0.08
|
|
17-010
|
0.1
|
|
17-020
|
0.2
|
|
Type 18
|
Overall Dimension:
|
55 x 45 mm
|
|
Resolution:
|
0.5 LP/mm - 5 LP/mm
|
|
Resolution Steps:
|
0.5 / 0.56 / 0.63 / 0.71 / 0.8 / 0.9 / 1.0 / 1.12 / 1.25 / 1.4 / 1.6 / 1.8 / 2.0 / 2.24 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0
|
|
Number of Groups:
|
21
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
18-001
|
0.01
|
|
18-002
|
0.02
|
|
18-0025
|
0.025
|
|
18-003
|
0.03
|
|
18-005
|
0.05
|
|
18-008
|
0.08
|
|
18-010
|
0.1
|
|
Type 18a
|
Overall Dimension:
|
55 x 45 mm
|
|
Resolution:
|
0.5 LP/mm - 7.1 LP/mm
|
|
Resolution Steps:
|
0.5 / 0.56 / 0.63 / 0.71 / 0.8 / 0.9 / 1.0 / 1.12 / 1.25 / 1.4 / 1.6 / 1.8 / 2.0 / 2.24 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 5.6 / 6.3 / 7.1
|
|
Number of Groups:
|
24
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
18a-001
|
0.01
|
|
18a-002
|
0.02
|
|
18a-0025
|
0.025
|
|
18a-003
|
0.03
|
|
18a-005
|
0.05
|
|
Type 18b
|
Overall Dimension:
|
55 x 45 mm
|
|
Resolution:
|
0.5 LP/mm - 10 LP/mm
|
|
Resolution Steps:
|
0.5 / 0.56 / 0.63 / 0.71 / 0.8 / 0.9 / 1.0 / 1.12 / 1.25 / 1.4 / 1.6 / 1.8 / 2.0 / 2.24 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 5.6 / 6.3 / 7.1 / 8.0 / 8.9 / 10.0
|
|
Number of Groups:
|
27
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
18b-001
|
0.01
|
|
18b-002
|
0.02
|
|
18b-0025
|
0.025
|
|
18b-003
|
0.03
|
|
18b-005
|
0.05
|
|
Type 18c
|
Overall Dimension:
|
55 x 45 mm
|
|
Resolution:
|
0.5 LP/mm - 16.6 LP/mm
|
|
Resolution Steps:
|
0.5 / 0.56 / 0.63 / 0.71 / 0.8 / 0.9 / 1.0 / 1.12 / 1.25 / 1.4 / 1.6 / 1.8 / 2.0 / 2.24 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 5.6 / 6.3 / 7.1 / 8.0 / 8.9 / 10.0 / 11.1 / 12.5 / 14.3 / 16.6
|
|
Number of Groups:
|
31
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
18c-001
|
0.01
|
|
18c-002
|
0.02
|
|
18c-0025
|
0.025
|
|
18c-003
|
0.03
|
|
Type 18d
|
Overall Dimension:
|
55 x 45 mm
|
|
Resolution:
|
0.5 LP/mm - 20 LP/mm
|
|
Resolution Steps:
|
0.5 / 0.56 / 0.63 / 0.71 / 0.8 / 0.9 / 1.0 / 1.12 / 1.25 / 1.4 / 1.6 / 1.8 / 2.0 / 2.24 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 5.6 / 6.3 / 7.1 / 8.0 / 8.9 / 10.0 / 11.1 / 12.5 / 14.3 / 16.6 / 20.0
|
|
Number of Groups:
|
32
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
18d-001
|
0.01
|
|
18d-002
|
0.02
|
|
18d-0025
|
0.025
|
|
18d-003
|
0.03
|
|

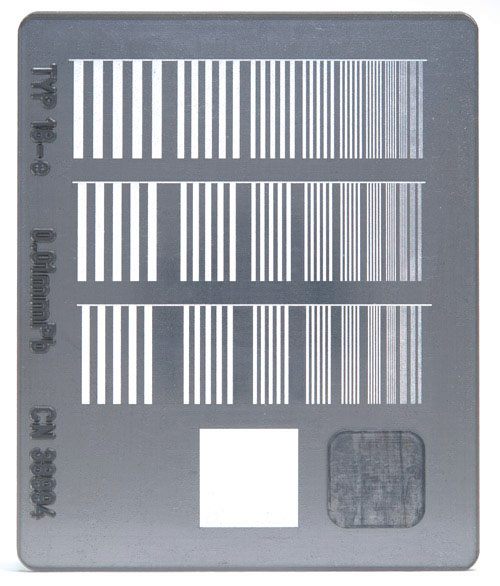

Type 18e
|
Overall Dimension:
|
55 x 45 mm
|
|
Resolution:
|
0.5 LP/mm - 14.3 LP/mm
|
|
Resolution Steps:
|
0.5 / 0.56 / 0.63 / 0.71 / 0.8 / 0.9 / 1.0 / 1.12 / 1.25 / 1.4 / 1.6 / 1.8 / 2.0 / 2.24 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 5.6 / 6.3 / 7.1 / 8.0 / 8.9 / 10.0 / 11.1 / 12.5 / 14.3
|
|
Number of Groups:
|
30
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
18e-001
|
0.01
|
|
18e-002
|
0.02
|
|
18e-0025
|
0.025
|
|
18e-003
|
0.03
|
|

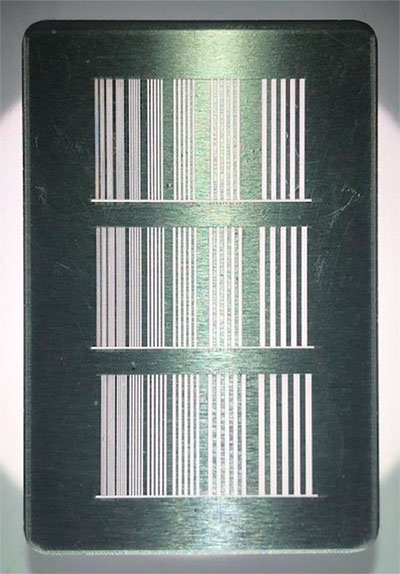

Type 70007
|
Overall Dimension:
|
55 x 45 mm
|
|
Resolution:
|
1 LP/mm - 16.6 LP/mm
|
|
Resolution Steps:
|
1.0 / 1.12 / 1.25 / 1.4 / 1.6 / 1.8 / 2.0 / 2.24 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 5.6 / 6.3 / 7.1 / 8.0 / 8.9 / 10.0 / 11.1 / 12.5 / 14.3 / 16.6 / 20.0
|
|
Number of Groups:
|
26
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
70007-001
|
0.01
|
|
70007-002
|
0.02
|
|
70007-003
|
0.03
|
|
Type 70353
|
Overall Dimension:
|
8 x 28 mm
|
|
Resolution:
|
5.0 LP/mm - 20.0 LP/mm
|
|
Resolution Steps:
|
5.0 / 6.0 / 7.0 / 8.0 / 9.0 / 10.0 / 11.0 / 12.0 / 13.0 / 14.0 / 15.0 / 16.0 / 17.0 / 18.0 / 19.0 / 20.0
|
|
Number of Groups:
|
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
70353-003
|
0.03
|
|
Type 2
|
Overall Dimension:
|
50 x 55 mm
|
|
Resolution:
|
0.25 LP/mm - 2 LP/mm
|
|
Resolution Steps:
|
0.25 / 0.30 / 0.35 / 0.42 / 0.5 / 0.6 / 0.71 / 0.84 / 1.0 / 2.0
|
|
Number of Groups:
|
10
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
2-001
|
0.01
|
|
2-002
|
0.02
|
|
2-0025
|
0.025
|
|
2-003
|
0.03
|
|
2-005
|
0.05
|
|
2-008
|
0.08
|
|
2-010
|
0.1
|
|
2-020
|
0.2
|
|
Type 21
|
Overall Dimension:
|
94 x 50 mm
|
|
Resolution:
|
2 LP/mm - 10 LP/mm
|
|
Resolution Steps:
|
2.0 / 2.25 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 5.6 / 6.3 / 7.1 / 8.0 / 9.0 / 10.0
|
|
Number of Groups:
|
16
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
21-001
|
0.01
|
|
21-002
|
0.02
|
|
21-0025
|
0.025
|
|
21-003
|
0.03
|
21-005
(Formerly 07-521)
|
0.05
|
|
Type 23
|

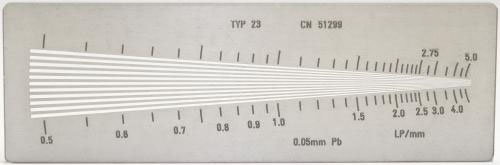

Overall Dimension:
|
155 x 50 mm
|
|
Resolution:
|
0.5 LP/mm - 5 LP/mm
|
|
Resolution Steps:
|
|
|
Number of Groups:
|
0
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
23-001
|
0.01
|
|
23-002
|
0.02
|
|
23-0025
|
0.025
|
|
23-003
|
0.03
|
|
23-005
|
0.05
|
|
23-008
|
0.08
|
23-010
(Formerly 07-523-1000)
|
0.1
|
|
Type 25
|
Overall Dimension:
|
95mm x 50mm
|
|
Resolution:
|
3.15 LP/mm - 16.6 LP/mm
|
|
Resolution Steps:
|
3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 6.3 / 7.1 / 8.0 / 9.0 / 10.0 / 11.1 / 12.5 / 14.3 / 16.6
|
|
Number of Groups:
|
15
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
25-001
|
0.01
|
|
25-002
|
0.02
|
|
25-0025
|
0.025
|
25-003
(Formerly 07-525)
|
0.03
|
|
Type 38
|
Overall Dimension:
|
50 x 50 mm
|
|
Resolution:
|
0.6 LP/mm - 5 LP/mm
|
|
Resolution Steps:
|
0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.4 / 1.6 / 1.8 / 2.0 / /2.2 / 2.5 / 2.8 / 3.1 / 3.4 / 3.7 / 4.0 / 4.3 / 4.6 / 5.0
|
|
Number of Groups:
|
20
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
38-001
(Formerly 07-527)
|
0.01
|
|
38-002
|
0.02
|
|
38-0025
|
0.025
|
|
38-003
|
0.03
|
38-005
(Formerly 07-535)
|
0.05
|
|
38-008
|
0.08
|
38-010
(Formerly 07-538)
|
0.1
|
|
Type 39
|
Overall Dimension:
|
60 x 30 mm
|
|
Resolution:
|
1.5 LP/mm - 20 LP/mm
|
|
Resolution Steps:
|
|
|
Number of Groups:
|
0
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
39-001
|
0.01
|
|
39-002
|
0.02
|
39-0025
(Fluke 07-539 &
Hologic TLS-00542)
|
0.025
|
|
39-003
|
0.03
|
|
Type 41
|
Overall Dimension:
|
50 x 50 mm
|
|
Resolution:
|
0.6 LP/mm - 3.4 LP/mm
|
|
Resolution Steps:
|
|
|
Number of Groups:
|
30
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
41-001
|
0.01
|
|
41-002
|
0.02
|
|
41-0025
|
0.025
|
|
41-003
|
0.03
|
|
41-005
|
0.05
|
|
41-008
|
0.08
|
41-010
(Formerly 07-541-1000)
|
0.1
|
|

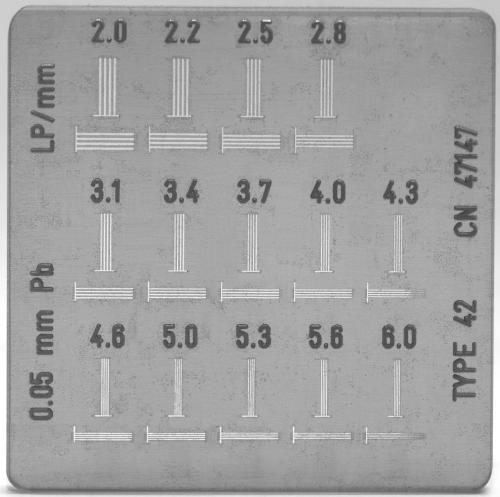

Type 42
|
Overall Dimension:
|
50 x 50 mm
|
|
Resolution:
|
2 LP/mm - 6 LP/mm
|
|
Resolution Steps:
|
|
|
Number of Groups:
|
28
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
42-001
|
0.01
|
|
42-002
|
0.02
|
|
42-0025
|
0.025
|
|
42-003
|
0.03
|
|
42-005
|
0.05
|
42-008
(Formerly 07-548)
|
0.08
|
|
Type 43
|
Overall Dimension:
|
50 x 50 mm
|
|
Resolution:
|
3.4 LP/mm - 10 LP/mm
|
|
Resolution Steps:
|
3.4 / 3.7 / 4.0 / 4.3 / 4.6 / 5.0 / 5.3 / 5.6 / 6.0 / 6.5 / 7.1 / 7.7 / 8.4 / 9.2 / 10.0
|
|
Number of Groups:
|
30
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
43-001
|
0.01
|
|
43-002
|
0.02
|
|
43-0025
|
0.025
|
|
43-003
|
0.03
|
|
43-005
|
0.05
|
|

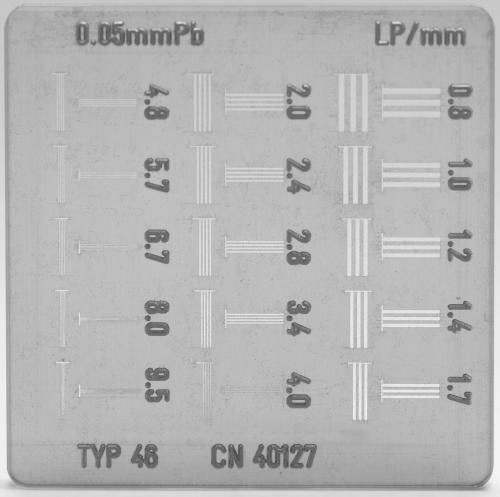

Type 46
|
Overall Dimension:
|
50 x 50 mm
|
|
Resolution:
|
0.8 LP/mm - 9.5 LP/mm
|
|
Resolution Steps:
|
0.8 / 1.0 / 1.2 / 1.4 / 1.7 / 2.0 / 2.4 / 2.8 / 3.4 / 4.0 / 4.8 / 5.7 / 6.7 / 8.0 / 9.5
|
|
Number of Groups:
|
15
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
46-001
|
0.01
|
|
46-002
|
0.02
|
|
46-0025
|
0.025
|
|
46-003
|
0.03
|
|
46-005
|
0.05
|
|
Type 4a
|
Overall Dimension:
|
50 x 50 mm
|
|
Resolution:
|
0.5 LP/mm - 8 LP/mm
|
|
Resolution Steps:
|
0.5 / 0.7 / 1.0 / 1.4 / 2.0 / 2.8 / 4.0 / 5.6 / 8.0
|
|
Number of Groups:
|
9
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
4a-001
|
0.01
|
|
4a-002
|
0.02
|
|
4a-0025
|
0.025
|
|
4a-003
|
0.03
|
|
4a-005
|
0.05
|
|
Type 4c
|
Overall Dimension:
|
50 x 50 mm
|
|
Resolution:
|
1.4 LP/mm - 8 LP/mm
|
|
Resolution Steps:
|
1.4 / 1.6 / 1.8 / 2.0 / 2.24 / 2.5 / 2.8 / 3.15 / 3.55 / 4.0 / 4.5 / 5.0 / 5.6 / 6.3 / 7.1 / 8.0
|
|
Number of Groups:
|
16
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
4c-001
|
0.01
|
|
4c-002
|
0.02
|
|
4c-0025
|
0.025
|
|
4c-003
|
0.03
|
|
4c-005
|
0.05
|
|

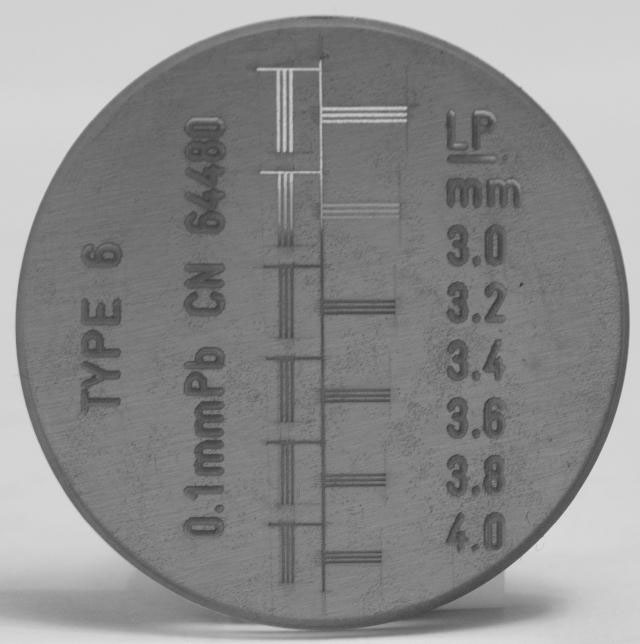

Type 6
|
Overall Dimension:
|
|
|
Resolution:
|
3 LP/mm - 4 LP/mm
|
|
Resolution Steps:
|
3.0 / 3.2 / 3.4 / 3.6 / 3.8 / 4.0
|
|
Number of Groups:
|
6
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
6-001
|
0.01
|
|
6-002
|
0.02
|
|
6-0025
|
0.025
|
|
6-003
|
0.03
|
|
6-005
|
0.05
|
|
6-008
|
0.08
|
|
6-010
|
0.1
|
|
Type 73-NRT
|
Overall Dimension:
|
12 x 24 mm
|
|
Resolution:
|
|
|
Resolution Steps:
|
2.0 / 3.0 / 4.0 / 5.5 / 7.0 / 8.5 / 10.0 / 11.1 / 12.5 / 14.3 / 16.6 / 20.0 LP/mm.
|
|
Number of Groups:
|
12
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
73-NRT
|
|
|

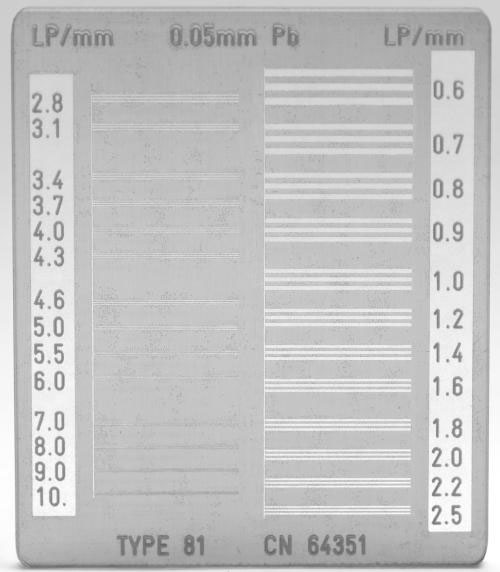

Type 81
|
Overall Dimension:
|
65 x 55 mm
|
|
Resolution:
|
0.6 LP/mm - 10 LP/mm
|
|
Resolution Steps:
|
|
|
Number of Groups:
|
26
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
81-001
|
0.01
|
|
81-002
|
0.02
|
|
81-0025
|
0.025
|
|
81-003
|
0.03
|
81-005
(Formerly 07-526)
|
0.05
|
|
Type 82
|
Overall Dimension:
|
80 x 40 mm
|
|
Resolution:
|
1.5 LP/mm - 10 LP/mm
|
|
Resolution Steps:
|
|
|
Number of Groups:
|
0
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
82-001
|
0.01
|
|
82-002
|
0.02
|
|
82-0025
|
0.025
|
|
82-003
|
0.03
|
82-005
(Formerly 07-515)
|
0.05
|
|
Type 84
|
Overall Dimension:
|
|
|
Resolution:
|
0.6 LP/mm - 5 LP/mm
|
|
Resolution Steps:
|
0.6 / 0.7 / 0.85 / 1.0 / 1.2 / 1.4 / 1.7 / 2.0 / 2.3 / 2.6 / 3.0 / 3.4 / 3.8 / 4.2 / 4.6 / 5.0
|
|
Number of Groups:
|
16
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
84-001
|
0.01
|
|
84-002
|
0.02
|
|
84-0025
|
0.025
|
|
84-003
|
0.03
|
|
84-005
|
0.05
|
|
84-008
|
0.08
|
|
84-010
|
0.10
|
|
