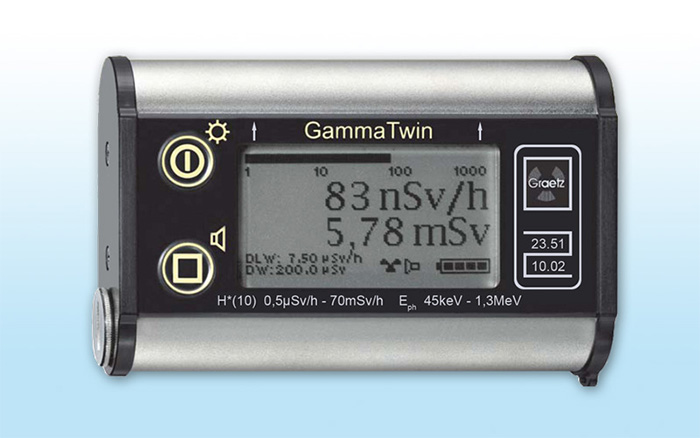

QUART Gamma Twin
Compact Dose Rate Meter
The Gamma Twin is a PTB-approved dose rate meter for the measurement of gamma radiation and X-rays for ambient dose rate equivalent p*(10) and ambient dose equivalent H*(10) (local dose).
It features an energy compensated Geiger-Müller-tube detector in a compact casing with a large backlit LC-display.
The meter provides selectable simultaneous or separate indication of dose and dose rate together with an analog dose rate logarithmic bar graph. Four preset dose and dose rate alarm thresholds are available. Upon request, the alarm thresholds can be configured to customer requirements. In addition, the meter has switchable acoustic single-pulse indication, automatic and continuous storage of the dose into a non-voltile memory, storage of the dose and of set parameters even at battery change. IP54 protection class (splash proof).
Technical SpecificationsGeneral Features
- Temperature range: -20 °C up to +60 °C
- Power supply: 2 batteries 1.5 V (type AAA)
- Acoustic alarm: 80 dB(A) measured at 30 cm distance
- PTB-Approval No.: 23.51 / 10.02
- Dimensions: (26 x 66 x 103) mm
- Weight: 190 g incl. batteries)
- Dose rate indication range: 0 nSv/h – 70 mSv/h
- Dose rate measuring range: 0.5 Sv/h – 70 mSv/h
- Dose indication range: 0 nSv – 1.0 Sv
- Dose measuring range: 0.5 Sv – 1.0 Sv
- Energy range: 45 keV – 1.3 MeV
- Dose rate alarm thresholds: 7.5 Sv/h, 25 Sv/h, 40 Sv/h, 300 Sv/h
- Dose alarm thresholds: 200 Sv, 500 Sv, 1000 Sv, 2000 Sv
