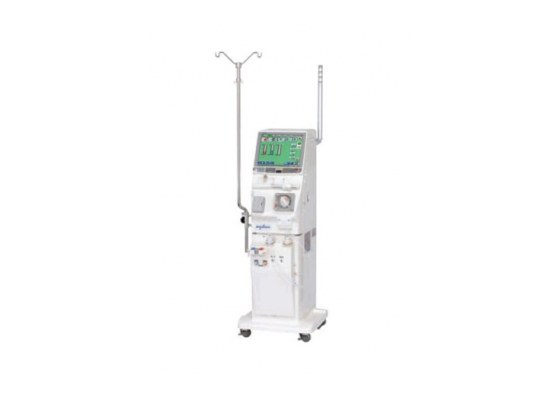

Nikkiso DBB-27 Hemodialysis Machine
Trivitron Healthcare
The Nikkiso DBB-27 is a volume-controlled hemodialysis machine with a color touch display, patient treatment-setting storage and continuous monitoring of treatment components.
- Volume-controlled hemodialysis.
- Treatment-setting storage for up to 16 patients.
- Continuous monitoring of pumps and valves during treatment.
- Self-test functions for the extracorporeal blood circuit, hydraulic circuit and CPU before treatment.
- Blood, air-bubble and blood-tubing-line detectors.
| Specification | Details |
|---|---|
| Model / series | DBB-27 |
| Dimensions (H × W × D) | 122 × 30 × 37 cm |
| Weight, standard system | Approximately 60 kg |
| Weight, system with all options | Approximately 80 kg |
| Power supply | AC single phase; 110 V or 220–240 V; 50/60 Hz ±1 Hz |
| Water supply pressure | 70–300 kPa |
| Water supply temperature | 10–30°C |
| Dialysate flow rate | 300–700 mL/min |
| Dialysate temperature | 33–40°C |
| Blood-pump flow rate | 40–600 mL/min |
| Disinfection method | Chemical, heat, or citric acid/heat |
Optional accessories
- Concentrate-nozzle rinse.
- Blood-pressure monitor.
- Network connection.
- Blood-volume monitor.
- Dialyzer inlet blood-pressure monitoring.
- Sodium infuser.
