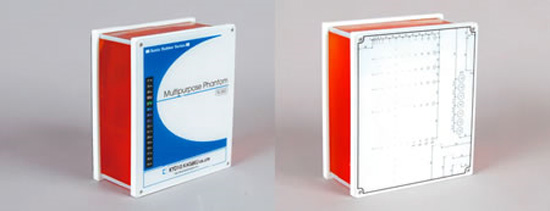

Multipurpose Ultrasound Phantom Kyoto Kagaku N-365
Comparable to ATS 539 - Inquire for details!

Ultrasound QA Phantoms are designed for assessment and calibration of ultrasound probes and other devices. Kyoto Kagaku original unique phantom material is stable and long-life and shows excellent homogeneous granular background reflection.

Useful both for daily assessment and further research. Gray scale for contrast evaluation, cyst targets with non-resonance cylinders, line targets for geometrical evaluation, close range (dead zone) resolution, axial and angular resolution are prepared for scanning. The phantom is designed to allow scanning from all four side walls.

Specifications
Material: Urethane elastomer, acrylic, nylon

Acoustic Features:
  • Sonic Velocity: 1440m/sec at 25°C
  • Rate of decrease: 0.57 dB/cm MHz at 25°C
  • Acoustic impedance: 1.38Rayl at 25°C
Set includes:
1 phantom each
1 carrying case each

Phantom size:
19 x 22 x 7 cm, 3.6 kg

Packing size:
35 x 36 x 24cm, 6kg

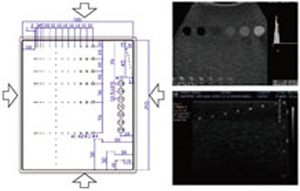

Multipurpose Ultrasound Phantom Kyoto Kagaku N-365 Ultrasound Image and Target Diagram
