Lumbar Training Phantom CIRS 034
For Interventional Pain Management
The Model 034 Epidural Pain Management Training Phantom provides a realistic puncture practice phantom for use with fluoroscopic image guidance.
Phantom contains realistic anatomy to facilitate eye / hand coordination in a training environment.
Phantom can also be imaged under CT, MR, and ultrasound.
Features
- Anthropomorphic L-spine anatomy
- Self sealing puncture membrane
- Ligamants, spinal cord, discs, 0 skin, and soft tissues have differing softness to permit trainee to "feel" the way to the injection site.
Practice
- Lumbar epidural
- Caudal epidural
- Facet and nerve blocks
- Sacroiliac joint injection
- Lumbar diskography
Anatomical Details:
- Ilium
- Sacroliac Joint
- Sacrum plus L2 through L5
- Superspinous ligament
- Interspinous ligament
- Ligamentum flavum
- Discs - Anulus fibrosis and nucleus pulposis
Purpose and use of the phantom
The Model 034 Lumbar Training Phantom provides a realistic puncture practice tool for use with fluoroscopic image guidance.

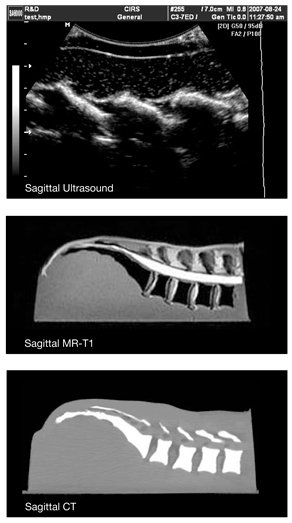

While the shape, size and the various tissues are designed for imaging under fluoroscopic guidance, the phantom capabilities have been also extended to CT, Ultrasound and MRI.

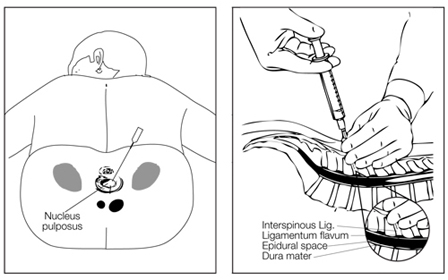

The realistic anatomy of the phantom facilitates hand-eye coordination. Training for sacroiliac joint injection, lumbar and caudal epidurals, diskograms, block nerves, facet blocks can be implemented.
Ligaments, spinal cord, discs, skin and the simulated soft tissue have differing softness to allow trainees to "feel" their way through to the injection.
![]() Note:
|
![]() |
