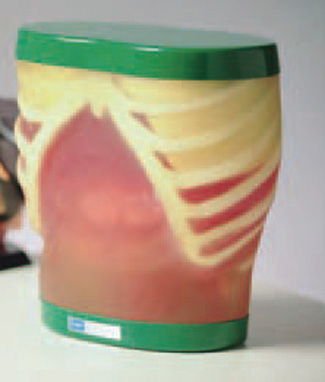

ECHOZY Kyoto Kagaku 41900-019-USA
Ultrasound Examination Training Model
(No Pathologies)
Upper abdomen organs with approximate-to-human echogenicities. State-of-art anatomy fullfills medical sonographers’ high requirements. Unique long-life phantom materials.
- Inanimate tool for training of a novice or demonstration of technique by an expert.
- Any ultrasound device with a convex probe can be used
- Detailed hepatobiliary, pancreatic and other abdominal anatomy meeting requirement for excellent training.
- Eight Couinaud’s hepatic segments can be localized.
- Near real-size organs and structures.
- Durable long-life phantom materials.
Embedded organs: Chest bones, lungs, liver (segmental anatomy, portal and hepatic venous systems, ligamentum teres and ligamentum venosum), biliary tract (gallbladder, cystic duct, intrahepatic and extrahepatic bile ducts), pancreas (pancreatic duct), spleen, kidneys, detailed vascular structures (aorta, vena cava, celiac artery and its branches, portal vein and its branches, superior mesenteric vessels, renal vessels, etc).
Materials: urethane elastomer
 |
 |
| 41900-010-USA |
ECHOZY Ultrasound Phantom (NO Pathologies) |
Includes: 1 Ultrasound Phantom "ECHOZY" 2 Silicon sheets & 1 set of positioning pillow 1 Talcum powder 1 Carrying case size: 18 x 25 x 28 h cm, 12 kg |
| 41900-000 | ECHOZY abdominal training set |
Includes: ECHOZY set & ECHOZOU anatomical model 30 x 70 x 50cm, 20 Kg |
ECHOZOU Kyoto Kagaku 11224-000
Internal Organ Anatomical Model
Separates into 20 parts:
- Hepatic segment S1: caudate lobe
- Hepatic segment S2: upper left lateral segment
- Hepatic segment S3: lower left lateral segment
- Hepatic segment S4: left medial segment
- Hepatic segment S5: lower right anterior segment
- Hepatic segment S6: lower right posterior segment
- Hepatic segment S7: upper right posterior segment
- Hepatic segment S8: upper right anterior segment
- Portal vein, Bile duct and Hepatic vein
- Gallbladder
- Pancreas
- Spleen
- Right kidney
- Left kidney
- Abdominal aorta
- Inferior vena cava
- Hepatic veins
- Spinal column
- Stomach
- Large intestine, Small intestine
Detailed anatomy with approximate-to-human echogenicities. Organs are based on cadaver mold and then modeled to realize the anatomy correctly under ultrasound scanning. The phantom posture is designed to make the depth of the organs from the probe close to that in clinical setting. Echo-Zou, a disassemblable anatomical model of the relevant organs facilitates three-dimensional understanding of sectional images.
Materials: UrathaneAnatomical model”ECHO-ZOU” 11224-000, size: 16 x 23 x 16H cm, 2.9 kg
|
|
|
|
|
